ENGINE COVER

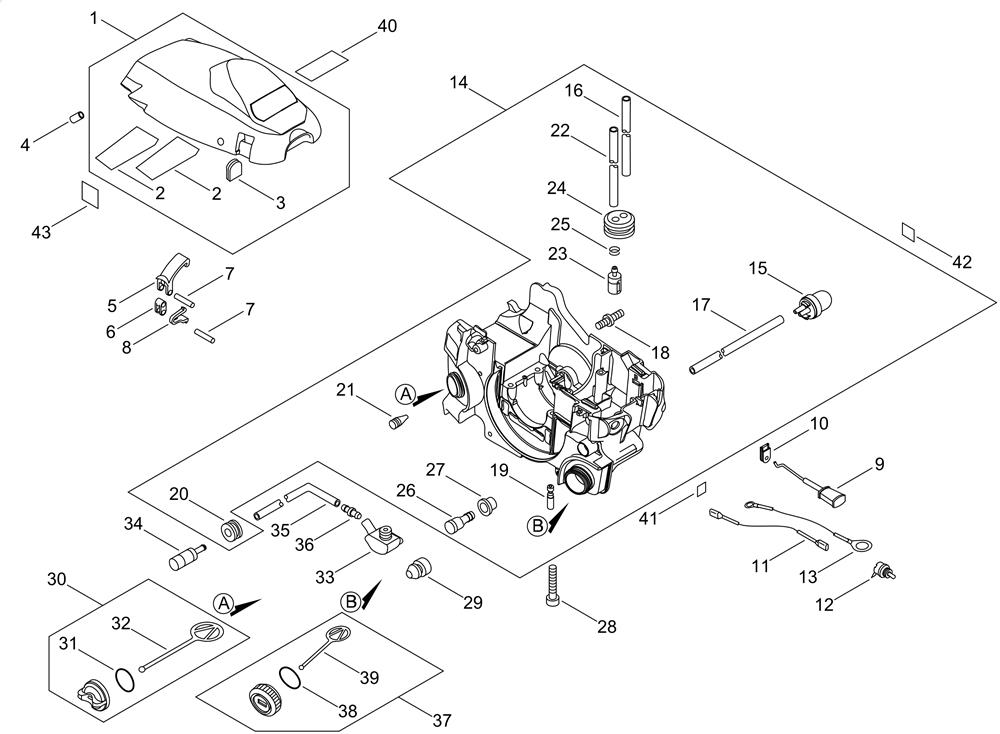

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
005	EC-C463-000100	KNOB , LATCH	£3.00	Add to
006	EC-J485-000200	HINGE	£4.01	Add to
007	EC-V622-000070	PIN , STRAIGHT 4	£1.96	Add to
008	EC-V490-000400	CLIP	£2.17	Add to
009	EC-A241-000150	KNOB , CHOKE	£10.72	Add to
011	EC-V485-001080	LEAD	£4.80	Add to
012	EC-A440-001190	SWITCH , ON OFF	£12.26	Add to
013	EC-V485-001070	LEAD	£4.80	Add to
014	EC-P100-007270	ENGINE COVER ASY	£109.87	Add to
015	6685139	PRIMING PUMP COMP	£22.43	Add to
016	EC-V471-001561	PIPE	£3.35	Add to
018	EC-V225-000031	BOLT , STUD 8	£4.49	Add to
019	EC-C022-000190	AUTO-OILER ASY	£53.37	Add to
020	EC-132115-01462	GROMMET	£2.52	Add to
021	EC-436114-13930	VALVE , CHECK	£7.85	Add to
022	EC-V471-002171	PIPE	£4.93	Add to
023	EC-A369-000420	STRAINER , FUEL	£9.69	Add to
024	EC-132115-44331	GROMMET, FUEL	£3.70	Add to
025	EC-V490-001240	CLIP	£2.17	Add to
026	EC-A356-000031	VALVE, CHECK	£7.37	Add to
027	EC-V137-000001	GROMMET , FUEL	£2.66	Add to
028	EC-V805-000180	BOLT , TORX 5	£2.16	Add to
029	EC-V420-001790	CUSHION	£3.21	Add to
030	EC-P021-005581	OIL CAP ASY	£8.77	Add to
031	EC-900720-00018	O-RING 18	£2.16	Add to
032	EC-A365-000050	CONNECTOR, CAP	£3.21	Add to
033	EC-V470-000810	PIPE	£3.71	Add to
034	EC-436205-02832	STRAINER , OIL	£8.89	Add to
035	EC-130110-05261	PIPE	£5.24	Add to
036	EC-V186-000510	JOINT , PIPE	£2.52	Add to
037	EC-P021-037920	FUEL CAP ASY	£10.12	Add to
038	EC-V581-000610	O-RING	£2.16	Add to
039	EC-A365-000050	CONNECTOR, CAP	£3.21	Add to
042	EC-X524-001901	LABEL	£3.35	Add to
