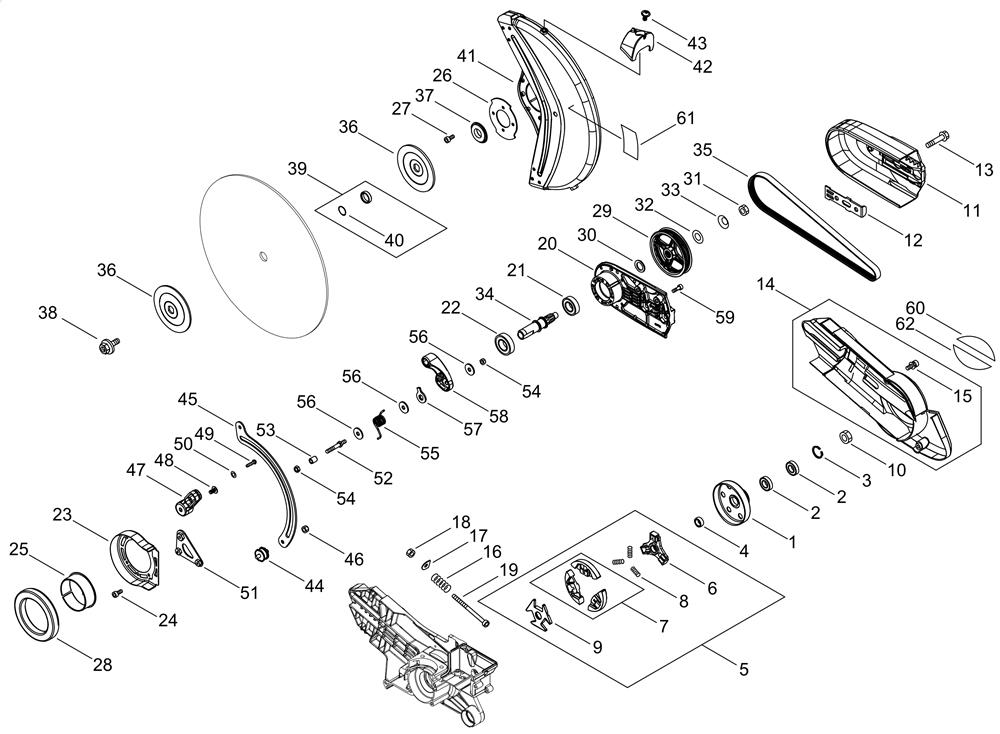

CLUTCH, ARM COVER

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001EC-A556-001690DRUM , CLUTCH£47.07 Add to
002EC-V592-000440BEARING , BALL£10.43 Add to
003EC-92419-24000C RING£2.17 Add to
005EC-A056-000850CLUTCH ASSY£62.34 Add to
006EC-A552-000480CLUTCH HUB£15.93 Add to
007EC-P021-052700CLUTCH£18.06 Add to
008EC-A566-000210SPRING£3.35 Add to
009EC-A552-000300CLUTCH BOSS£6.27 Add to
010EC-V265-000560NUT£7.37 Add to
011EC-C361-000360COVER , CUTTER ARM£16.53 Add to
013EC-V205-001231BOLT£16.53 Add to
014EC-P100-006950COVER , CUTTER ARM KIT£28.75 Add to
016EC-V450-001240COIL SPRING£3.70 Add to
017EC-V304-000290WASHER£2.17 Add to
018EC-V264-000190NUT£17.26 Add to
019EC-V204-001680BOLT£5.85 Add to
020EC-P021-052710CASING£62.34 Add to
021EC-900812-06202BEARING£18.24 Add to
022EC-900812-06203BEARING , BALL£9.69 Add to
023EC-C235-000070CASE , SPRING£15.01 Add to
024EC-V203-002210BOLT , 5£2.16 Add to
025EC-V583-000210SLIDE RING£4.32 Add to
026EC-C371-000160PLATE , CUTTER COVER£8.89 Add to
027EC-V203-002210BOLT , 5£2.16 Add to
028EC-V583-000470RING£9.99 Add to
034EC-C504-001260SHAFT , DRIVE£31.82 Add to
035EC-V196-000120DRIVE BELT£28.63 Add to
036EC-C365-000430FLANGE , CUTTER£15.01 Add to
037EC-V360-000320COLLAR , 18£27.23 Add to
038EC-P100-001640BOLT ASY£16.53 Add to
039EC-P021-035070COLLAR SET£7.85 Add to
041EC-P100-006930COVER CUTTER ASY£186.76 Add to
043EC-V204-001820BOLT£2.52 Add to
044EC-V402-000110CUSHION£16.53 Add to
045EC-C371-000050SLIDE PLATE£20.99 Add to
047EC-C442-000100STOPPER , HAND GUARD£8.90 Add to
048EC-V204-001820BOLT£2.52 Add to
049EC-900256-04016SCREW£1.62 Add to
050EC-92204-04000WASHER£2.17 Add to
051EC-C371-000170PLATE , CUTTER COVER£10.43 Add to
055EC-V452-001820SPRING , TORSION£3.90 Add to
057EC-M613-000320KNOB£3.21 Add to
058EC-E151-000030KNOB LEVER£4.01 Add to
059EC-V203-002210BOLT , 5£2.16 Add to
