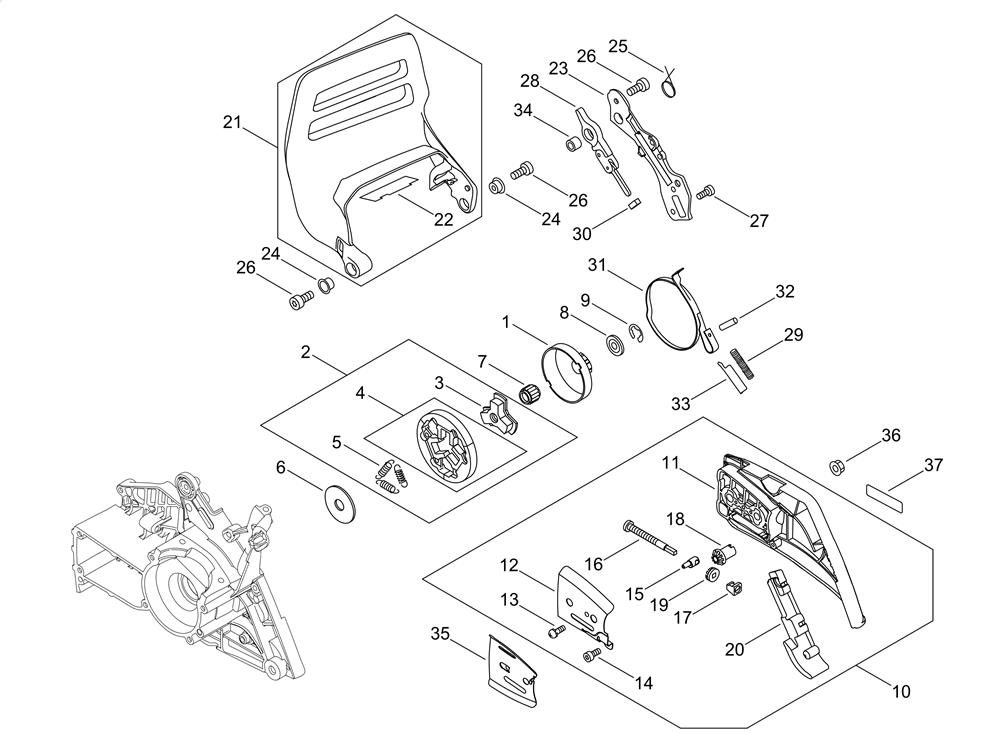

CHAIN BRAKE

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
002	EC-A056-000221	CLUTCH ASY	£64.13	Add to
004	EC-P021-007051	CLUTCH SHOE SET	£35.77	Add to
005	EC-V451-000500	SPRING , TENSION	£4.49	Add to
006	EC-A551-000110	PLATE , CLUTCH	£5.10	Add to
007	EC-V555-000010	BEARING , NEEDLE 10	£13.36	Add to
009	EC-V583-000440	RING	£1.96	Add to
010	EC-P021-050780	GUARD , SPROCKET ASY	£58.28	Add to
012	EC-C305-000101	PLATE , SPROCKET GUARD	£9.20	Add to
014	EC-V804-000000	BOLT TORX 4	£2.16	Add to
015	EC-C309-000160	CHAIN TENSIONER	£6.03	Add to
016	EC-V203-002140	BOLT	£6.93	Add to
017	EC-V355-000800	COLLAR , 8	£2.16	Add to
018	EC-V651-001040	GEAR , BEVEL	£16.71	Add to
019	EC-V651-001050	GEAR , BEVEL	£8.46	Add to
021	EC-P100-002880	BRAKE LEVER ASY	£31.82	Add to
023	EC-C345-000283	COVER , BRAKE	£8.17	Add to
024	EC-V356-000440	COLLAR , 10	£2.66	Add to
025	EC-V452-000400	SPRING , TORSION	£3.35	Add to
026	EC-V805-000000	BOLT, TORX 5	£2.17	Add to
027	EC-V804-000000	BOLT TORX 4	£2.16	Add to
028	EC-C334-000111	CONNECTOR , BRAKE	£13.79	Add to
029	EC-V450-000740	SPRING , COMPRESSION	£5.85	Add to
030	EC-V376-000450	SPACER	£2.17	Add to
031	EC-C328-000121	BRAKE BAND	£21.12	Add to
032	EC-93050-30098	ROLLER	£1.97	Add to
033	EC-C603-000220	PLATE , SIDE	£3.35	Add to
034	EC-V356-000470	COLLAR , 10	£4.92	Add to
035	EC-C305-000111	PLATE , SPROCKET GUARD	£9.20	Add to
036	EC-V265-000200	NUT	£3.00	Add to
037	EC-X502-000340	LABEL , ECHO	£3.70	Add to
