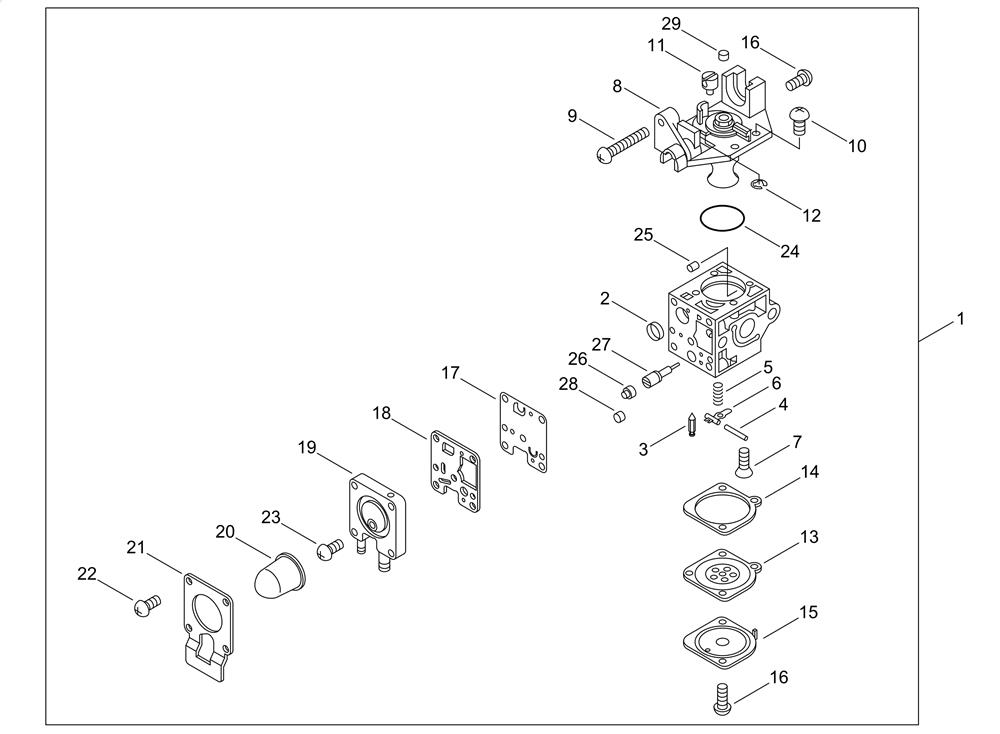

CARBURETOR

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	EC-A021-001742	CARBURETOR , DIAPHRAGM	£99.02	Add to
002	EC-P005-000010	STRAINER	£3.70	Add to
003	EC-125337-08260	VALVE, INLET NEEDLE	£10.91	Add to
004	EC-125338-13930	PIN, METERING ARM	£3.92	Add to
006	EC-125323-08260	ARM, VALVE	£6.02	Add to
007	EC-125339-42030	SCREW	£3.92	Add to
008	EC-P005-002070	COVER ASY , ROTOR	£61.01	Add to
010	EC-125344-13931	SCREW	£3.35	Add to
013	EC-P005-002230	DIAPHRAGM METERING	£18.05	Add to
014	EC-P005-000200	GASKET, METERING	£3.70	Add to
015	EC-125342-52130	COVER, DIAPHRAGM	£9.51	Add to
016	EC-125344-52130	SCREW	£3.35	Add to
017	EC-P005-000510	DIAPHRAGM, PUMP	£10.43	Add to
018	EC-P005-000520	GASKET, PUMP	£5.85	Add to
019	EC-P005-001890	BASE , ASY PRIMER	£32.42	Add to
020	EC-P005-003110	PUMP, PRIMER	£7.37	Add to
022	EC-P005-001900	SCREW	£3.21	Add to
023	EC-P005-000270	SCREW	£3.70	Add to
025	EC-P005-001000	ROLLER, GUIDE	£4.01	Add to
028	EC-P005-001270	PLUG, H ADJUST SCREW	£3.35	Add to
