CARBURETOR

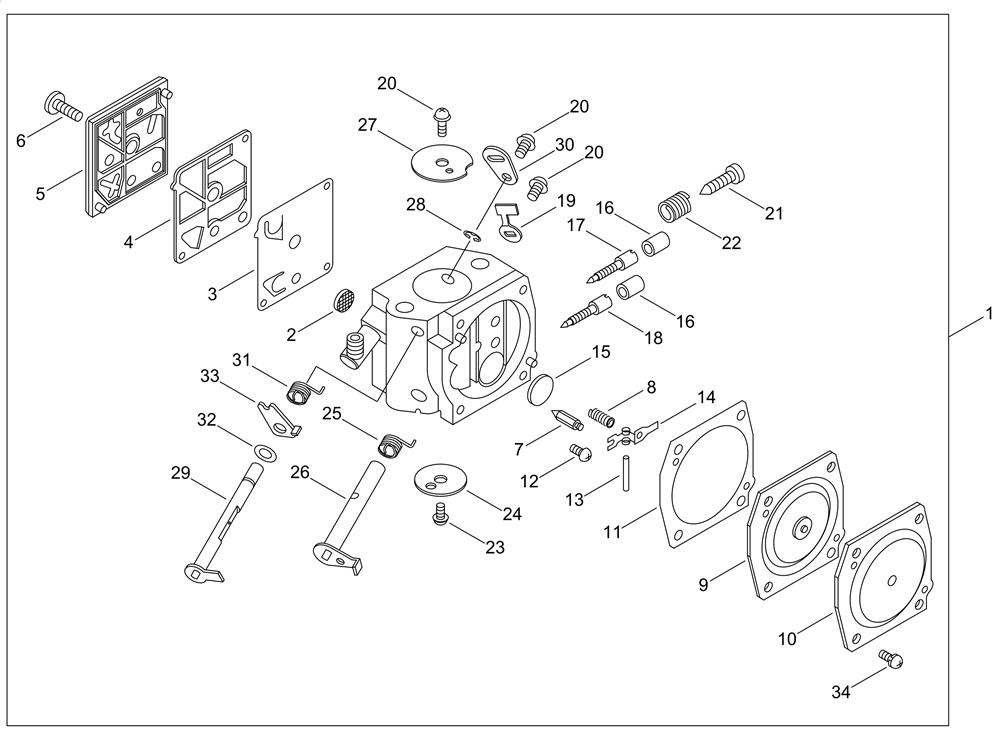

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
002	EC-123126-10631	SCREEN, INLET	£3.21	Add to
003	EC-123112-12330	DIAPHRAM , FUEL PUMP	£10.44	Add to
004	EC-123125-12330	GASKET , FUEL PUMP	£5.85	Add to
007	EC-123137-19830	VALVE, INLET NEEDLE	£10.12	Add to
009	EC-P003-004920	DIAPHRAGM ASY	£18.06	Add to
011	EC-123140-16130	GASKET , M. DIAPHRAGM	£4.01	Add to
013	EC-123138-03930	PIN, METERING LEVER	£3.21	Add to
015	EC-123146-10631	PLUG, WELCH	£3.57	Add to
016	EC-P003-000010	LIMITER CAP	£4.33	Add to
020	EC-123114-38830	SCREW	£3.21	Add to
021	EC-123134-04260	SCREW , IDLE ADJUST	£3.71	Add to
022	EC-123133-04260	SPRING, IDLE ADJUST	£3.70	Add to
023	EC-P003-002380	SCREW	£3.21	Add to
025	EC-P003-000560	SPRING , THROTTLE RETURN	£4.19	Add to
028	EC-123127-15030	RING	£2.03	Add to
