CARBURETOR

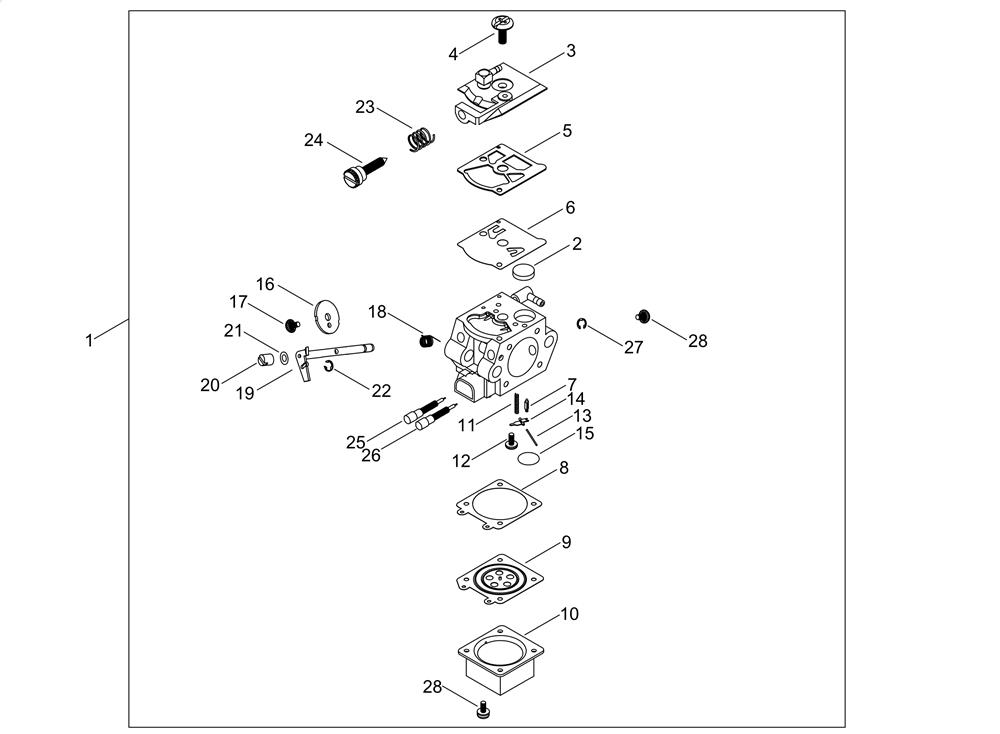

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	EC-A021-004610	CARBURETOR , DIAPHRAGM	£128.88	Add to
002	EC-123126-10631	SCREEN, INLET	£3.21	Add to
003	EC-P003-003930	COVER , FUEL PUMP	£14.88	Add to
005	EC-123125-15030	GASKET, FUEL PUMP	£5.85	Add to
006	EC-P003-006270	DIAPHRAGM , FUEL PUMP	£6.76	Add to
007	EC-123137-19830	VALVE, INLET NEEDLE	£10.12	Add to
008	EC-123140-03930	GASKET , M.DIAPHRAGM	£4.01	Add to
009	EC-P003-001850	DIAPHRAGM, METERING	£18.06	Add to
010	EC-123142-03930	COVER , M , DIAPHRAGM	£7.25	Add to
013	EC-123138-03930	PIN, METERING LEVER	£3.21	Add to
015	EC-123146-10631	PLUG, WELCH	£3.57	Add to
017	EC-P003-002380	SCREW	£3.21	Add to
018	EC-123113-47530	SPRING	£4.20	Add to
023	EC-123133-04260	SPRING, IDLE ADJUST	£3.70	Add to
024	EC-123134-04260	SCREW , IDLE ADJUST	£3.71	Add to
