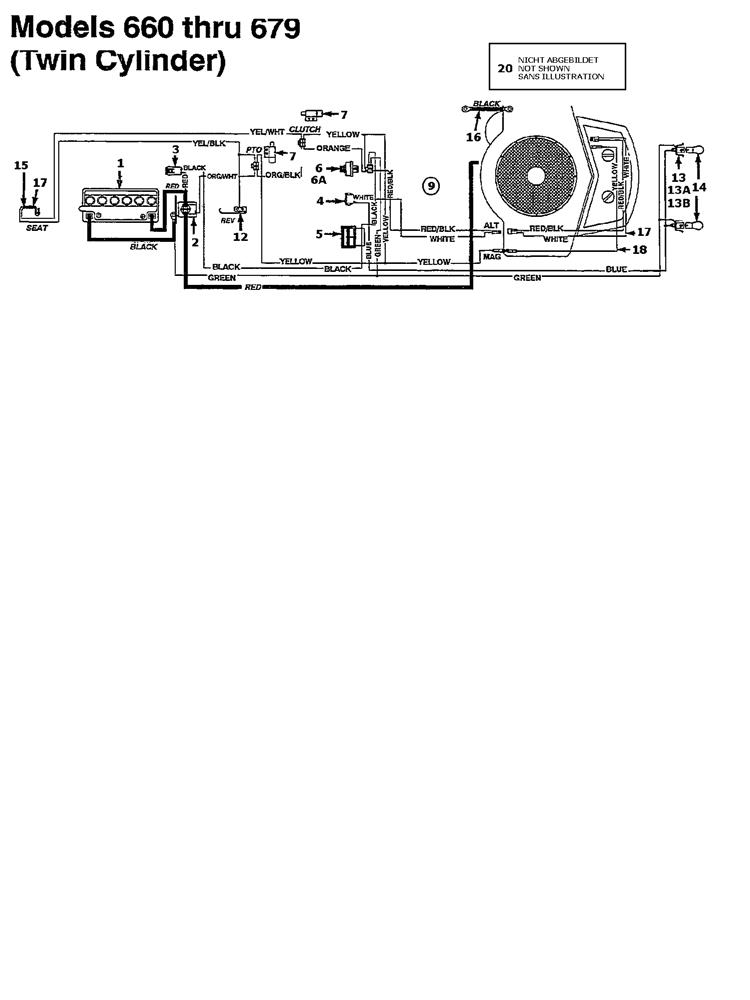

Wiring diagram twin cylinder

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001EPB3118BATTERY Y50-N18L-A2 (OBSOLETE) (OBSOLETE)N/A
002725-1426ASOLENOID£24.30 Add to
003725-1625NO LONGER AVAILABLEN/A POA
004725-0634SW:ROCKER£19.29 Add to
005725-0925AMMETER 620£30.37 Add to
006725-0267BIGNITION SWITCH£25.04 Add to
007725-1657ASAFETY SWITCH£14.15 Add to
009629-0203WIRE HARNESS W/AMMETER£206.84 Add to
012753-0579NO LONGER AVAILABLEN/A POA
013725-1649SOCKET HEADLIGHT£6.92 Add to
014725-0963BULB£7.18 Add to
015725-1303SW:OUTER SEAT SPRG£3.26 Add to
016725-0980WIRE£10.61 Add to
017725-1439SW:INNER SEAT SPRG£8.44 Add to
018629-0125HARN ASM: ALT ADAPTOR 24.0 LG£12.67 Add to
019629-0208HARNESS-ADAPTER£6.94 Add to
020731-1284CONDUIT-HARNESS 8.125 LGN/A POA
06A725-0201IGNITION KEY£6.47 Add to
13A725-1650SOCKET LAMP TWIST LOCK (OBSOLETE)N/A
13B725-1651LAMP SOCKET, LONG£24.91 Add to
