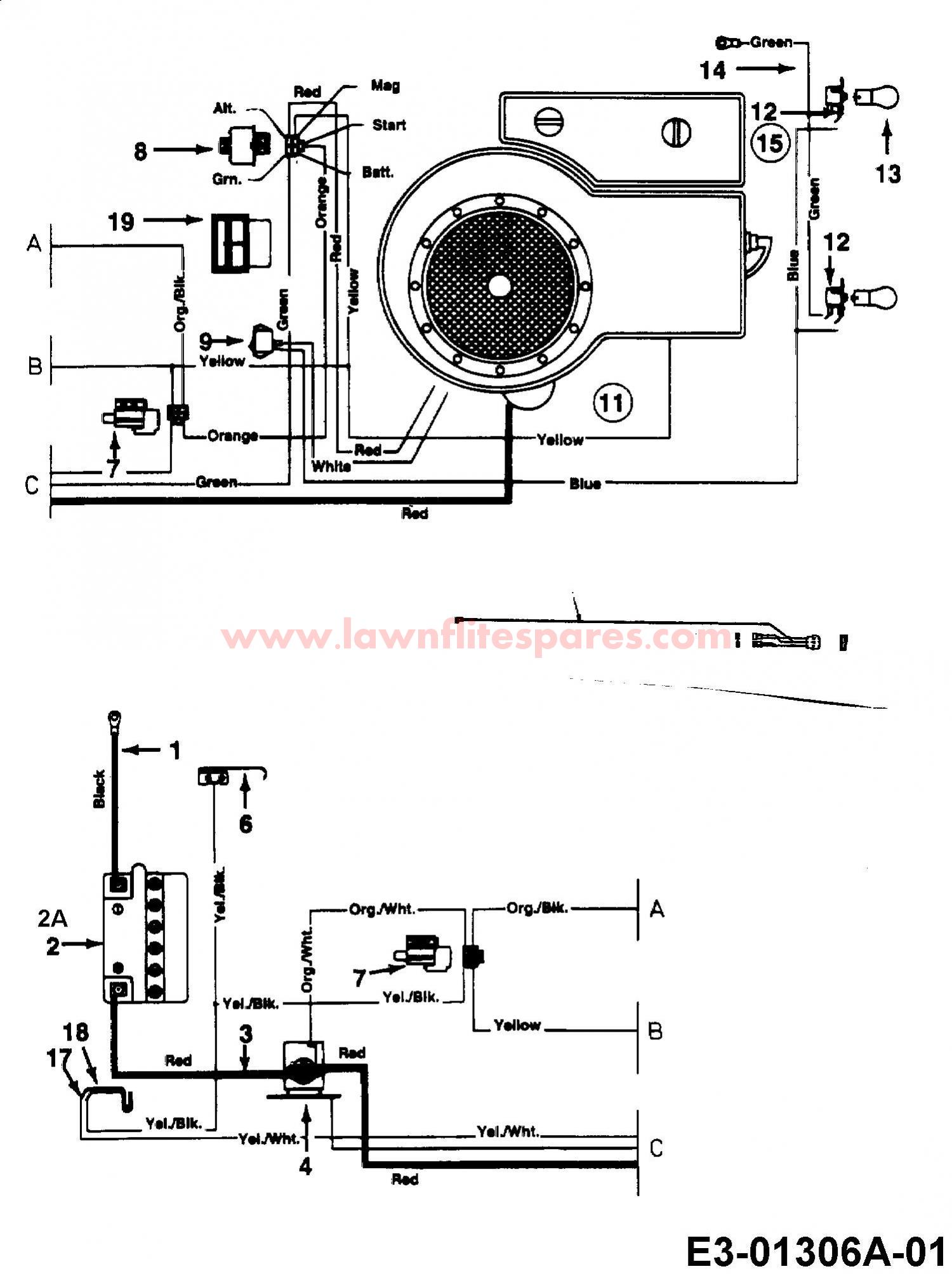

WIRING DIAGRAM SINGLE CYLINDER

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	629-0702	EARTH CABLE	£15.59	Add to
002	5032-u3-0002	BATTERY MF896 (No Returns on this item)	£93.24	Add to
003	629-0705	BATTERY LEAD	£28.42	Add to
004	725-1426A	SOLENOID	£24.30	Add to
006	725-1644	SWITCH:SPRING:SHORT	£6.24	Add to
007	725-1657A	SAFETY SWITCH	£14.15	Add to
008	725-0267B	IGNITION SWITCH	£25.04	Add to
009	725-0634	SW:ROCKER	£19.29	Add to
011	629-04031	HARN ASM:400:W/AMP 629-0195A	£81.14	Add to
012	725-1651	LAMP SOCKET, LONG	£24.91	Add to
013	725-0963	BULB	£7.18	Add to
014	629-0742	WIRE ASM:#18X21 LG:GREEN	£11.05	Add to
015	629-0103	NO LONGER AVAILABLE	N/A	POA
017	725-1303	SW:OUTER SEAT SPRG	£3.26	Add to
018	725-1439	SW:INNER SEAT SPRG	£8.44	Add to
019	725-0925	AMMETER 620	£30.37	Add to
02A	EPB3118	BATTERY Y50-N18L-A2 (OBSOLETE) (OBSOLETE)	N/A
