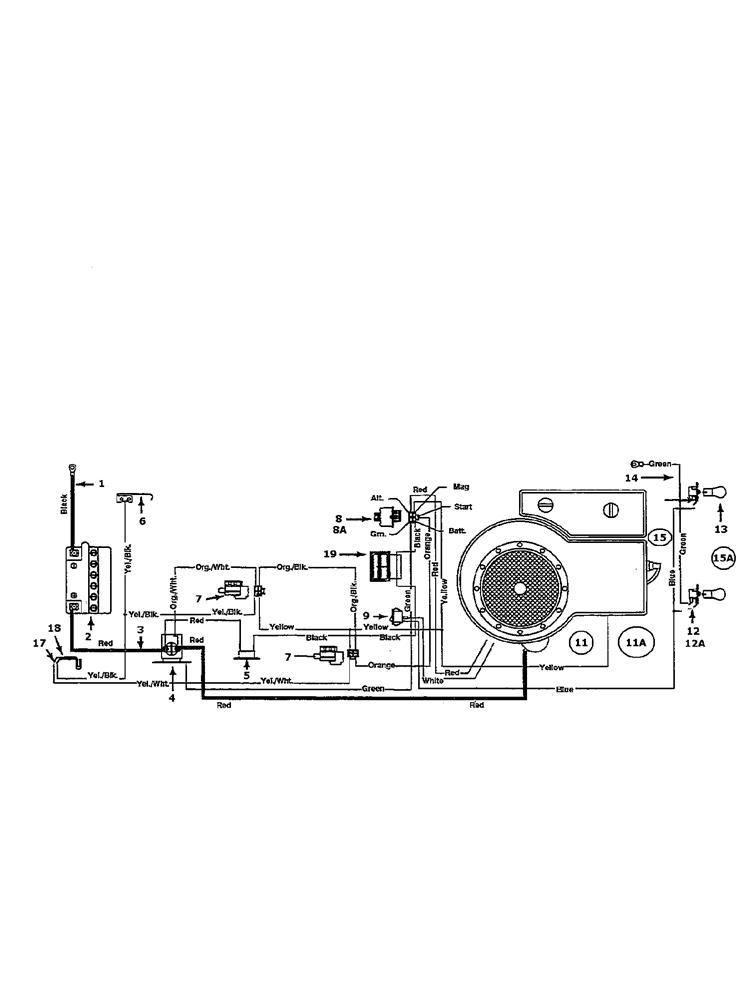

WIRING DIAGRAM SINGLE CYLINDER

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	725-0976A	NO LONGER AVAILABLE	N/A	POA
002	EPB3117	BATTERY 12N14-3A (DRY)	£52.41	Add to
003	725-0926	NO LONGER AVAILABLE	N/A	POA
004	725-1426A	SOLENOID	£24.30	Add to
005	753-0685	KIT CIRCUIT BREAKER (OBSOLETE) (OBSOLETE)	N/A
006	725-1644	SWITCH:SPRING:SHORT	£6.24	Add to
007	725-1657A	SAFETY SWITCH	£14.15	Add to
008	725-0267B	IGNITION SWITCH	£25.04	Add to
009	725-0634	SW:ROCKER	£19.29	Add to
011	629-04031	HARN ASM:400:W/AMP 629-0195A	£81.14	Add to
012	725-1651	LAMP SOCKET, LONG	£24.91	Add to
013	725-0963	BULB	£7.18	Add to
014	725-0916A	WIRE	£7.63	Add to
015	629-0084	WIRE HARNESS	£11.78	Add to
017	725-1303	SW:OUTER SEAT SPRG	£3.26	Add to
018	725-1439	SW:INNER SEAT SPRG	£8.44	Add to
019	725-0925	AMMETER 620	£30.37	Add to
08A	725-0201	IGNITION KEY	£6.47	Add to
11A	629-0194	WIRE HARNESS	£234.18	Add to
12A	725-1650	SOCKET LAMP TWIST LOCK (OBSOLETE)	N/A
15A	629-0103	NO LONGER AVAILABLE	N/A	POA
