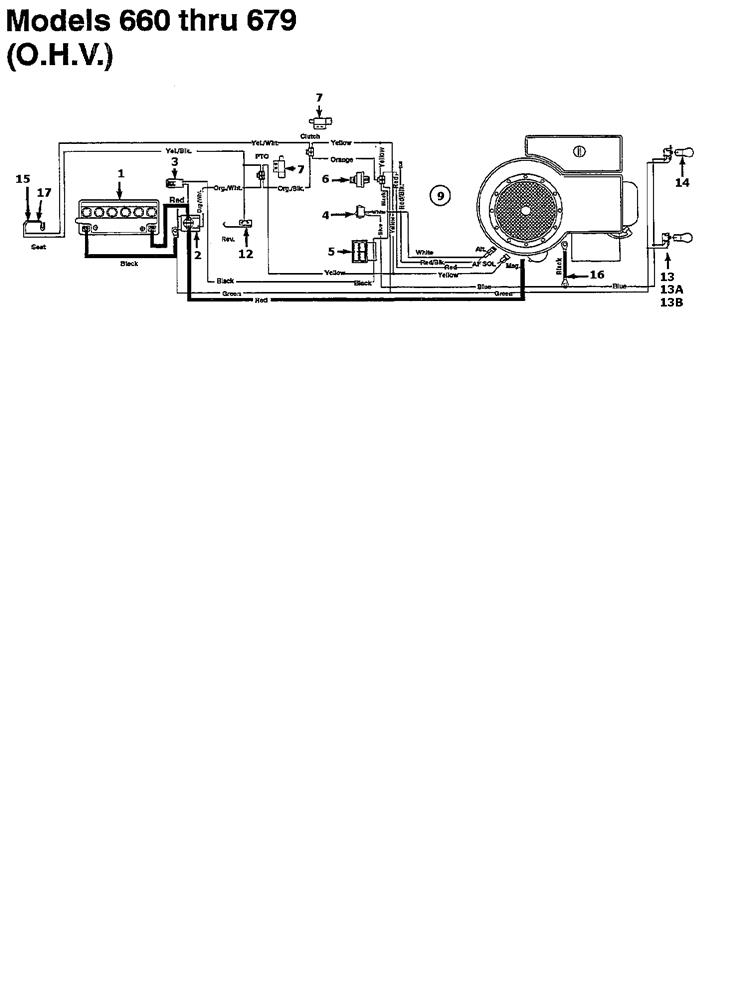

Wiring diagram for O.H.V.

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	EPB3118	BATTERY Y50-N18L-A2 (OBSOLETE) (OBSOLETE)	N/A
002	725-1426A	SOLENOID	£24.30	Add to
003	725-1625	NO LONGER AVAILABLE	N/A	POA
004	725-0634	SW:ROCKER	£19.29	Add to
005	725-0925	AMMETER 620	£30.37	Add to
006	725-1396A	IGNITION SWITCH (6 PIN)	£23.81	Add to
007	725-3169A	SWITCH-SAFETY	N/A	POA
008	629-0740	WIRE 725-1081	£25.95	Add to
009	629-0115	WIRE HARNESS	N/A	POA
012	725-1643	SW:SPR:LONG	£11.69	Add to
013	725-1649	SOCKET HEADLIGHT	£6.92	Add to
014	725-0963	BULB	£7.18	Add to
015	725-1303	SW:OUTER SEAT SPRG	£3.26	Add to
016	725-0980	WIRE	£10.61	Add to
017	725-1439	SW:INNER SEAT SPRG	£8.44	Add to
09A	629-0105	WIRE HARNESS-B&S	N/A	POA
13A	725-1650	SOCKET LAMP TWIST LOCK (OBSOLETE)	N/A
13B	725-1651	LAMP SOCKET, LONG	£24.91	Add to
