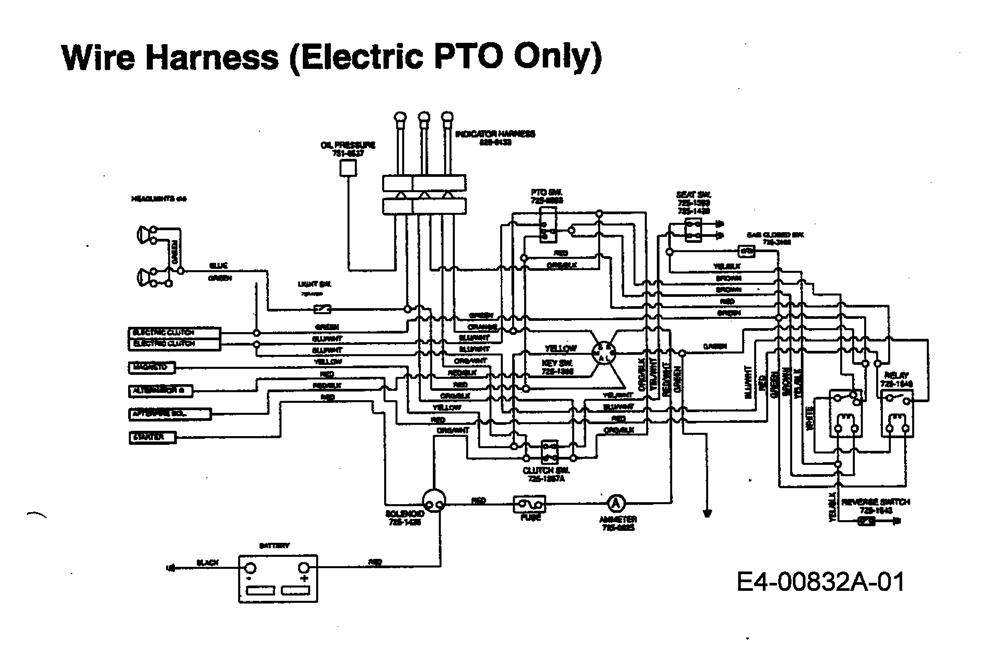

Wiring diagram electric clutch

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	751-0537	OIL PRESSURE SWITCH B&S 491657 (OBSOLETE) (OBSOLETE)	N/A
002	629-0133	HARN ASM:600/700:MON LT. 3	£81.17	Add to
003	725-0893	PTO SWITCH	£51.85	Add to
004	725-1303	SW:OUTER SEAT SPRG	£3.26	Add to
005	725-1439	SW:INNER SEAT SPRG	£8.44	Add to
006	725-3166	SWITCH SNAP MOUNT CLOSED/GREY	£15.69	Add to
007	725-1648	RLY:SPTDT:12V 20AMP	£46.64	Add to
008	725-1643	SW:SPR:LONG	£11.69	Add to
009	725-0925	AMMETER 620	£30.37	Add to
010	725-1657A	SAFETY SWITCH	£14.15	Add to
011	725-1426A	SOLENOID	£24.30	Add to
012	725-1396A	IGNITION SWITCH (6 PIN)	£23.81	Add to
013	725-0634	SW:ROCKER	£19.29	Add to
014	725-1381	NO LONGER AVAILABLE	N/A	POA
03A	000.06.377	SKT-MUTTER 1/2 "-27 NS	£7.58	Add to
