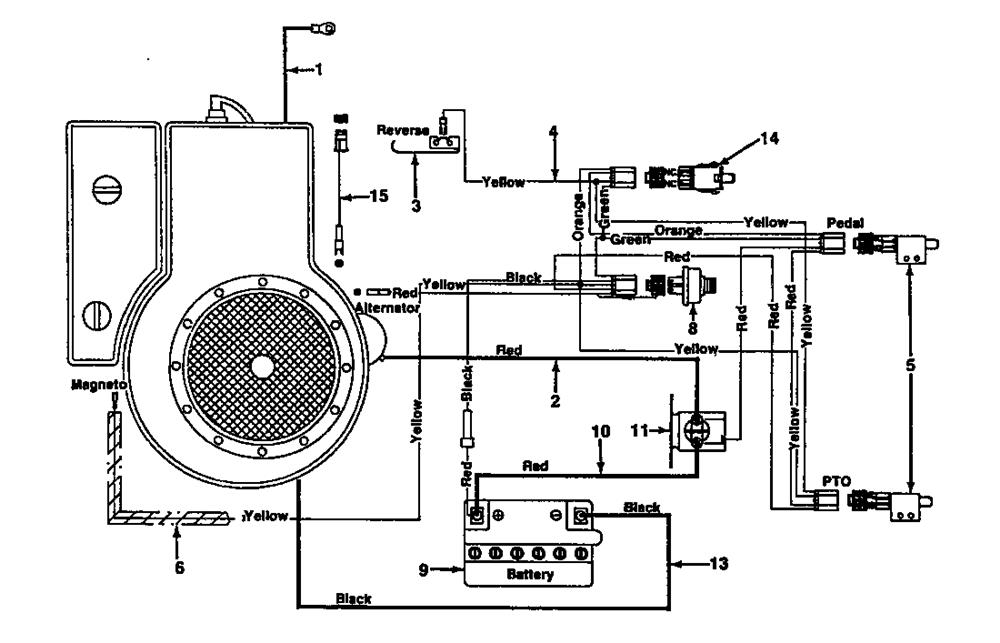

Wiring diagram

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	725-0977	ELEC. WIRE 8 GA. X 9.0" LG.	£14.35	Add to
002	629-0738	NO LONGER AVAILABLE	N/A	POA
003	732-0615	NO LONGER AVAILABLE	N/A	POA
004	725-1431	NO LONGER AVAILABLE	N/A	POA
005	725-3169A	SWITCH-SAFETY	N/A	POA
006	731-0757-4	CONDUIT:CONVOLUTED .50 ID 731-0757	£43.33	Add to
008	725-0267B	IGNITION SWITCH	£25.04	Add to
010	725-0927	ELEC. WIRE RED W/BOOT	£36.13	Add to
011	725-1426A	SOLENOID	£24.30	Add to
013	725-0975	ELEC. WIRE 8 GA. X 9.0" LG.	£12.17	Add to
014	725-1441B	SW:PLGR:NC/NC	£51.98	Add to
015	725-1437	NO LONGER AVAILABLE	N/A	POA
