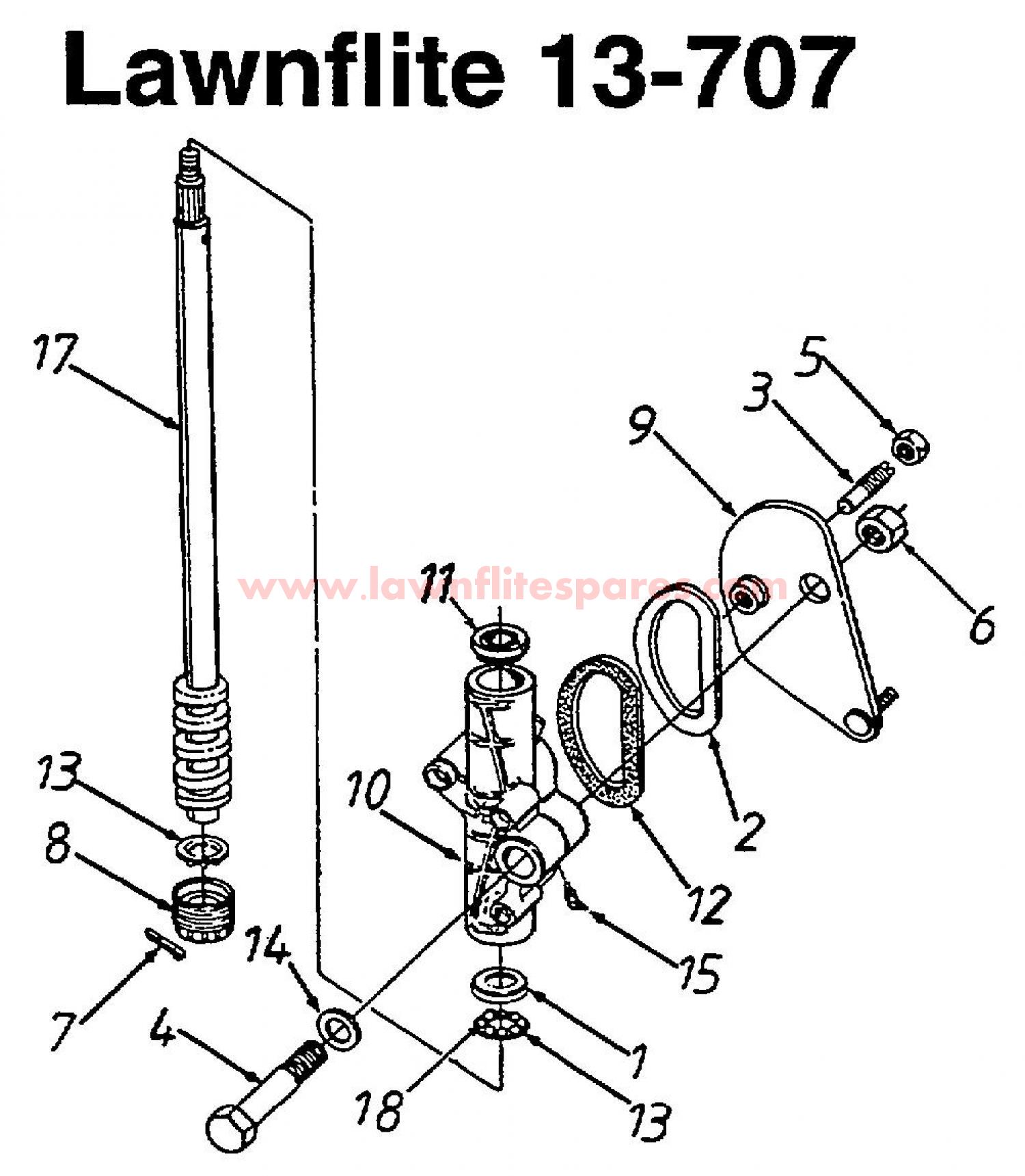

STEERING ASSEMBLY COMPLETE - 13-707

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
00-	737-3007	GREASE:ALAVANIA EP2	N/A	POA
00-	618-0114	STEERING ASS'Y. COMP. (INCL. REF. NOS. 1 THRU 18)	£743.52	Add to
001	703-1029	CUP, BEARING	£5.52	Add to
002	703-1031	RETAINER, SEAL	£4.64	Add to
003	711-3149A	FOLLOWER, CAM 711-3149	£44.44	Add to
004	711-3208	SHAFT, PIVOT	£27.04	Add to
005	712-3062	NUT, HEX JAM, 9/16-18	£3.59	Add to
006	712-3063	NUT-HEX CROWN LOCK	£7.82	Add to
007	714-0474	PIN (RED)	£3.20	Add to
008	717-1048	ADJUSTMENT PLUG ASS'Y.	£33.34	Add to
009	717-1219	STEERING ARM ASS'Y.	£34.58	Add to
010	618-0047	STEERING HSG. BUSHING ASS'Y.	N/A	POA
011	721-0260	OIL SEAL	£18.52	Add to
012	723-3039	NO LONGER AVAILABLE	N/A	POA
013	731-3040	NO LONGER AVAILABLE	N/A	POA
014	736-3029	WASHER, FLAT, .781 X 1.25 X .027 THK	£2.79	Add to
015	737-3001	GREASE NIPPLE	£15.73	Add to
017	611-0018	STEERING SHAFT ASS'Y. 611-0007	£255.35	Add to
018	741-3022	BALL BEARING	£3.58	Add to
