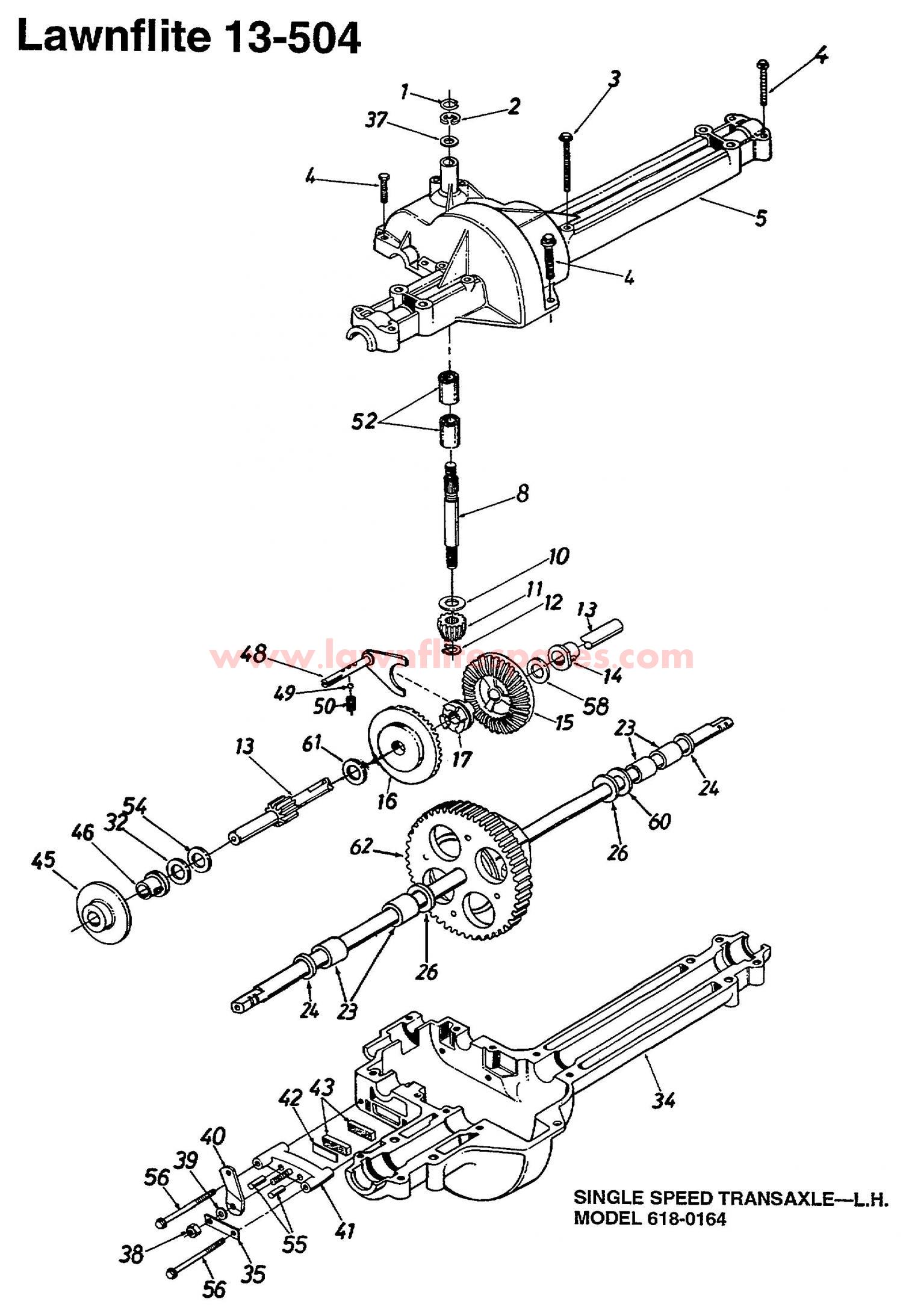

SINGLE SPEED TRANSAXLE LEFT HAND 618-0164

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
736-0495THRUST WASHER£3.07 Add to
00-737-0300AGREASE (OBSOLETE)N/A
001723-0614WIRE RINGN/A POA
002716-0231E RING (RED)£2.97 Add to
003710-1026SCREW£3.91 Add to
004710-0809SCR:TT:1/4-20:1.250:HXINDWSH£3.42 Add to
005753-0678UPPER HOUSING 719-0314£262.57 Add to
008711-0861NO LONGER AVAILABLEN/A POA
010736-0335WASH:THRST:.635 X 1.26 X .06£8.82 Add to
011717-0633PINION-INPUT-14T£22.47 Add to
012716-0171RING, RETAINER£5.24 Add to
013711-1016DRIVE SHAFT - LH BRAKE£103.22 Add to
014741-0336BEARING£8.18 Add to
015717-1362PINION 42 T., SM. BORE HOLE£57.65 Add to
016717-1363PINION 42 T., BIG BORE HOLE£58.35 Add to
017718-0228HINGE PIN£27.68 Add to
021710-0862ASCREW£8.62 Add to
023741-05060BEARING£15.60 Add to
024721-0338SEAL£5.36 Add to
026736-0445WASH:FL:.760 x 1.50 x.06:HT£3.59 Add to
032736-0495THRUST WASHER£3.07 Add to
032736-0773WASH:FLAT:16x22x1 DIN 988£2.93 Add to
032736-0494WASHER:FL:.632X1.000X.035:HD£3.07 Add to
032736-0337WASHER:FLAT:.634x1.00x.04:HT£3.19 Add to
034719-0313BLOWER HOUSING HALF£146.80 Add to
035718-0150BRACKET-ANTI ROTATION£3.49 Add to
037736-0349WASHER:SHIM:.630x1.000x.020:HD£3.39 Add to
037736-0773WASH:FLAT:16x22x1 DIN 988£2.93 Add to
037736-0337WASHER:FLAT:.634x1.00x.04:HT£3.19 Add to
038712-0273NUT:HEXLK:5/16-24:GR2:NYLON£3.90 Add to
039736-0371WASH:THRST:.343 X .880 X .062£3.20 Add to
040717-0772BLEVER, PARK BRAKE ENGAGEMENT£13.38 Add to
041761-0198ABRAKE YOKE£31.21 Add to
042717-0682PLATE£14.67 Add to
043717-0678PAD£12.86 Add to
045761-0202BRAKE DISC£16.56 Add to
046741-0337BEARING£10.11 Add to
048611-0011KP SHIFT FORK£48.90 Add to
049741-0862BALL:DETNT:.250 DIA£6.05 Add to
050732-0863COMPRESSION SPRING 225X.50"£3.42 Add to
052741-0335BEARING-NEEDLE .625X.813X.495£16.43 Add to
054736-0349WASHER:SHIM:.630x1.000x.020:HD£3.39 Add to
055741-0343PIN£10.78 Add to
056710-1206SCREW SELF TAP£3.69 Add to
058736-0349WASHER:SHIM:.630x1.000x.020:HD£3.39 Add to
060736-0492WASH:SHIM:.760x1.500x.010:HD£3.90 Add to
060736-0493WASHER:SHIM:.760x1.500x.020:HD£4.11 Add to
060736-0351WASH:SHIM:.760x1.500X.030:HD£2.97 Add to
060736-0445WASH:FL:.760 x 1.50 x.06:HT£3.59 Add to
061736-0519WASH:FLAT:.70X1.125X.031£7.71 Add to
062618-0232DIFFERENTIAL ASSY£295.92 Add to
