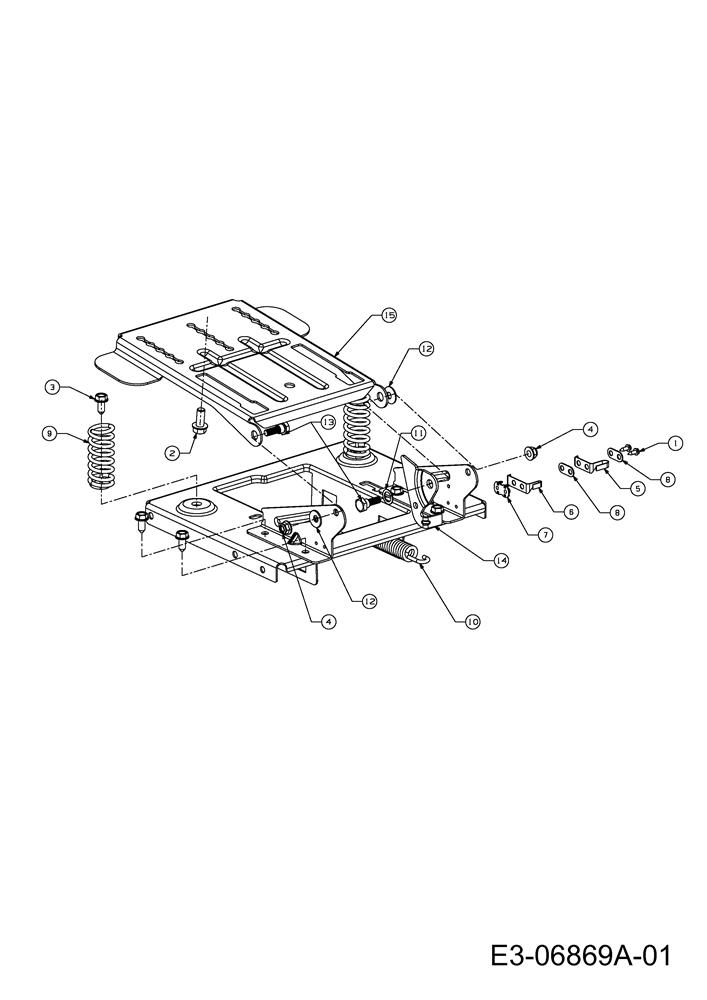

Seat bracket

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	710-0227	SCR:AB:#8-18:0.500:HXINDWH	£3.07	Add to
002	710-04482	HHFLG:3/8-16:.875:GR5:STD	£3.24	Add to
003	710-04484	SCR:TT:5/16-18:.750:HXINDWSH	£5.27	Add to
004	712-04063	FLANGED NUT	£4.20	Add to
005	725-1303	SW:OUTER SEAT SPRG	£3.26	Add to
006	725-1439	SW:INNER SEAT SPRG	£8.44	Add to
007	726-0278	INSULATING PLATE	£3.20	Add to
008	726-0279	INSULATING PLATE	£3.20	Add to
009	732-04035	SEAT SPRING	£7.15	Add to
010	732-1184	SEAT SPRING	£13.74	Add to
011	736-0108	WASH-FLAT:.510 x.750 x.033	£3.59	Add to
012	736-0242	BELL WASHER	£3.72	Add to
013	738-3024	NO LONGER AVAILABLE	N/A	POA
014	783-0209D	BRKT:LIFT:SEAT	£9.23	Add to
015	783-04081D	BRKT:SEAT:PIVOT MANUAL ADJ	N/A	POA
016	783-1489D		N/A	POA
