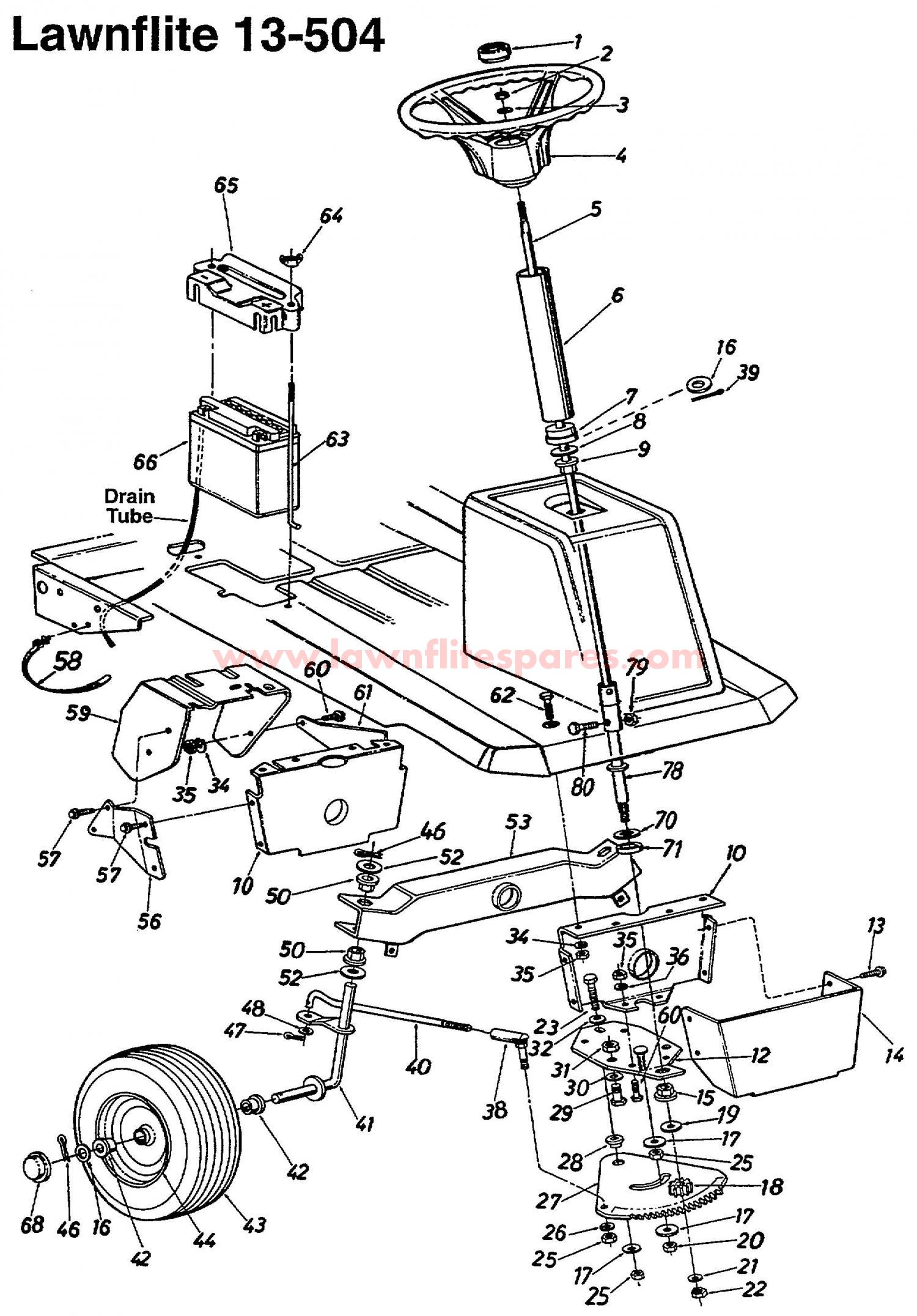

RIDING MOWER - 13-504

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
	734-0255	VALVE - TUBELESS AIR	£7.02	Add to
	737-0280	FITTING-GREASE	£13.79	Add to
	683-0011	FRONT AXLE ASS'Y.--L.H. (NOT SHOWN) 15617A	£193.78	Add to
	325958	TIRE 11.0X4.0X4.0	£18.46	Add to
001	731-0220	STEERING WHEEL CAP	£9.71	Add to
002	712-0237	HEX CENTRE NUT	£11.18	Add to
003	736-0242	BELL WASHER	£3.72	Add to
004	731-0806A	STEERING WHEEL 731-0805 (OBSOLETE) (OBSOLETE)	£96.46	Add to
005	783-0035	STEERING SHAFT ASSY.	N/A	POA
006	750-0568	STEERING TUBE SPACER (CHROME)	£31.45	Add to
007	731-0651	NO LONGER AVAILABLE	N/A	POA
008	736-0187	FLAT WASHER	£3.19	Add to
009	741-0225	HEX FLANGE BEARING	£4.92	Add to
010	15613B	BRKT PVT BAR	£26.66	Add to
012	683-0045	NO LONGER AVAILABLE	N/A	POA
013	710-0776A	SCREW-HEX WASH HD	£3.20	Add to
014	15608	NO LONGER AVAILABLE	N/A	POA
015	741-0225	HEX FLANGE BEARING	£4.92	Add to
016	736-0285	FLAT WASHER	£4.06	Add to
017	736-0320	WASH:FLAT:.380 x.1.380 x.125	£4.70	Add to
018	748-0290	PINION	£12.78	Add to
019	736-0272	WASHER:FL:.510 X 1.000 X .060	£3.16	Add to
020	712-0116	HEX NUT	£3.96	Add to
021	736-0275	WASH:FLAT:.344 x .688 x.065	£3.07	Add to
022	712-3057	NUT 5/16-24	£3.00	Add to
023	710-0459A	TIE ROD BOLT	£3.62	Add to
025	712-0241	HEX NUT 3/8-24	£2.79	Add to
026	736-0169	L. WASHER	£2.89	Add to
027	717-0472A	STEERING GEAR SEGMENT 717-0472 (OBSOLETE)	N/A
028	738-0541	SPCR:STRG:SHLD	£5.88	Add to
029	710-0689	HEX.SCREW HHCS:1/2-13:.75NYLON	£7.22	Add to
030	736-0160	WASH:FLAT:.530x.930x.050	£3.39	Add to
031	712-0206	NUT	£3.42	Add to
032	736-0105	BELL WASHER	£3.33	Add to
034	736-0119	LOCK WASHER 5/16	£3.33	Add to
035	712-3010	NUT 5/16 x 18	£2.77	Add to
036	736-0271	WASHER	£3.16	Add to
038	723-0156	BALL JOINT 3/8-24	£23.17	Add to
039	714-0115	COTTER PIN	£3.42	Add to
040	747-0417	NO LONGER AVAILABLE	N/A	POA
041	683-0012	FRONT AXLE ASS'Y.--R.H. 15616A	£147.88	Add to
042	741-0487C	FLANGE BEARING	£6.18	Add to
043	634-0147	WHEEL ASSY (OBSOLETE) (OBSOLETE)	N/A
044	734-1455A	NO LONGER AVAILABLE	N/A	POA
046	714-0470	COTTER PIN	£5.07	Add to
047	717-0115	COTTER PIN 1/8" DIA. X 1.00" *	N/A	POA
048	736-0300	WASHER	£2.81	Add to
050	741-0225	HEX FLANGE BEARING	£4.92	Add to
052	736-0156	WASHER	£7.07	Add to
053	15610C	BAR ASSY PIVOT	£288.58	Add to
056	15694A	BRACKET REINFORCE RH (RED)	£13.99	Add to
057	710-0776A	SCREW-HEX WASH HD	£3.20	Add to
058	726-0154	TIE:CABLE:PUSH MOUNT 7.5 LG	£4.80	Add to
059	17677	NO LONGER AVAILABLE	N/A	POA
060	710-3008	HEX BOLT	£3.03	Add to
061	15699A-0637	BRACKET-LH POWDER BLACK	£4.73	Add to
062	710-3008	HEX BOLT	£3.03	Add to
063	711-0222A	ROD-TIE	£20.24	Add to
064	712-0113	NO LONGER AVAILABLE	N/A	POA
065	731-0708	NO LONGER AVAILABLE	N/A	POA
066	EPB3117	BATTERY 12N14-3A (DRY)	£52.41	Add to
068	731-0484A	HUB CAP	£5.05	Add to
069	683-0034	STEERING SHAFT ASS'Y.	£107.63	Add to
070	736-0187	FLAT WASHER	£3.19	Add to
071	750-0532	SPACER (OBSOLETE)	N/A
078	738-3089A	ADAPTER STEERING COLUMN	£65.99	Add to
079	712-0324	HEX. INS L NUT	£3.69	Add to
080	710-0958	NO LONGER AVAILABLE	N/A	POA
