MTD016822

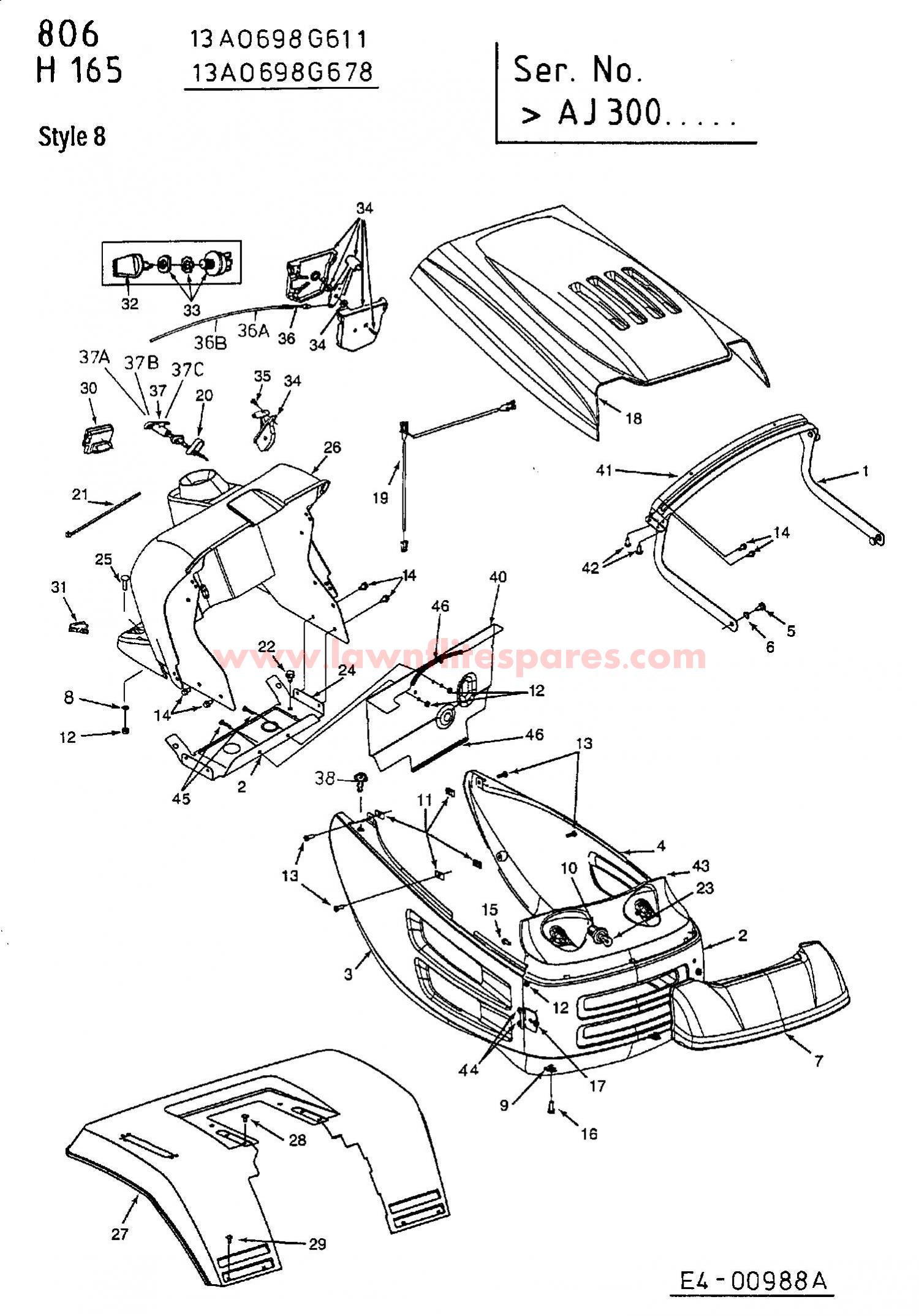

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	783-0551A	BRKT:HOOD:HINGE 783-0551	£16.82	Add to
002	783-0477A	REWORK ON 783-0477A	N/A	POA
003	783-0476B	PNL:SD:RH:8 STYLE	N/A	POA
004	783-0475A	PNL:SD:LH 8 STYLE	N/A	POA
005	738-0255	BOLT SHOULDER	£6.59	Add to
006	736-0413	NO LONGER AVAILABLE	N/A	POA
007	731-1854A	LENS:8 STYLE	£29.72	Add to
008	726-0233	NUT:PUSH:.25 ID X .50 OD	£3.58	Add to
009	726-0211	U NUT	£3.96	Add to
010	725-1649	SOCKET HEADLIGHT	£6.92	Add to
011	712-0292	SPEED NUT (DNR)	£4.41	Add to
012	712-0271	NUT:SEMS:1/4-20	£3.03	Add to
013	710-0924	TRUSS SCREW (OBSOLETE) (OBSOLETE) (OBSOLETE)	N/A
014	710-0599	HEX TT SCREW 1/4-20	£4.95	Add to
015	710-0751	BOLT 069	£3.39	Add to
016	710-0376	SCREW HEX CAP 5/16	£9.02	Add to
017	683-0168	BRKT ASM:HOOD PIVOT	£12.42	Add to
018	783-0478A	HOOD:8 STYLE	£171.73	Add to
019	629-0309	HARN ASM:600/700:12.5 HDLIGHT	£16.55	Add to
020	17782	CHOKE CABLE RETAINER CLIP	£13.39	Add to
021	725-0157	NO LONGER AVAILABLE	N/A	POA
022	710-0607	SELF TAP SCREW	£4.71	Add to
023	725-0963	BULB	£7.18	Add to
024	17632B637	BRKT:BAT:SUPT 17632B	£24.79	Add to
025	710-0703	SCR:CRG:1/4-20:.75:GR5	£3.07	Add to
026	731-1852	DASH PANEL	£132.29	Add to
027	17871B	FENDER-RR	£173.33	Add to
028	710-0726	HEX SCREW AB 5/16-12:0.750	£3.19	Add to
029	710-0286	SCREW	£3.31	Add to
030	725-0925	AMMETER 620	£30.37	Add to
031	725-0634	SW:ROCKER	£19.29	Add to
032	725-0201	IGNITION KEY	£6.47	Add to
033	725-0267B	IGNITION SWITCH	£25.04	Add to
034	931-0823A	THROTTLE CONTROL BOX ASSY	£25.49	Add to
035	710-0779A	SELF TAP SCREW	£3.58	Add to
036	746-0638	CABLE-THROTTLE	£11.28	Add to
037	746-0720	CHOKE CONTROL CABLE	£48.72	Add to
038	735-0199A	BUMPER-RUBBER:.62 OD x.22 THK	£8.74	Add to
040	16988A	BFL:ENG	N/A	POA
041	783-0553A637	BRKT:HOOD:SUPPORT: 783-0553A	£16.91	Add to
042	710-1388	SCREW	£3.23	Add to
043	726-0293	NO LONGER AVAILABLE	N/A	POA
044	710-0896	SCREW WITH WASHER ST	£4.97	Add to
045	710-0166	PAN HEAD MACH SCR 1/4-20 X 1.0	N/A	POA
046	731-0511-18	TRIM STRIP-18"LG.	N/A	POA
36A	746-0638	CABLE-THROTTLE	£11.28	Add to
36B	746-0634	THROTTLE CABLE L= 35"	£17.09	Add to
37A	746-0616A	CHOKE CONTROL CABLE ASSY	£12.71	Add to
37B	746-3021	CHOKE CONTROL	£37.35	Add to
37C	746-0614A	CHOKE CONTROL	£21.70	Add to
