MTD016611

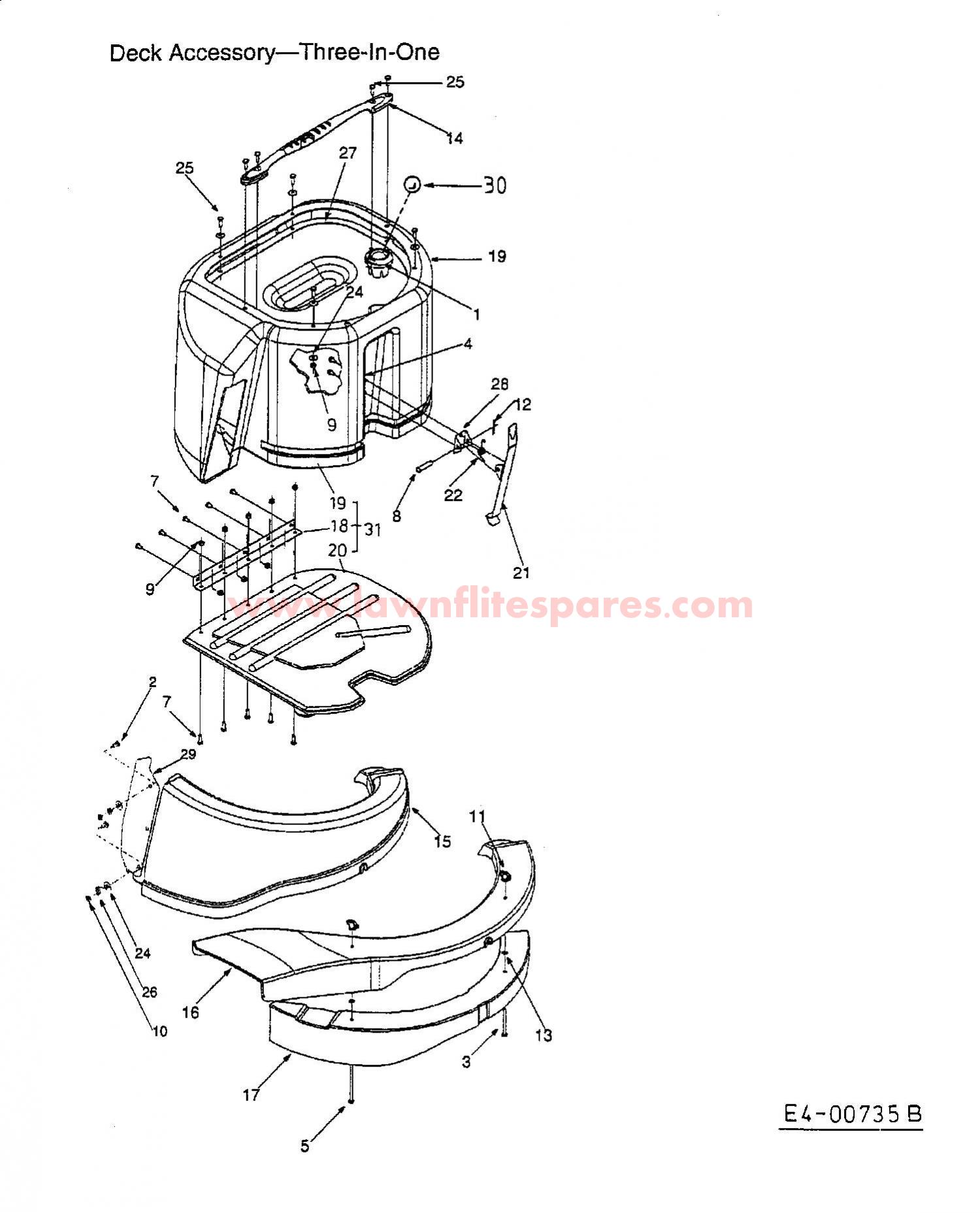

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	631-0060	HSG ASM:IND:FLOW	£27.50	Add to
002	710-0286	SCREW	£3.31	Add to
003	710-0564	HEX CAP SCREW	£2.97	Add to
004	710-0642	SCREW-HEX HD TAP 4-20 x 7.5	£3.68	Add to
005	710-0825	BOLT	£6.05	Add to
006	710-0456	SCR:BSD:#10-16:0.500:HXINDWSH	£3.90	Add to
007	710-0924	TRUSS SCREW (OBSOLETE) (OBSOLETE) (OBSOLETE)	N/A
008	711-0415	CLEVIS PIN	£5.28	Add to
009	712-0271	NUT:SEMS:1/4-20	£3.03	Add to
010	712-0298	NUT:JAM:1/4-20:GR2	£3.80	Add to
011	712-0397A	WING NUT	£5.52	Add to
012	714-0115	COTTER PIN	£3.42	Add to
013	726-0271	NUT:PUSH:7/32 DIA	£12.63	Add to
014	731-1441	BAG HANDLE	£21.60	Add to
015	731-1743A	CHUTE	£98.40	Add to
016	731-1744	SIDE DISCHARGE CHUTE	£85.22	Add to
017	731-1745A	MULCH PLUG 27.5 (OBSOLETE)	N/A
018	731-1912	HGE:GRSBG (OBSOLETE) (OBSOLETE)	N/A
019	731-1952	GRASS BAG	£132.96	Add to
020	731-1953	NO LONGER AVAILABLE	N/A	POA
021	732-0839A	ASS`Y, LIFT HANDLE (WLDM) 732-0839	£26.31	Add to
022	732-0841	TORSION SPRING BAG	£5.81	Add to
023	732-0854	SPRING CLIP:.080 DIA	£4.95	Add to
024	736-0173	WASH:FL:.28ID:.74OD:.063	£3.31	Add to
025	710-0166	PAN HEAD MACH SCR 1/4-20 X 1.0	N/A	POA
026	736-0329	L. WASHER	£3.26	Add to
027	783-0544A637	SCRN:GRSBG 783-0544A	£102.38	Add to
028	783-0575A	BRKT:PIVOT:BAG	£23.84	Add to
029	783-0645	NO LONGER AVAILABLE	N/A	POA
030	731-1644	NO LONGER AVAILABLE	N/A	POA
031	631-0080	NO LONGER AVAILABLE	N/A	POA
032	631-0084637	NO LONGER AVAILABLE	N/A	POA
