MTD016601

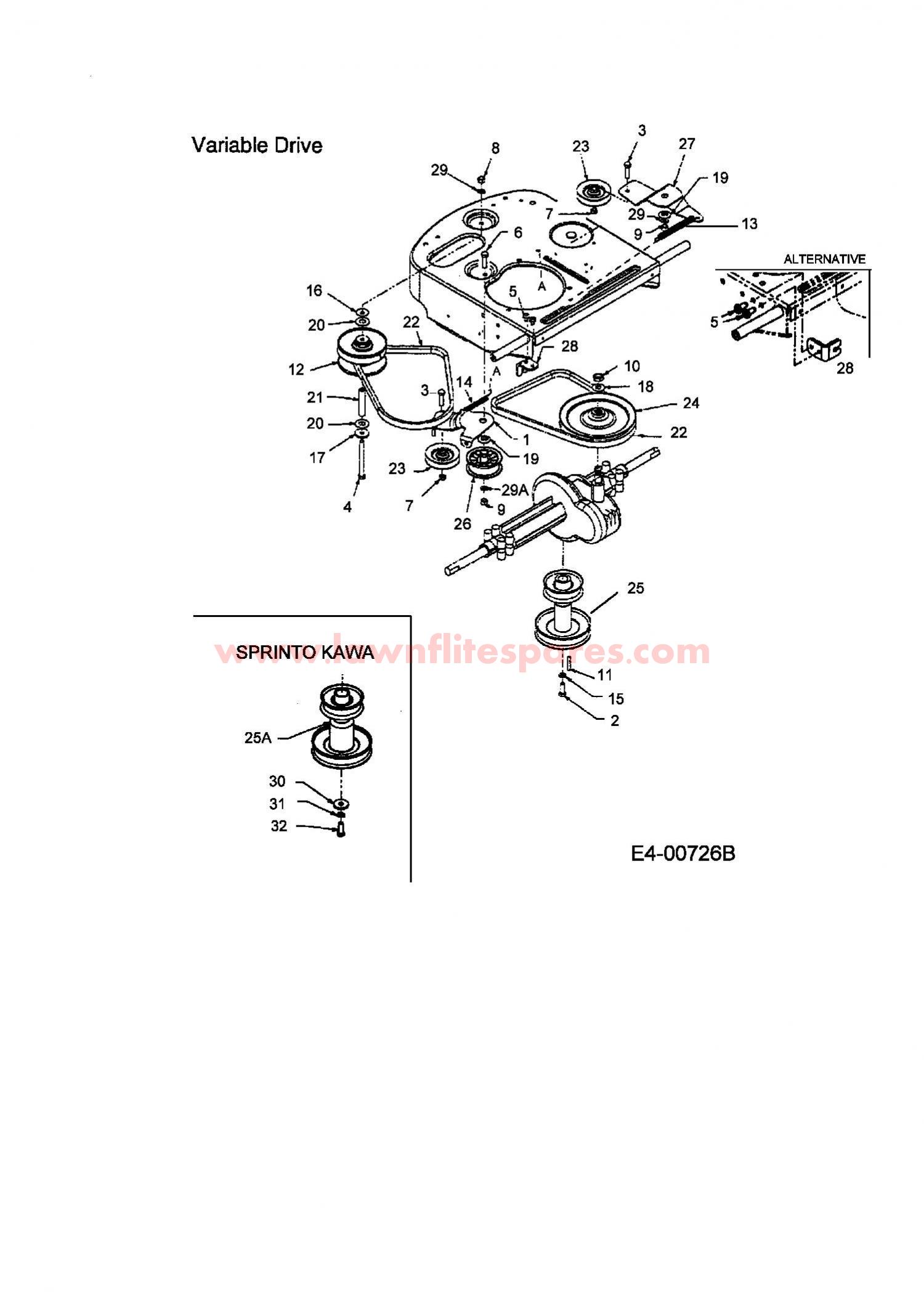

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	683-0147C-Z	BRACKET ASSY- IDLER 683-0147	N/A	POA
002	710-0314	HEX BOLT	£5.49	Add to
003	710-0191	HEX BOLT (RED)	£7.13	Add to
004	710-0902	SCREW HHCS:3/8-24:3.75:GR5:STD	£15.40	Add to
005	710-1611B	SCREW SELF TAP	£5.88	Add to
006	710-3096	NO LONGER AVAILABLE	N/A	POA
007	712-0116	HEX NUT	£3.96	Add to
008	712-0241	HEX NUT 3/8-24	£2.79	Add to
009	712-3017	NUT:JAM:3/8-16:GR5	£2.97	Add to
010	712-3035	NUT:JAM:9/16-18:GRADE 5	£3.59	Add to
011	714-0114	SQUARE KEY	£5.26	Add to
012	717-0884	NO LONGER AVAILABLE	N/A	POA
013	732-0814	SPRING 56 DIA x 5.52 LG	£11.51	Add to
014	732-0815A	SPRING	£15.73	Add to
015	736-0171	WASHER	£2.93	Add to
016	736-0219	BELL WASHER (RED)	£3.58	Add to
017	736-0247	F.I. WASH	£8.70	Add to
018	736-0427	BELL:WASH:.567 x 1.125 x .06	£3.31	Add to
019	738-0968	SPACER	£11.79	Add to
020	741-0405	NO LONGER AVAILABLE	N/A	POA
021	750-0705	SLV:SPCR:.56:2.71	£18.27	Add to
022	754-0453	V BELT	£53.72	Add to
023	756-04213	PULLEY	£19.77	Add to
024	756-0650	PUL:TRANS:7.0x5/8-36	£84.67	Add to
025	756-1189	PULLEY 756-0658	£169.83	Add to
026	756-0981B	PUL:IDLR:FLAT 2.75 OD	N/A	POA
027	783-0528	BRKT:IDLR:VARI SPEED TRANS	£19.17	Add to
028	783-0529	CABLE BRACKET	£16.93	Add to
029	736-0169	L. WASHER	£2.89	Add to
030	736-0247	F.I. WASH	£8.70	Add to
031	736-0169	L. WASHER	£2.89	Add to
032	710-1039	HEX BOLT 3/8-24 x 1 INCH Lg	£3.62	Add to
25A	756-04106	PUL:ENG:HYDRO	£68.91	Add to
29A	736-0217	H.L. WASHER (RED)	£4.89	Add to
