MTD016597

Parts list

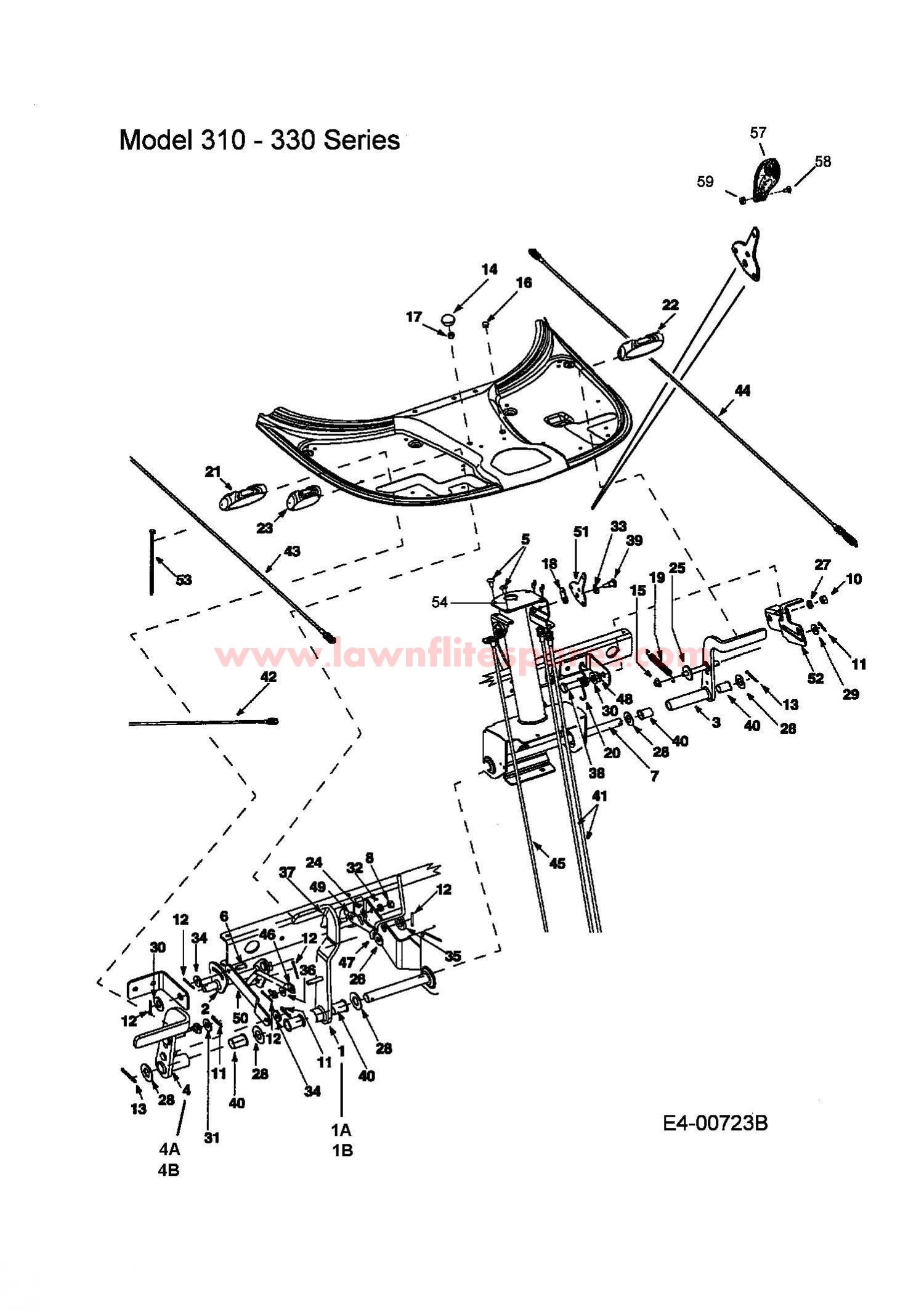

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001683-0155A637PLATE-ASSY. MOUNTING£81.69 Add to
002683-0161637SHAFT ASSY-PEDAL 683-0161£62.70 Add to
003683-0275A637PEDAL DECK ASSEMBLY 683-0275A£90.05 Add to
004683-0310A637SCHWEIßTEIL / SCHWARZ LACKIERTN/A POA
005710-1017TAP SCREW£2.97 Add to
006711-0701CLEVIS PIN£4.89 Add to
007711-1156SHFT:.623 DIA x 16.082 LG£53.75 Add to
008712-0287NUT HEX£3.31 Add to
009712-0324HEX. INS L NUT£3.69 Add to
010712-3017NUT:JAM:3/8-16:GR5£2.97 Add to
011714-0104PIN INTERNAL COTTER£2.78 Add to
012714-0111COTTER PIN£3.20 Add to
013714-0470COTTER PIN£5.07 Add to
014720-0166KNOB:BALL:1.06 DIA£6.30 Add to
015726-0100PUSH NUT 3/8 (RED)£3.24 Add to
016726-0450PLUG CAP£2.98 Add to
017731-0405BUSH:SNAP:1/4" ID£3.20 Add to
018731-1913LVR:STOP£3.59 Add to
019732-0815ASPRING (OBSOLETE)N/A
01A683-0155A650PLATE-ASSY. MOUNTING£81.69 Add to
01B683-0155A665PLATE-ASSY. MOUNTING£81.69 Add to
020732-0865TORS. SPRING.58, Ø.105 MUSIC£12.20 Add to
021735-0261DRIVE PAD£36.75 Add to
022735-0262DECK PAD (OBSOLETE)N/A
023735-0263BRAKE PAD (OBSOLETE) (OBSOLETE)N/A
024736-0117WASH:FLAT:.385 x.620 x.033£3.31 Add to
025736-0133WASH:FLAT:.411 X 1.25 X .100£3.87 Add to
026736-0159WASH .349 ID X .879 OD X .063£3.59 Add to
027736-0169L. WASHER£2.89 Add to
028736-0187FLAT WASHER£3.19 Add to
029736-0300WASHER£2.81 Add to
030736-0272WASHER:FL:.510 X 1.000 X .060£3.16 Add to
031736-0300WASHER£2.81 Add to
032736-0329L. WASHER£3.26 Add to
033736-0608WASHER:SPR:.45 x.74 x.035£12.24 Add to
034736-3000WASH:FLAT:.250x.750x.119£4.13 Add to
035736-3019WASHER FLAT£5.39 Add to
036736-3020WASH:FLAT:.271 X.630 X.065£2.98 Add to
037738-0255BOLT SHOULDER£6.59 Add to
038738-0373AXLE BOLT£6.84 Add to
039738-0974SCR:SHLDR:.375x.380:1/4-20£9.24 Add to
040741-0591FLANGE BEARING£3.44 Add to
041746-0935ASHIFT CABLE (SINGLE)£56.26 Add to
042746-0936VARIABLE DRIVE CABLE£73.79 Add to
043746-0937BRAKE CABLE 52.0 LG£76.15 Add to
044746-0940DECK CABLE£51.72 Add to
045746-0964NO LONGER AVAILABLEN/A POA
046747-0963AROD:BRAKE:5.87 LG£29.73 Add to
047747-0964ROD-BRAKE£26.21 Add to
048750-0736SPACER .383IDx.50OD x.18LG£3.07 Add to
049783-0473637LEVER, PARK BRAKE ENGAGEMENT 783-0473£25.42 Add to
04A683-0310A650SCHWEIßTEIL / RED METALLIC LACN/A POA
04B683-0310A665SCHWEIßTEIL / YM GREEN LACKIERN/A POA
050783-0525637VARIABLE PEDAL LINK 783-0525£9.63 Add to
051783-0593ALVR:SHFT£9.56 Add to
052783-0794BRKT:PED:LOCK OUTN/A POA
053725-0157NO LONGER AVAILABLEN/A POA
054683-0163ABRKT ASM:STRG:SUPPORTN/A POA
057731-1857GRIP£18.87 Add to
058710-3217SCR:MACH:#8-32:0.375:TRUSPHI£3.33 Add to
059712-0142NUT:HEX:#8-32:GRA£3.24 Add to
