MTD016443

Parts list

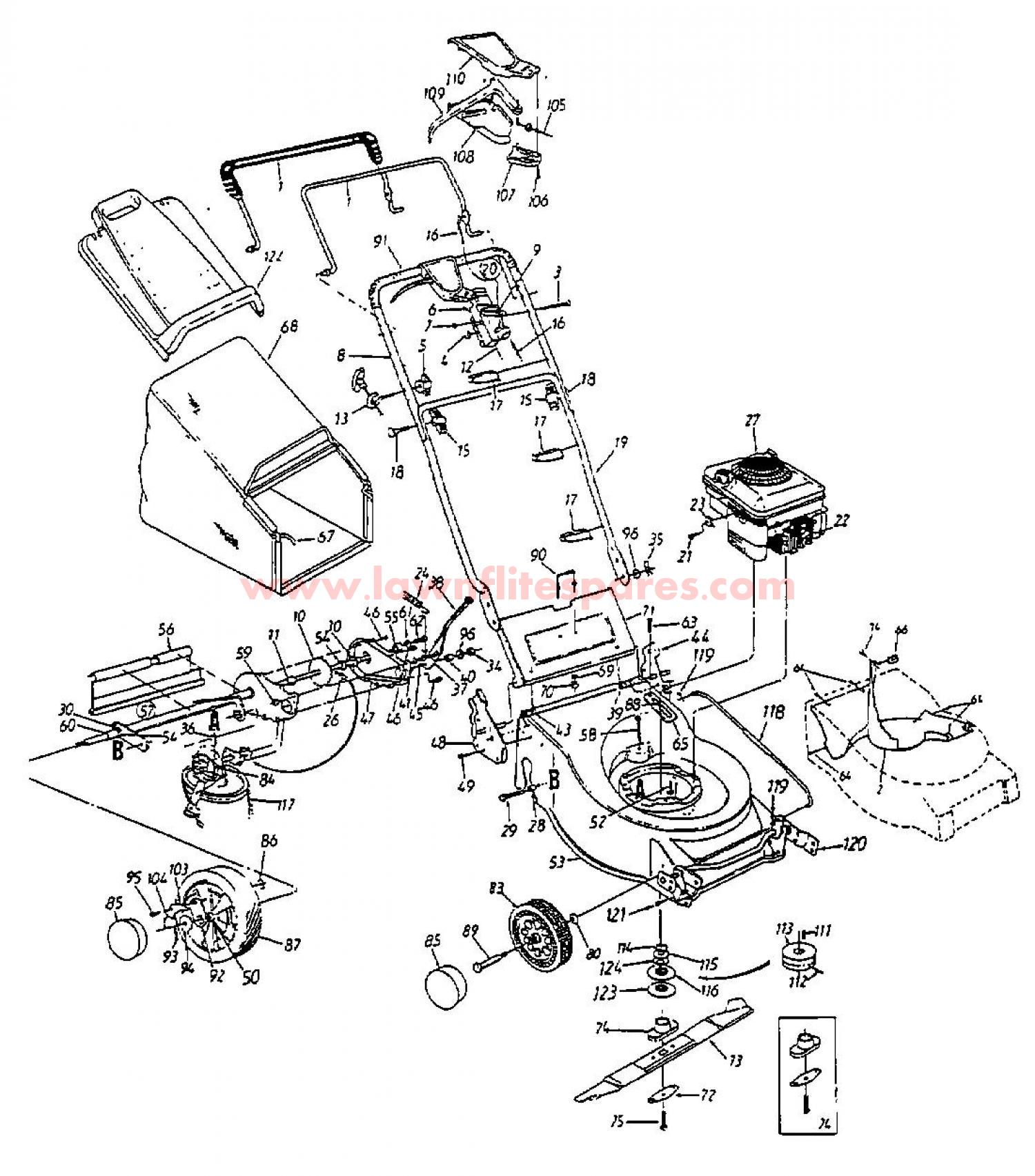

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	747-0824637	BRAKE BAIL	£19.77	Add to
002	731-1633C	BAFFLE	£27.72	Add to
003	710-0605	SCR:MACH:1/4-20:1.825:OVALCSK	£3.44	Add to
004	736-0501	SPRING WASHER (RED)	£4.00	Add to
005	720-0279	WING NUT	£2.99	Add to
006	746-0875	THROTTLE BOX BODY	£17.98	Add to
007	712-0324	HEX. INS L NUT	£3.69	Add to
008	749-0539B-0637	HANDLE-UPPER 749-0539B	£43.70	Add to
009	746-0876	LEVER-THROTTLE	£12.97	Add to
010	638-0002	AXLE	N/A	POA
011	741-0522	HEX FLANGE BEARING	£4.65	Add to
012	746-1009	THROTTLE CONTROL WIRE	£14.70	Add to
013	782-7627A	EYE BOLT	£6.28	Add to
014	710-1388	SCREW	£3.23	Add to
015	720-0368	WING NUT	£5.19	Add to
016	746-1067	CABLE	£19.28	Add to
017	726-0240	TIE:CBL:3/16:7.0 LG	£4.13	Add to
018	710-1174	BOLT CURVED HEAD	£5.76	Add to
019	749-0928637	LOWER HANDLE	£35.84	Add to
01A	647-0004	LVR:CONT:DELUXE	£47.81	Add to
020	811-0185	CONTROL-THROTTLE	£29.81	Add to
021	710-1237	SCREW SELF TAP	£3.00	Add to
022	735-0639	NO LONGER AVAILABLE	N/A	POA
023	751B213146	CASING CLAMP (OBSOLETE) (OBSOLETE)	N/A
024	732-0740	SPR.EXTN: .73 OD X 4.28 LG	£12.75	Add to
025	710-0252	NO LONGER AVAILABLE	N/A	POA
026	713-0443	CHAIN-ENDLESS	£10.65	Add to
028	750-0736	SPACER .383IDx.50OD x.18LG	£3.07	Add to
029	710-1006	NO LONGER AVAILABLE	N/A	POA
030	741-0324A	BEARING	£5.54	Add to
034	712-0296	NUT:JAMLK:3/8-24	£3.59	Add to
035	714-0104	PIN INTERNAL COTTER	£2.78	Add to
036	750-0589	SPACER	£5.50	Add to
037	732-0580	NO LONGER AVAILABLE	N/A	POA
038	720-0223	GRIP	£11.48	Add to
039	732-0677	NO LONGER AVAILABLE	N/A	POA
040	750-0624	SPCR:SHLDR:.387IDx.50ODx1.50LG	£13.43	Add to
041	736-0169	L. WASHER	£2.89	Add to
042	712-0711	NUT	£3.07	Add to
043	732-0678	SPRING,EXT.1"	£4.55	Add to
044	682-3027A	BRACKET-HANDLE LH	£27.56	Add to
045	711-0805	PIN:SHLD:3/8-24 x 1.43 LG	£7.82	Add to
046	710-0352	SCR:B-1/4-14:.375:HWINDWSH	£7.96	Add to
047	682-7516637	COVER ASSY-CHAIN	£56.91	Add to
048	682-3028A	NO LONGER AVAILABLE	N/A	POA
049	710-0892	NO LONGER AVAILABLE	N/A	POA
050	741-0486B	BEARING	£21.98	Add to
052	710-0654A	SCR:TTSEMS:3/8-16:1.000:HXLWSH	£5.10	Add to
053	682-0270650	NO LONGER AVAILABLE	N/A	POA
054	736-0160	WASH:FLAT:.530x.930x.050	£3.39	Add to
055	750-0664	SPACER	£3.90	Add to
056	731-1486	NO LONGER AVAILABLE	N/A	POA
057	682-7517637	REAR AXLE	£91.43	Add to
058	710-0778	HEX WASHER HEAD SCREW	£3.20	Add to
059	712-0711	NUT	£3.07	Add to
060	750-0289	SPACER	£10.42	Add to
061	736-0270	BELL WASHER	£3.91	Add to
062	710-0751	BOLT 069	£3.39	Add to
063	710-1017	TAP SCREW	£2.97	Add to
064	710-1220	SCREW	£2.81	Add to
065	17323	PLATE-HGT ADJ	£9.86	Add to
066	712-0400	U NUT	£5.75	Add to
067	747-0913-0637	FRAME GRASS BAG	£69.77	Add to
068	764-0458	GRASS BAG	£140.97	Add to
069	736-0119	LOCK WASHER 5/16	£3.33	Add to
070	712-3010	NUT 5/16 x 18	£2.77	Add to
071	782-7568-0637	REAR FLAP 782-7568	£53.51	Add to
072	736-0524B	SPR BLADE BELL	£8.61	Add to
073	742-0638	18 INCH BLADE	£26.40	Add to
074	753-06315	KIT BLADE ADAPTER	£28.95	Add to
075	710-1044	HEX BLOT 3/8-24 X 1.5 INCHS LONG	£4.74	Add to
080	736-0105	BELL WASHER	£3.33	Add to
083	734-1803	WHEEL ASSY (OBSOLETE) (OBSOLETE)	N/A
084	618-0136	TRANSMISSION	£198.26	Add to
085	720-0249	HUB CAP	£4.89	Add to
086	712-0414	WELD NUT 1/4-20 THREAD	£3.77	Add to
087	734-1791	NO LONGER AVAILABLE	N/A	POA
088	721-0216	SEAL-HGT ADJ	£8.82	Add to
089	738-0102	SHOULDER BOLT	£7.13	Add to
090	747-0623	HANDLE-CHUTE DOOR	£12.42	Add to
091	720-0387	SHRINKABLE TUBE PHTALAT FREE	£12.60	Add to
092	16855	PAWL PLATE	£8.97	Add to
093	714-0115	COTTER PIN	£3.42	Add to
094	748-0318	RATCHET WHEEL	£12.29	Add to
095	738-0137A	BOLT	£8.58	Add to
096	736-0105	BELL WASHER	£3.33	Add to
103	748-0188B	PAWL LH	£11.45	Add to
103A	748-0381	PAWL RH	£10.30	Add to
104	10622B	NYLON SPRING	£5.07	Add to
105	746-1006	6SPD ADJUSTING CABLE	£23.87	Add to
106	710-0841	SCREW	£4.89	Add to
107	731-1059	CABLE MOUNTING CAP	£8.97	Add to
108	731-1058	NO LONGER AVAILABLE	N/A	POA
109	731-0620A	LEVER	£13.21	Add to
110	731-1057	NO LONGER AVAILABLE	N/A	POA
111	714-0122	SQUARE KEY	£12.95	Add to
112	710-0497	THREADED PIN	£3.70	Add to
113	756-0554A	2.62 DIA PULLEY	£70.01	Add to
114	748-0358	SPACER:.880 ID x1.280 x.240	£3.69	Add to
115	736-0514	WASH:FLAT:.885 x 1.850 x.060	£3.07	Add to
116	756-0962	PULLEY-HALF-UPPER	£9.50	Add to
117	754-0327	V-BELT	£24.28	Add to
118	747-0914	ROD-LIFT INDEX	£18.48	Add to
119	714-0507	COTTER PIN 3/32 DIA	£3.13	Add to
120	638-0001637	AXLE ASM:FRONT:18" RD SGL LVR 638-0001	£58.36	Add to
121	710-0352	SCR:B-1/4-14:.375:HWINDWSH	£7.96	Add to
122	731-1514A	COVER-HARDTOP	£66.14	Add to
123	756-0961	NO LONGER AVAILABLE	N/A	POA
124	736-0513	WASHER:SPR:.890 x 1.70 x .048	£11.29	Add to
83A	734-1670	NO LONGER AVAILABLE	N/A	POA
85A	731-0981C	HUBCP:WHL:RADIAL SPOKE GREY 731-0981A	£9.70	Add to
85B	731-1426A	HUBCP:WHL:RADIAL SPOKE YELLOW 731-1426	N/A	POA
87A	734-1826	WHEEL ASSY W/TIRE 734-1510B	£50.98	Add to
