MTD015483

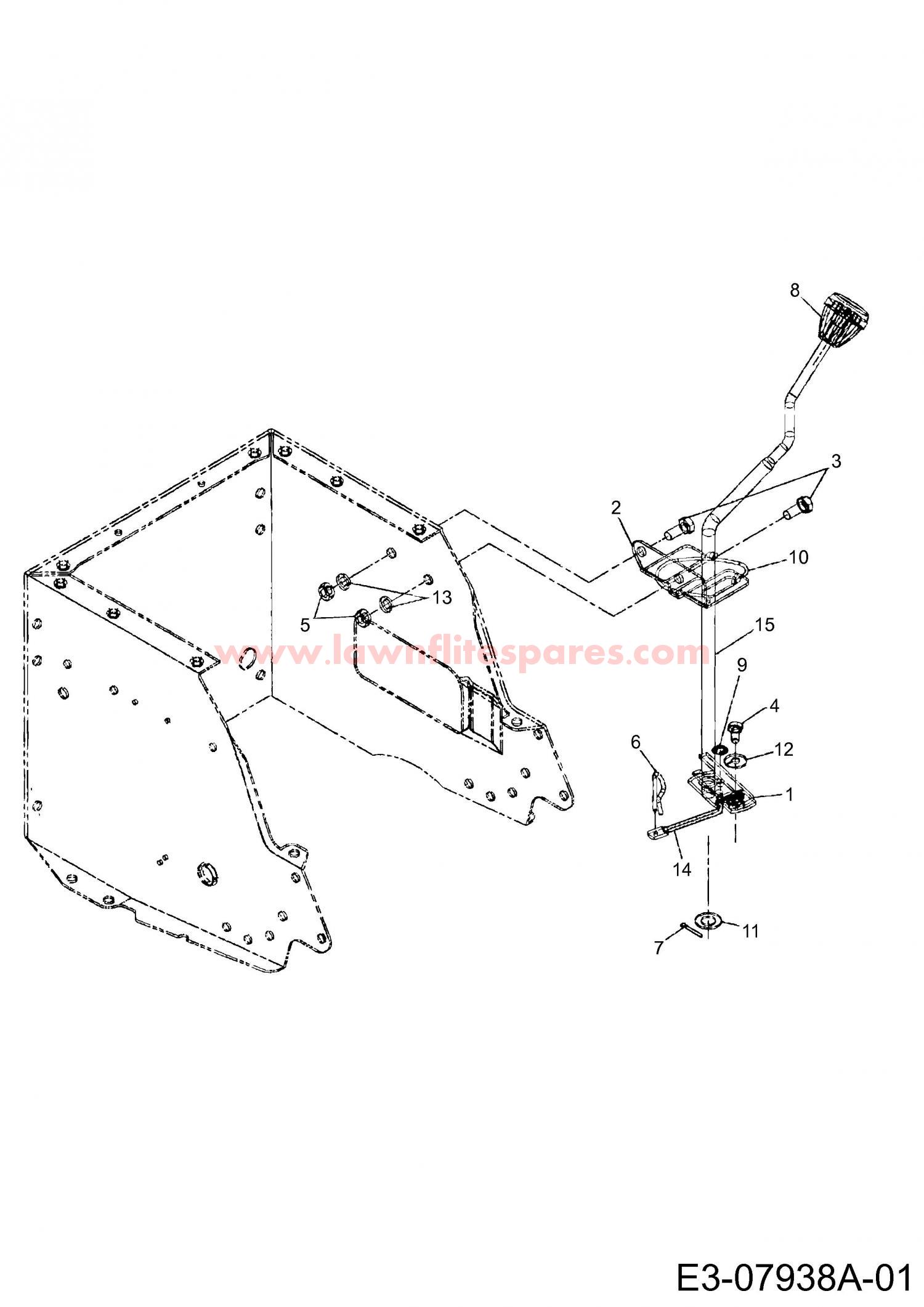

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	17178A	NO LONGER AVAILABLE	N/A	POA
002	783-1016B	BRKT:ROD:SPEED CONTROL	£8.99	Add to
003	710-1681	HEX BOLT M8 X 20 DIN 933 (RED)	£3.24	Add to
004	710-3013	SCREW HEX CAP	£3.39	Add to
005	712-0690	NUT:HEX:M8-1.25 DIN 934	£2.72	Add to
006	714-0209	INTERNAL COTTER PIN .125 DIA	£3.49	Add to
007	714-0507	COTTER PIN 3/32 DIA	£3.13	Add to
008	720-0232	KNOB:SHFT:1.60 OD X 1.56	£6.72	Add to
009	726-0231	CUP-RETAINER	£3.59	Add to
010	732-0525	COMP SPRING CLIP	£3.13	Add to
011	736-0226	WASHER:FLAT:.474 x.879 x.064	£3.39	Add to
012	736-0270	BELL WASHER	£3.91	Add to
013	736-0649A	WASHER:LOCK:B8:DIN 12 736-0649	£2.70	Add to
014	747-0685	CLUTCH LINK (OBSOLETE) (OBSOLETE)	N/A
015	747-0694AP3Z	NO LONGER AVAILABLE	N/A	POA
