MTD015470

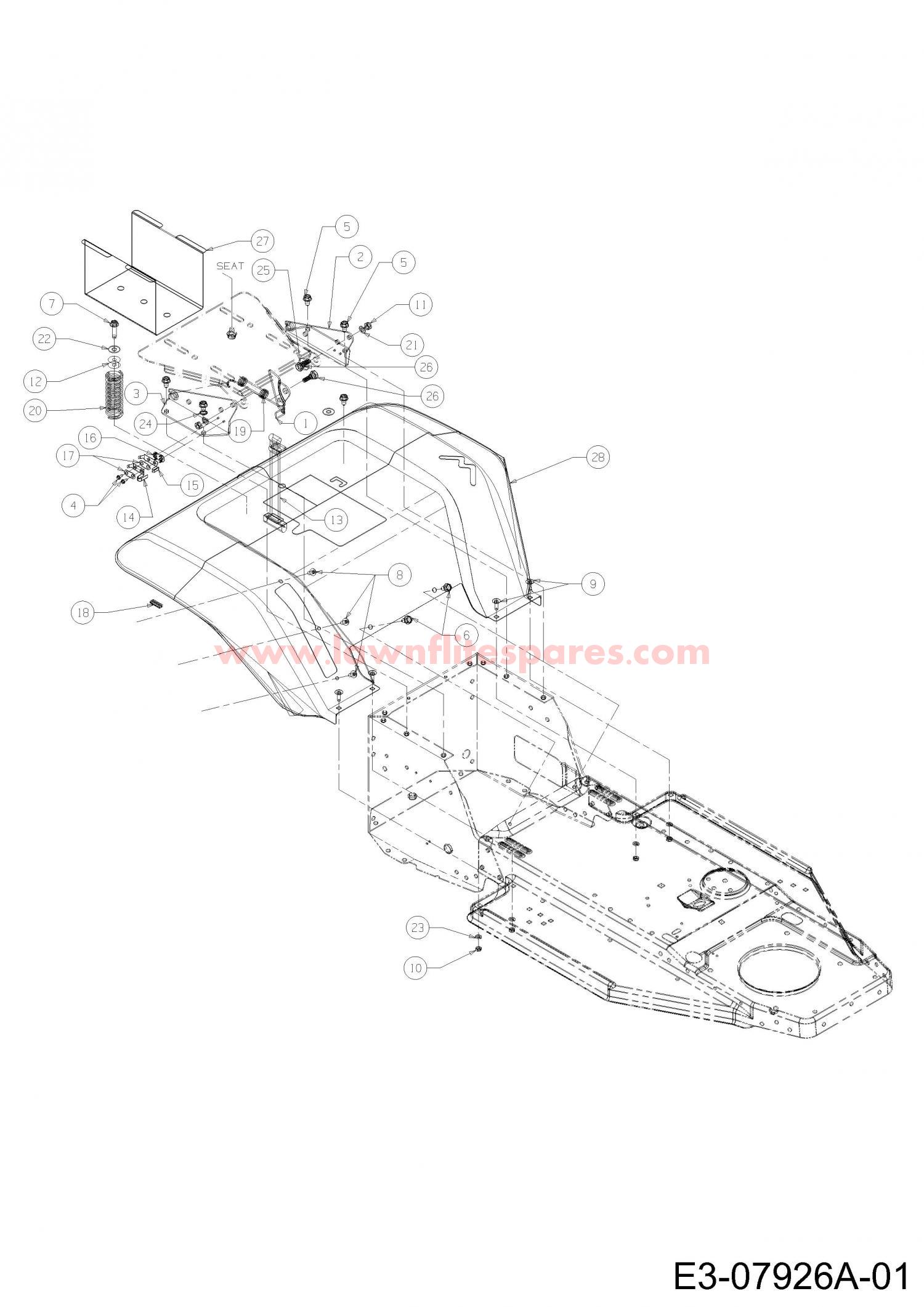

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	17239C	BRKT:LIFT:SEAT	N/A	POA
002	17703A	BRKT:SEAT:HGE:SUPT LH	£16.96	Add to
003	17704	BRKT:SEAT:HINGE:SUPPORT R.H.	£24.50	Add to
004	710-0227	SCR:AB:#8-18:0.500:HXINDWH	£3.07	Add to
005	710-0604A	SCREW	£3.62	Add to
006	710-0726	HEX SCREW AB 5/16-12:0.750	£3.19	Add to
007	710-0817	SCR:TT:5/16-18:1.250:HXINDWSH	£4.52	Add to
008	710-1017	TAP SCREW	£2.97	Add to
009	710-1687	BOLT	£3.26	Add to
010	712-0689	NUT:HEX:M6-1:DIN 934	£2.33	Add to
011	712-3010	NUT 5/16 x 18	£2.77	Add to
012	722-0160	ELASTEMER BUSHING .930 OD X .5	£3.20	Add to
013	723-0444	BATTERY STRAP	£24.86	Add to
014	725-1303	SW:OUTER SEAT SPRG	£3.26	Add to
015	725-1439	SW:INNER SEAT SPRG	£8.44	Add to
016	726-0278	INSULATING PLATE	£3.20	Add to
017	726-0279	INSULATING PLATE	£3.20	Add to
018	731-051181	EDGE GUARD 731-0511	£32.27	Add to
019	732-0581B	SPRG:EXTN:.75 OD X 5.31	£7.22	Add to
020	732-0588	SPRG:COMP 1.35 OD X 3,6	£13.94	Add to
021	736-0119	LOCK WASHER 5/16	£3.33	Add to
022	736-0159	WASH .349 ID X .879 OD X .063	£3.59	Add to
023	736-0329	L. WASHER	£3.26	Add to
024	736-0607	WASH:LOCK:5/16 EXT TOOTH	£3.31	Add to
025	736-0696	WASHER	£4.00	Add to
026	738-3024	NO LONGER AVAILABLE	N/A	POA
027	783-0349637	BATTERY TRAY	£34.84	Add to
028	783-0354	FENDER:HARDTOP ´96,400	N/A	POA
