MTD012177

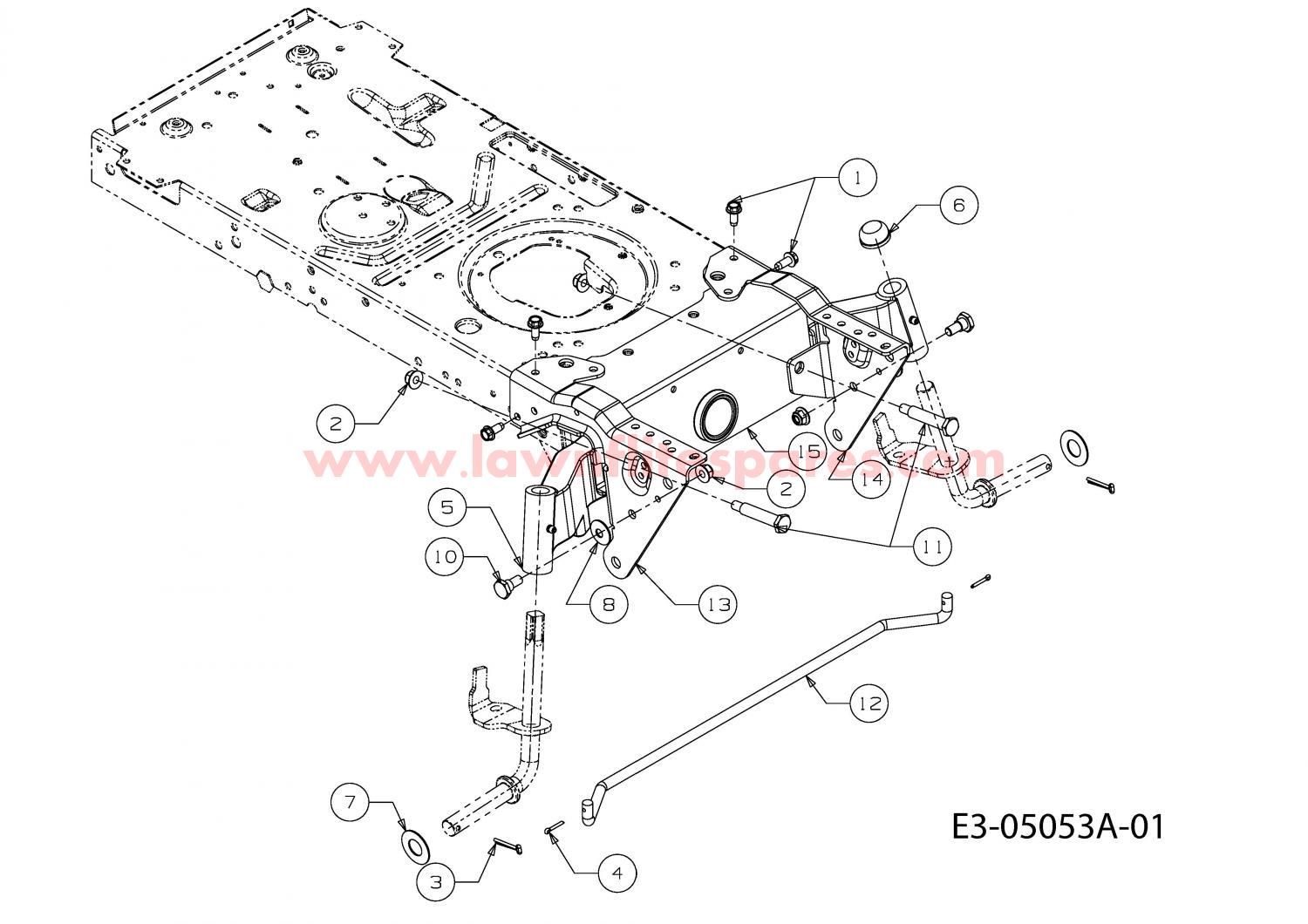

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	710-1260A	SCREW	£4.00	Add to
002	712-04065	NUT	£4.02	Add to
003	714-04039	PIN:COT:5/32:1.25	£4.70	Add to
004	714-0474	PIN (RED)	£3.20	Add to
005	719-04350	AXLE:PIVOT:BAR:CAST	£204.48	Add to
006	726-0341	CAP	£4.89	Add to
007	736-0316	WASHER	£5.97	Add to
008	736-0331	BELL WASHER	£3.95	Add to
010	738-0143	SHOULDER BOLT	£12.24	Add to
011	738-1011A	SHOULDER BOLT	£6.58	Add to
012	747-04772	STEERING ROD	£22.93	Add to
013	783-0726E	BRKT:PIVOT:SUPT RH	N/A	POA
014	783-0727D	BRKT:PIVOT:SUPT LH	£37.42	Add to
015	783-0728B637	BRKT:PIVOT:BAR 783-0728B	£47.01	Add to
