MTD010796

Parts list

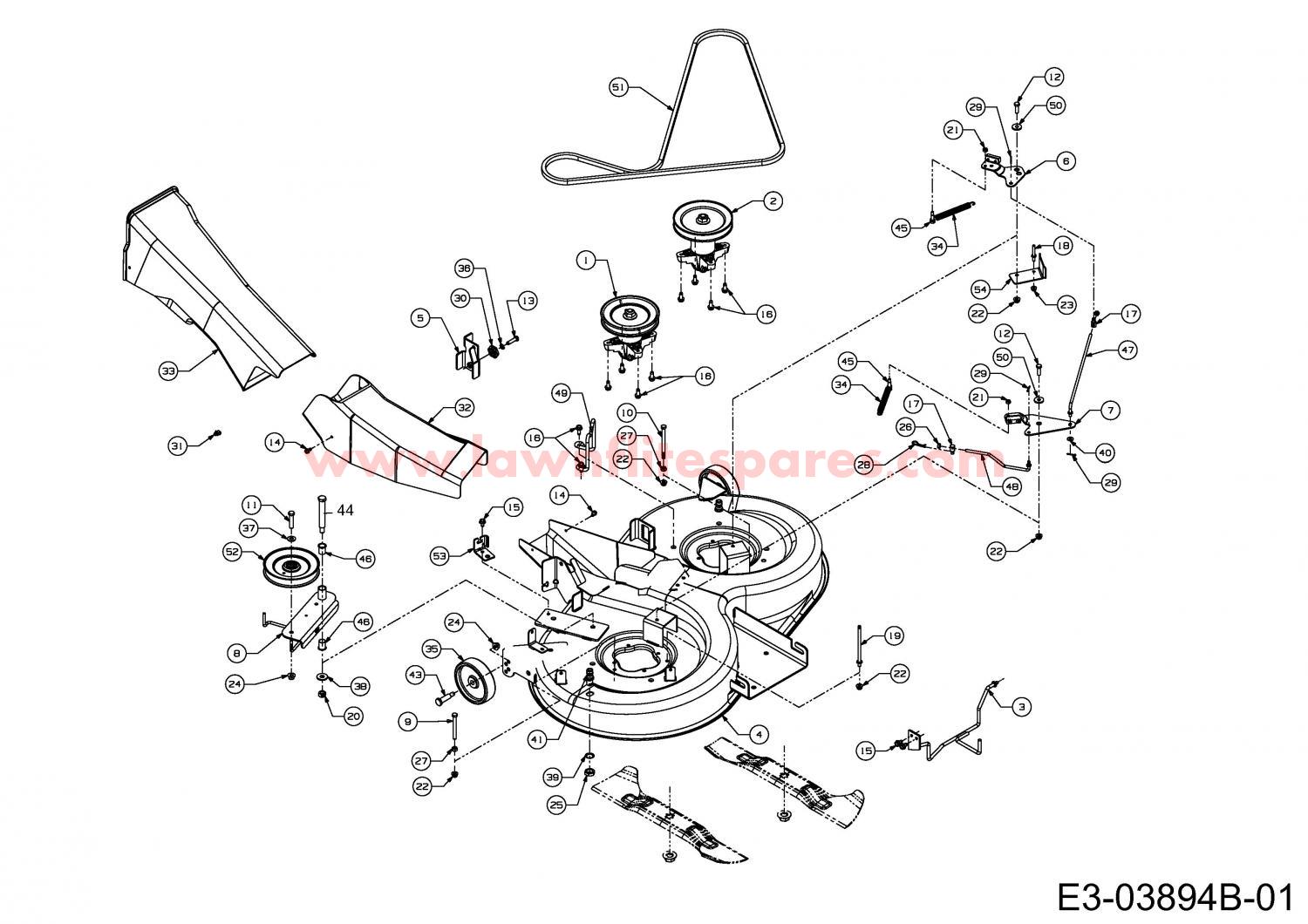

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	918-04657A	SPDL ASM V BELT PULLEY	£132.94	Add to
003	647-04143	ROD ASM:FR:105cm	N/A	POA
004	683-04390G-S	DECK ASM:105cm:LT-5	£462.35	Add to
005	683-04396637	BRKT ASM:DECK:HNGR ADJ	£24.00	Add to
006	983-04409	BRAKE ASM:DECK:30IN	£21.98	Add to
007	983-04417	BRAKE ASM:DECK	£21.70	Add to
008	683-04420	BRKT ASM:IDLR	N/A	POA
009	710-0189	HHCS:5/16-18:3.00:GR5:STD	£4.62	Add to
010	710-0190	HHCS:5/16-18:4.00:GR5:STD	£5.31	Add to
011	710-0347	HEX SCR	£3.72	Add to
012	710-0376	SCREW HEX CAP 5/16	£9.02	Add to
013	710-0528	SCREW (DNR)	£3.55	Add to
014	710-0599	HEX TT SCREW 1/4-20	£4.95	Add to
015	710-0607	SELF TAP SCREW	£4.71	Add to
016	710-1260A	SCREW	£4.00	Add to
017	711-0736	FERRULE-ADJ:1/4-20 x 1.00	£15.86	Add to
018	711-0993	BELT GUARD PIN Ò1/4 x 1.43	£4.50	Add to
019	711-1044A	PIN:BELT GUARD:5/16 x 4.75 LG	£7.41	Add to
020	712-0290	NUT 7/16 CAD P/T LOCK TYPE 5	£2.78	Add to
021	712-0291	LOCK-NUT	£2.77	Add to
022	712-04063	FLANGED NUT	£4.20	Add to
023	712-04064	NUT FLGLK 1/4 20 GRF NYLON	£6.63	Add to
024	712-04065	NUT	£4.02	Add to
025	712-0641	NUT	£6.47	Add to
026	712-3006	NUT	£2.77	Add to
027	712-3010	NUT 5/16 x 18	£2.77	Add to
028	714-0145	R CLIP	£2.78	Add to
029	714-0507	COTTER PIN 3/32 DIA	£3.13	Add to
030	717-04074	GEAR DECK ADJUSTMENT	£11.11	Add to
031	729-04033	NO LONGER AVAILABLE	N/A	POA
032	731-06251	LOWER CHUTE	£66.87	Add to
033	731-06252	UPPER CHUTE	£86.01	Add to
034	732-0604A	SPR:EXT: .56 DIA x 5.52 LG	£17.65	Add to
035	734-0973	WHEEL DECK 5in. DIA	£11.16	Add to
036	736-0119	LOCK WASHER 5/16	£3.33	Add to
037	736-0300	WASHER	£2.81	Add to
038	736-04097A	WASHER	£3.33	Add to
039	736-0760	WASHER	£4.01	Add to
040	736-3020	WASH:FLAT:.271 X.630 X.065	£2.98	Add to
041	737-04003D	NOZ:DECK:WATER	£19.14	Add to
043	738-0373	AXLE BOLT	£6.84	Add to
044	738-0476	SHOULDER SCREW	£4.70	Add to
045	738-3141	BOLT,SHOULDER	£8.03	Add to
046	741-0591	FLANGE BEARING	£3.44	Add to
047	747-04775	ROD:BRAKE:DECK	£20.78	Add to
048	747-04776	BRAKE ROD	£16.83	Add to
049	747-04840A	BELT KEEPER ROD	£12.50	Add to
050	748-0234	SHOULDER SPACER	£5.43	Add to
051	754-04174	BELT FOR N DECK (L T AUTO)	£75.33	Add to
052	756-04050	IDLER PULLEY	£38.38	Add to
053	783-04740	BRKT:CBL:DECK ENGAGE (OBSOLETE)	N/A
054	783-05868	PLT:BELT KEEPER	N/A	POA
