MTD010742

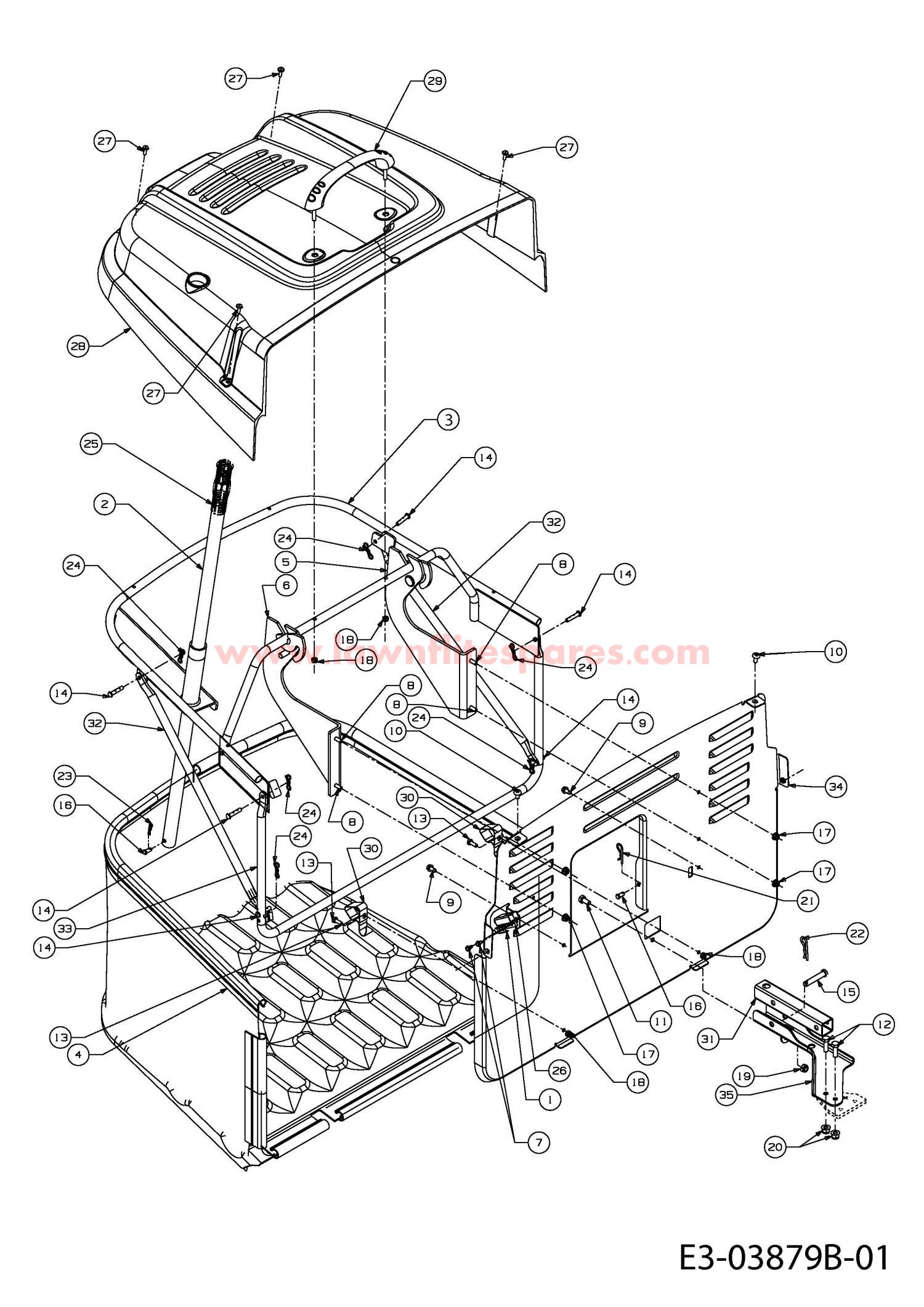

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	17962	PLT:SW	£4.66	Add to
002	649-04052637	TUBE LEVER BLACK	£26.48	Add to
003	649-04076	FRM ASM:TOP:200L (OBSOLETE)	N/A
004	664-04085	GRASS BAG TISSUE	£242.53	Add to
005	683-04421	BRKT ASM:PIVOT LH	N/A	POA
006	683-04422	BRKT ASM:PIVOT RH	N/A	POA
007	710-0224	NO LONGER AVAILABLE	N/A	POA
008	710-04666	HHFLG:1/4-20:.75:GR5	£7.18	Add to
009	710-0599	HEX TT SCREW 1/4-20	£4.95	Add to
010	710-1017	TAP SCREW	£2.97	Add to
011	710-1376	CAP SCREW	£4.50	Add to
012	710-1682	SCR:M8-1:25.00 LG:DIN 933	£2.98	Add to
013	710-1690	HHCS:M6-1:16.00	£3.39	Add to
014	711-04138	PIN	£4.11	Add to
015	711-0679A	CLEVIS PIN	£6.70	Add to
016	711-0701	CLEVIS PIN	£4.89	Add to
017	712-04064	NUT FLGLK 1/4 20 GRF NYLON	£6.63	Add to
018	712-0691	HEX NUT M6 DIN 985	£2.66	Add to
019	712-0692	HEX NUT	£3.10	Add to
020	712-0714	NUT:FLGLK:M8-1.25 DIN 6926	£3.80	Add to
021	714-0145	R CLIP	£2.78	Add to
022	714-0147	COTTER PIN	£3.51	Add to
023	714-04033	PIN:COT:INT .072 x.92 LG	£2.77	Add to
024	714-04040	PIN-COTTER	£4.38	Add to
025	720-0204	GRIP:1.0 ID x 4.7 LG	£12.60	Add to
026	725-04039	SW:INTLK:NO/NC:SCREW MT	£14.30	Add to
027	728-04044	RIV:4.8 x 16mm	£2.58	Add to
028	731-06106	CVR:GRSBG	£62.71	Add to
029	731-06163	HNDL:BAG:w/SCR 700	£45.14	Add to
030	732-0838A	SPRING	£6.95	Add to
031	749-04013A	TUBE:SQ 1 1/4x13 GA.x8.5 LG	N/A	POA
032	749-04108637	TUBE:CROSS:BAG 250L 500MR 749-04108	£20.64	Add to
033	749-04418	TUBE:TRT:200L	N/A	POA
034	783-05731	PLT:BAG:RR DIS LT5	N/A	POA
035	783-05801A	BRKT:HITCH:LT-5	N/A	POA
