MTD010473

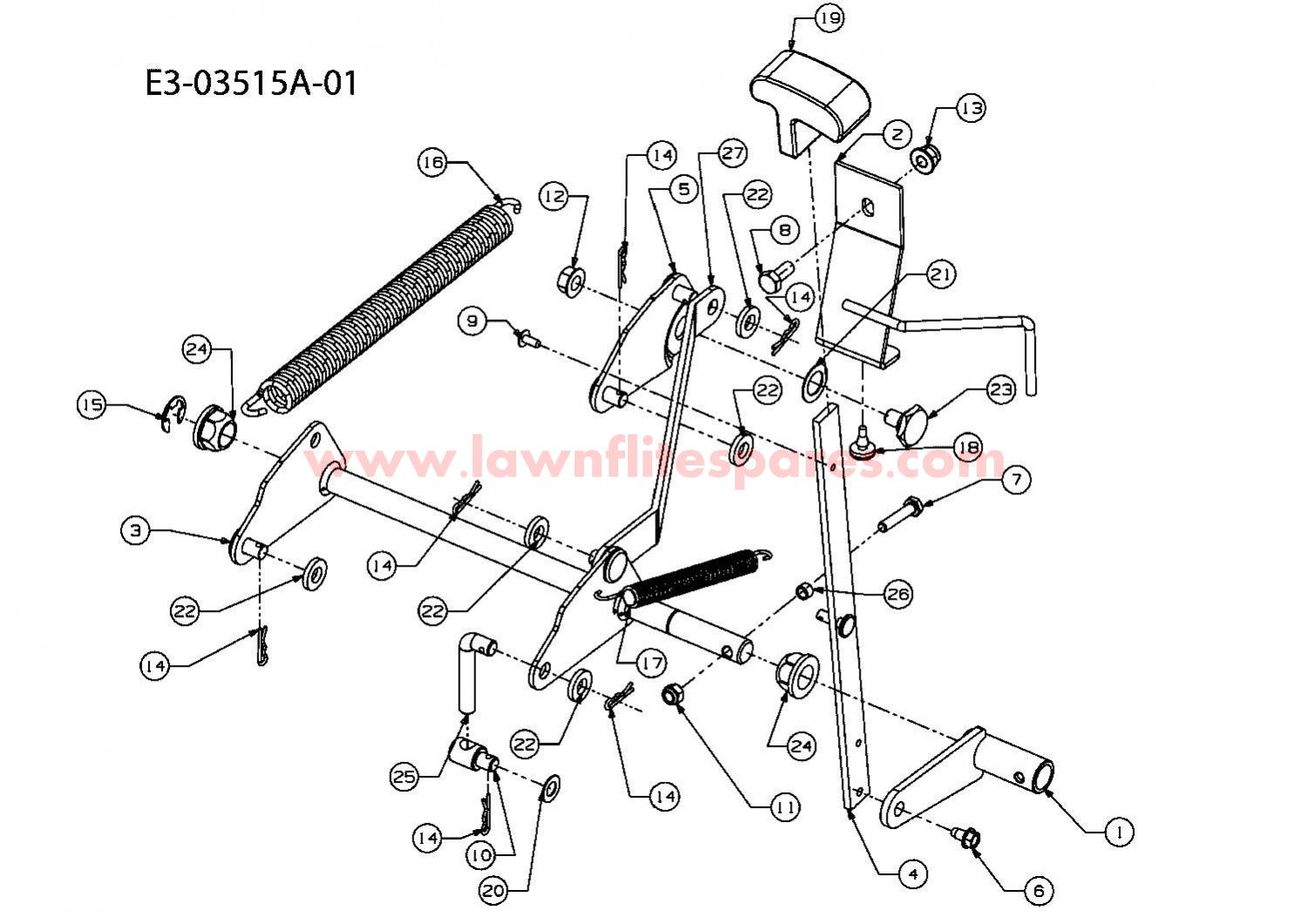

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	683-04393637	LVR ASM:DECK LIFT	£17.35	Add to
002	683-04404637	BRKT ASM:DECK STOP	£28.72	Add to
003	683-0441-Z	SHF ASM:LIFT:FRT 683-0441	£81.18	Add to
004	683-04411637	BRKT ASM:DECK HEIGHT ADJ	£34.86	Add to
005	683-0442-Z	BRKT ASM:PIVOT:LIFT:RR:ZINC PL	£14.63	Add to
006	710-0599	HEX TT SCREW 1/4-20	£4.60	Add to
007	710-0958	NO LONGER AVAILABLE	N/A	POA
008	710-1395	Screw 21.1441.69 (OBSOLETE) (OBSOLETE)	£3.85	Add to
009	710-1760	SCREW-TORX:#10-16:0.500	£3.31	Add to
010	711-0832	FERRULE:3/8-24x.375 DIA:HT TRT	£13.94	Add to
011	712-0324	HEX. INS L NUT	£3.69	Add to
012	712-0431	NUT	£3.20	Add to
013	712-0714	NUT:FLGLK:M8-1.25 DIN 6926	£3.80	Add to
014	714-0104	PIN INTERNAL COTTER	£2.78	Add to
015	716-0106A	RING E TYPE .625 DIA SHAFT	£3.33	Add to
016	732-0603	EXTENSION SPRING	£25.20	Add to
017	732-0814	SPRING 56 DIA x 5.52 LG	£11.51	Add to
018	735-0199A	BUMPER-RUBBER:.62 OD x.22 THK	£8.74	Add to
019	735-04101	HNDL:LVR	£10.13	Add to
020	736-0314	WASHER-THRUST	£2.97	Add to
021	736-0773	WASH:FLAT:16x22x1 DIN 988	£2.93	Add to
022	736-3010	WASH:FL:.407X.812X.135:HD	£2.85	Add to
023	738-0281	SCR:SHLDR:.625 x.17:3/8-16	£8.44	Add to
024	741-0225	HEX FLANGE BEARING	£4.92	Add to
025	747-1247	LINK:LIFT:ADJ Ø10mmX55mm LG	£38.38	Add to
026	750-04305	SPACER:6.60mm ID x9mm OD x5.69	£3.59	Add to
027	783-1136-Z	BRKT:LINK:LIFT UPR	£51.64	Add to
