MTD010471

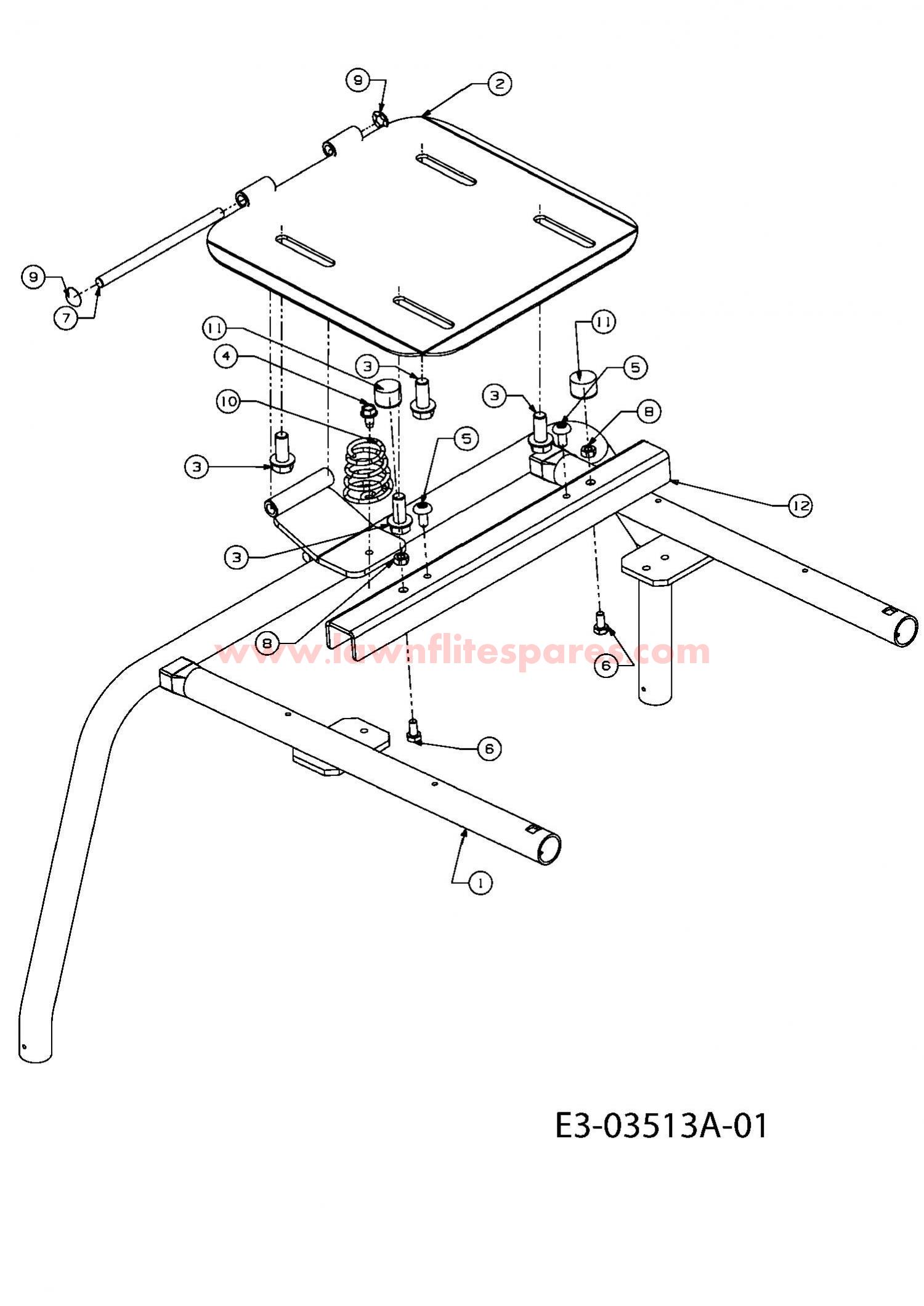

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	683-04388	FRM ASM:UPR	N/A	POA
002	683-04438	PLT ASM:SEAT	N/A	POA
003	710-04482	HHFLG:3/8-16:.875:GR5:STD	£3.24	Add to
004	710-0599	HEX TT SCREW 1/4-20	£4.95	Add to
005	710-1017	TAP SCREW	£2.97	Add to
006	710-1691	HEX. SCREW:M6X12 DIN 933 8.8	£4.11	Add to
007	711-04811	SHF:8mm DIA	N/A	POA
008	712-0689	NUT:HEX:M6-1:DIN 934	£2.33	Add to
009	0001031	KLEMMKAPPE 8 VERZINKT	£5.00	Add to
010	732-04470	SPRING-SEAT	£8.13	Add to
011	735-04121	BMPR:	£22.65	Add to
012	783-05578	BRKT:75B	N/A	POA
