MTD010466

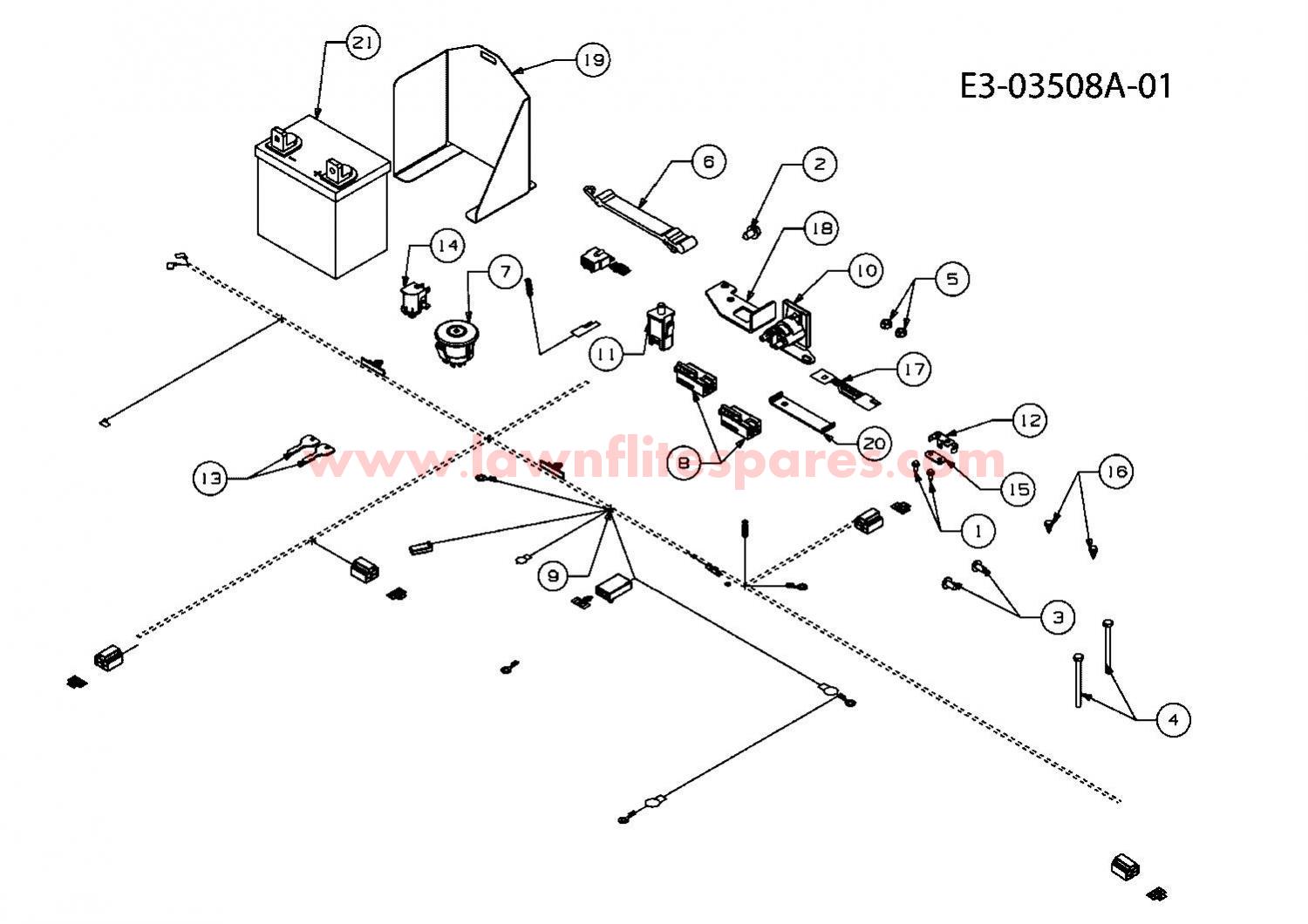

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	710-0227	SCR:AB:#8-18:0.500:HXINDWH	£3.07	Add to
002	710-0604A	SCREW	£3.62	Add to
003	710-1017	TAP SCREW	£2.97	Add to
004	710-1766	SCREW HHCS:M6-1:70.00:DIN 931	£4.50	Add to
005	712-0271	NUT:SEMS:1/4-20	£3.03	Add to
006	723-0383	STRAP ASSY-RETAINER	£9.93	Add to
007	725-04019	SW:KEY:3 POS DELTA	£51.02	Add to
008	725-04363	SWITCH	£18.57	Add to
009	725-04596	HARN:MARINA:B&S:ELECTRIC START	£136.37	Add to
010	725-1426A	SOLENOID	£24.30	Add to
011	725-1441B	SW:PLGR:NC/NC	£51.98	Add to
012	725-1644	SWITCH:SPRING:SHORT	£6.24	Add to
013	725-1745A	KEY SW UNIVERSAL	£8.09	Add to
014	725-3166	SWITCH SNAP MOUNT CLOSED/GREY	£15.69	Add to
015	726-0320	INSULATING PLATE	£2.97	Add to
016	738-04237	SCR:SHLDR:AB:#10-16:.500	£2.70	Add to
017	751B696379	HARNESS:DX 60 ELECTRIC START	£32.59	Add to
018	783-05576	BRKT:SAFETY STICKER	N/A	POA
019	783-05670	BRKT:BOX:BAT	N/A	POA
020	783-05788	BRKT:BAT:HLDDN	N/A	POA
021	EPB3117	BATTERY 12N14-3A (DRY)	£52.41	Add to
