MTD009675

Parts list

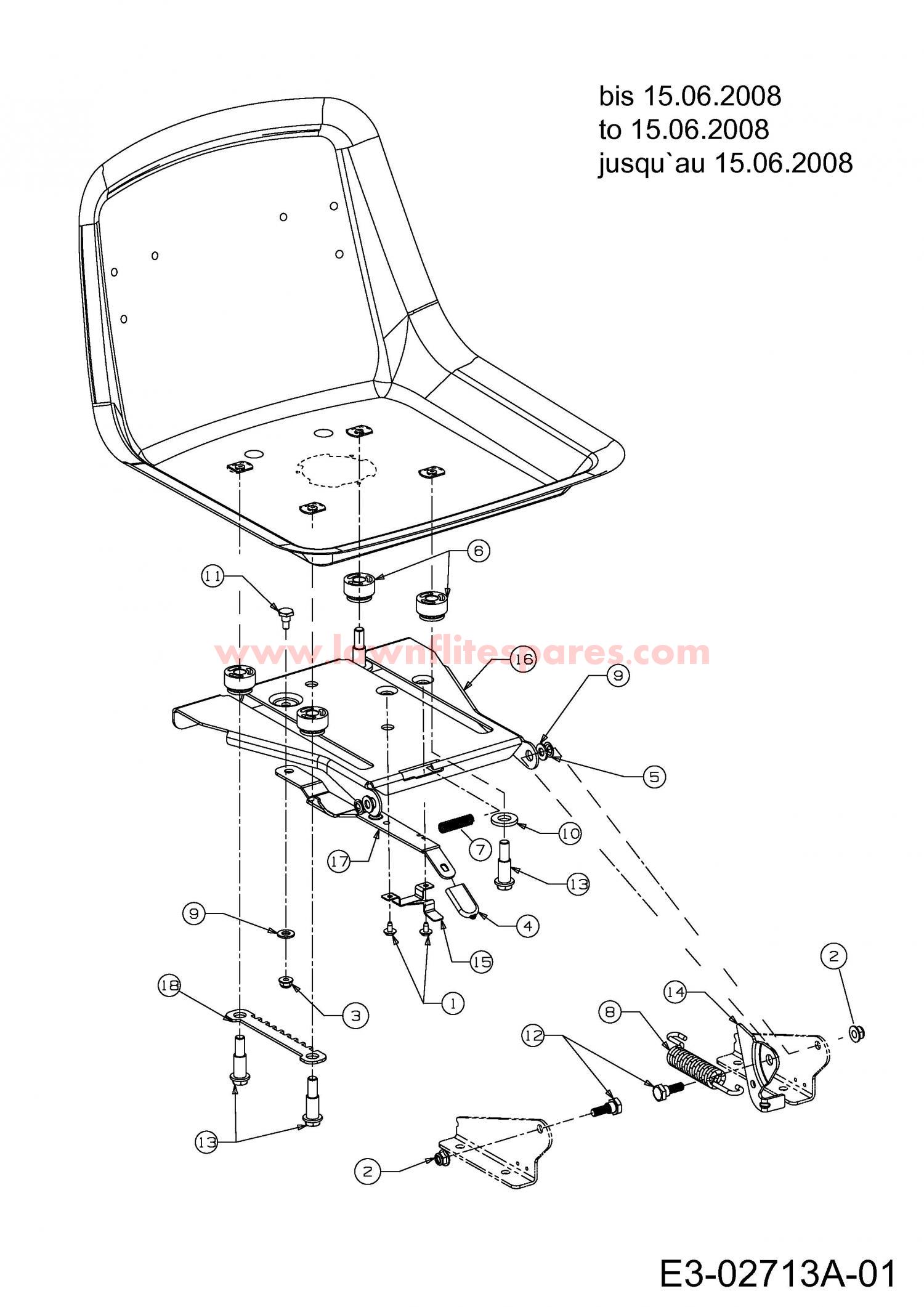

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001710-1268SCREW HEX WASHER HD TAPP£3.26 Add to
002712-04063FLANGED NUT£4.20 Add to
003712-04064NUT FLGLK 1/4 20 GRF NYLON£6.63 Add to
004720-0309AGRIP SEAT ADJUSTER£5.00 Add to
005726-0201SPEED NUT£3.10 Add to
006731-04074SPACER£4.38 Add to
007732-0499COMPRESSION SPRING£4.38 Add to
008732-1184SEAT SPRING£13.74 Add to
009736-0275WASH:FLAT:.344 x .688 x.065£3.07 Add to
010736-3019WASHER FLAT£5.39 Add to
011738-0137ABOLT£8.58 Add to
012738-3024NO LONGER AVAILABLEN/A POA
013738-0966ASCHR:SHLDR:.50X.925:3/8-16£5.24 Add to
014783-0209DBRKT:LIFT:SEAT£9.23 Add to
015783-0611637STOP:SEAT:ADJ 783-0611£13.04 Add to
016783-0738D637BRKT:PIVOT:SEAT£42.19 Add to
017783-0739A637SEAT LEVER ADJUSTER£22.19 Add to
018783-0753TOOTHED BRACKET£21.27 Add to
16A783-0738C650BRKT:PIVOT:SEATN/A POA
16B783-0738C665BRKT:PIVOT:SEATN/A POA
16C783-0738C716BRKT:PIVOT:SEATN/A POA
