MTD009462

Parts list

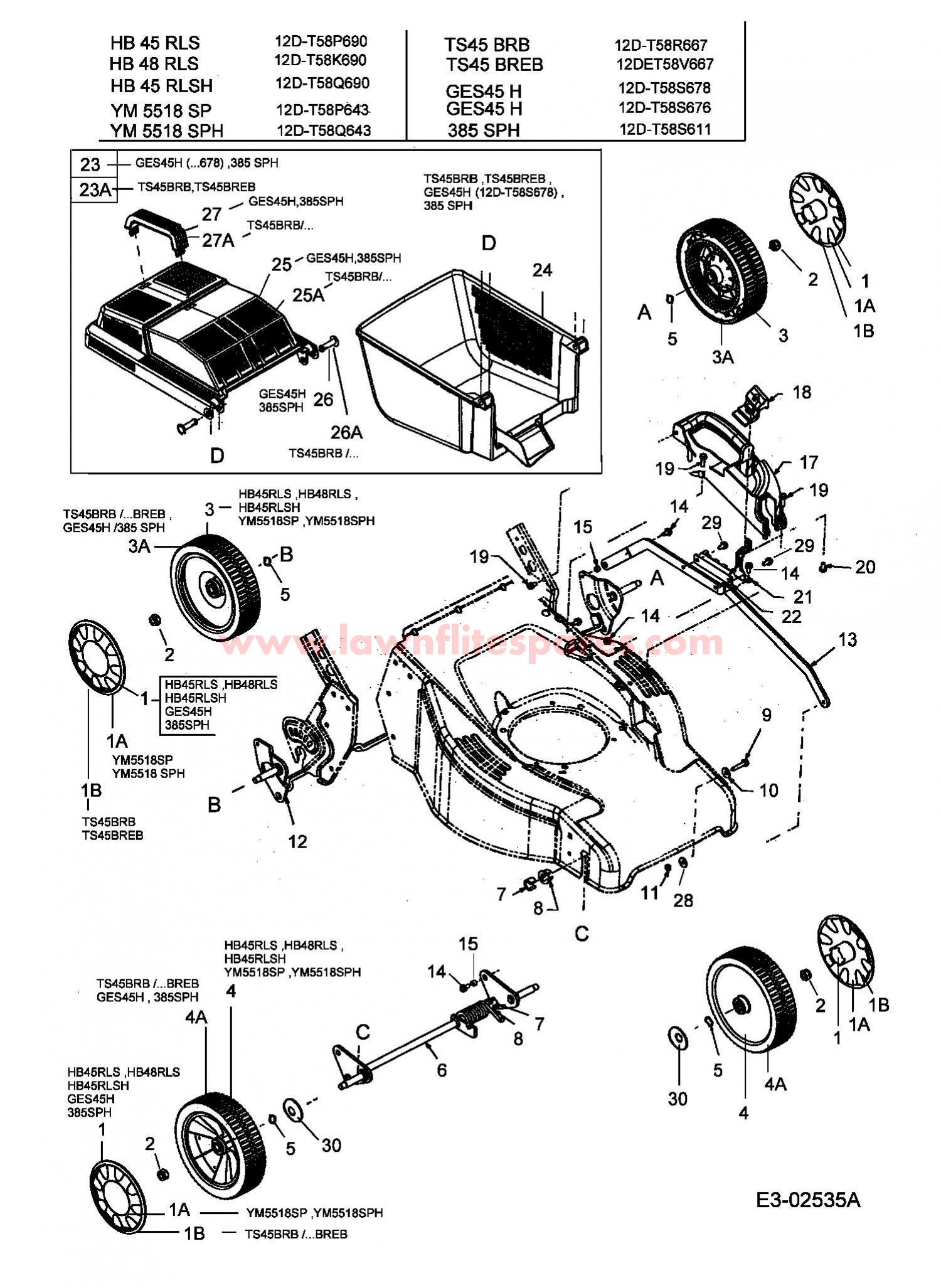

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	731-04750	HUBCP:WHL:T-DECK:OYSTER GRAY	£5.50	Add to
002	712-04074	NUT:HEX:M10x1.25 DIN 985	£2.79	Add to
003	734-04084	WHL:COMP:200x50 GEAR ELLIPSE	£45.93	Add to
004	734-04083	WHL:COMP:500x50 IDLE ELLIPSE	£41.59	Add to
005	736-0504	WAVE WASHER	£2.84	Add to
006	687-02081	AXLE ASM:WHL	£39.66	Add to
007	750-04268	SPCR:CLIP:12.5mm ID x 13 LG (OBSOLETE)	£4.70	Add to
008	741-0708	BRG:FLG:HEX SPLIT .500 ID	£13.90	Add to
009	710-1733	HEX. SCREW M8x35 DIN 933-8.8	£4.25	Add to
010	736-0702	WASHER	£2.40	Add to
011	712-0692	HEX NUT	£3.10	Add to
012	687-02110	BRKT ASM:PIVOT SP CENT HGT ADJ	£47.22	Add to
013	787-01157A	LINK:HGT:ADJ:33CM DECK	£43.45	Add to
014	710-04203A	SCR:M6x1:12 MM:DIN 7500	£5.19	Add to
015	750-04305	SPACER:6.60mm ID x9mm OD x5.69	£3.59	Add to
017	731-04592A	HNDL:HGT ADJ:"T" 731-04592	£27.42	Add to
018	731-04596A	HEIGHT ADJUST BUTTON	£9.38	Add to
019	710-04280A	SCR:M6x1:25mm:DIN 7500	£3.31	Add to
01A	731-04618	HUBCP:WHL:"T" YARDMAN W/SPRIG	£7.92	Add to
01B	731-04751	HUBCP:WHL:T-DECK:OYSTER GRAY	£5.50	Add to
020	710-04030	SCR:HL:1/4-20:.5:PANPHI	£3.61	Add to
021	787-01156B	BRACKET	£18.66	Add to
022	787-01155C	HEIGHT ADJUSTER BRACKET	£11.88	Add to
023	811-000161	E-TEIL-SET	N/A	POA
024	731-04637	LOWER GRASS BAG	£61.59	Add to
025	731-04654	GRASS CATCHER HALF-ABOVE 731-1955637	£62.29	Add to
026	731-04659	NO LONGER AVAILABLE	N/A	POA
027	731-04664	GRIP 731-1956637	£10.65	Add to
028	736-0695A	WASHER	£3.20	Add to
029	710-0653	HEX SCREW, 1/4-20 X 3/8"	£4.22	Add to
030	736-0331	BELL WASHER	£3.95	Add to
03A	734-04078	WHL ASM:200mm:RWD ELP SLV	£39.89	Add to
04A	734-04079	WHL:COMP:500x50 IDLE ELLIPSE	£40.89	Add to
23A	811-000163	GRASFANGKORB: T-DECK MOOSGRÛN	£62.38	Add to
25A	731-04656	GRASS CATCHER HALF-ABOVE 731-1955668	£62.38	Add to
26A	731-04657	BEARING BOLT ( GRASS BOX ) 731-1817668	£6.91	Add to
27A	731-04666	GRIP 731-1956668	£10.65	Add to
