MTD009461

Parts list

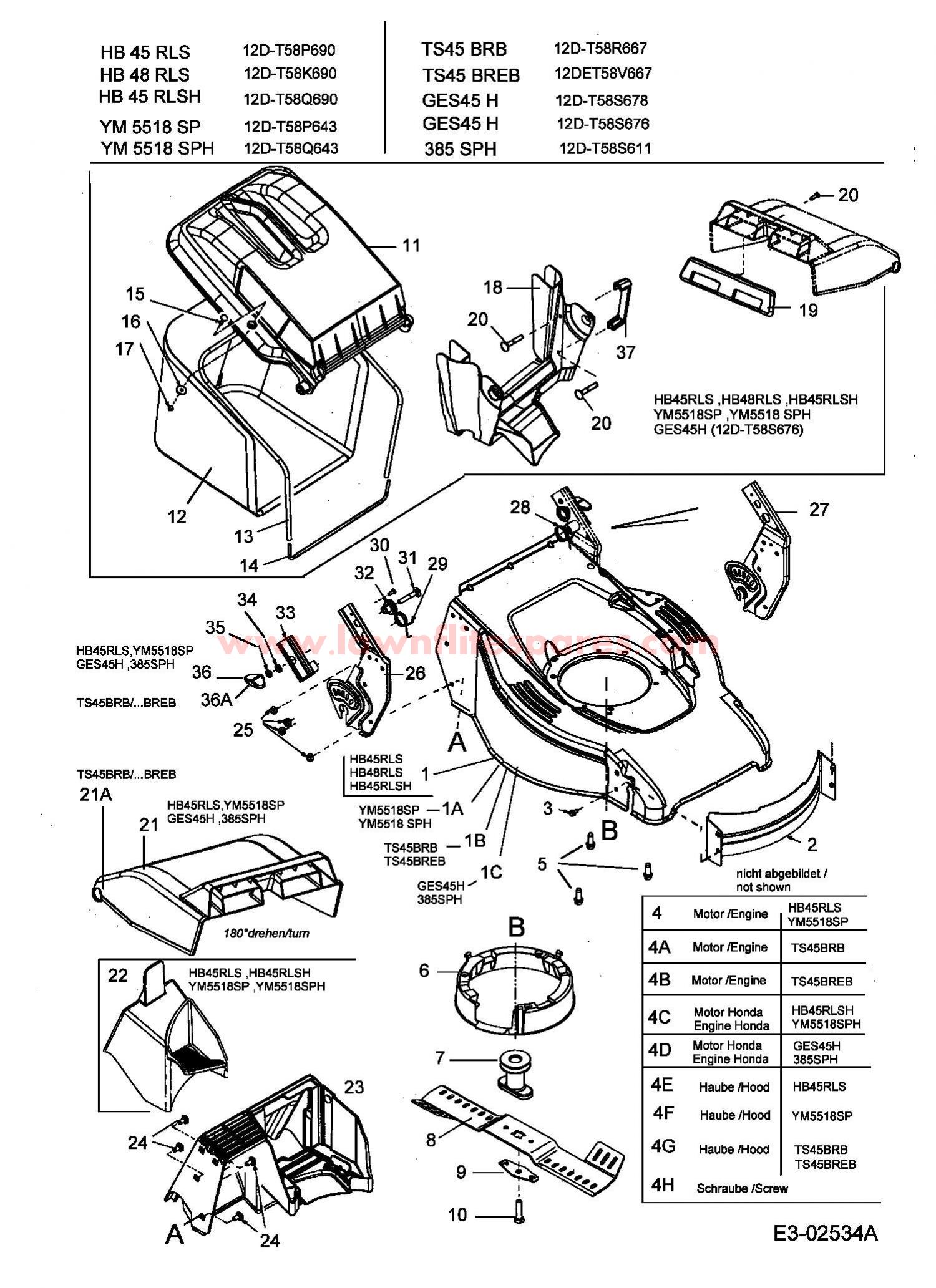

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001787-01146650DECK 18" CENTRAL HA£112.27 Add to
002787-01173A637N/A POA
003710-04203ASCR:M6x1:12 MM:DIN 7500£5.19 Add to
004752B1905B1B&S ENGINEN/A POA
005710-0502ASCR:TTSEMS:3/8-16:1.250:HXLWSH£7.56 Add to
006731-05487BFL DECK CNTR£27.17 Add to
007748-04016AADAP:BLADE:22" ONE PIECE£39.10 Add to
008742-04060BLADE:45cm:T-DECK W/STAR£36.92 Add to
009736-0524BSPR BLADE BELL£8.61 Add to
010710-1044HEX BLOT 3/8-24 X 1.5 INCHS LONG£4.74 Add to
011731-04632AGRSBG:HRDTP:T-DECK 731-04632N/A POA
012764-04044GRSBG:CLOTH:T-DECK£44.00 Add to
013749-04130TUBE:FRM:GRSBG:T-DECK£21.14 Add to
014747-04212ROD:FRM:GRSBG:T-DECK£13.36 Add to
015710-04220BOLT:CRG:M6-1 x 25 mm LG£3.31 Add to
016736-0176WASHER:FLAT:.265 x .938 x .120£5.70 Add to
017712-0691HEX NUT M6 DIN 985£2.66 Add to
018631-04162GRSBG:FRT:T-DECK 731-04611£28.72 Add to
019731-04661COVER:DOOR:T-DECK BLACK£36.37 Add to
01A787-01146665DECK 18" CENTRAL HA£106.98 Add to
01B787-01146668DECK 18" CENTRAL HA£106.98 Add to
01C787-01146638DECK 18" CENTRAL HA£106.98 Add to
020710-1704SCR:TORX:M6x20 WN 1452£4.62 Add to
021731-04650DOOR BLACK£73.87 Add to
022731-04635PLUG:MULCH:T-DECK£60.59 Add to
023731-04630BFL:RR:T-DECK£41.18 Add to
024710-04217SCR:SHLDR:12mm SQ:M8 CUSTOM£4.50 Add to
025712-0692HEX NUT£3.10 Add to
026787-01161637BRKT ASM:HANDLE:SP:RH 687-02118£30.38 Add to
027787-01162637BRKT:HANDLE:SP:LH 687-02116£31.14 Add to
028732-04193ANO LONGER AVAILABLEN/A POA
029732-04194ATORSION SPRING£9.42 Add to
030710-1777SCR:TORX:50x14:WN 1451£3.20 Add to
031710-1719BOLT£4.89 Add to
032748-04036INSULATING WASHER 079.06.307£4.50 Add to
033731-04587ANO LONGER AVAILABLEN/A POA
034736-0700FLAT WASHER£2.63 Add to
035736-0689L-WASHER£3.26 Add to
036720-0368WING NUT£5.19 Add to
037720-04048HNDL:PLASTIC£11.55 Add to
04A752B1904B1ENGINE B&S QUANTUM£393.96 Add to
04B752B1903B1B-MOTOR B&S QUANTUM 5.0 HP ESN/A POA
04C752H638591ENGINE HONDAN/A POA
04D752H636760MOTOR HONDA GCV 160 5.5 HP£535.00 Add to
04E731-1397ASHROUD GRAY£36.08 Add to
04F731-1402BNO LONGER AVAILABLEN/A POA
04G731-1694BSHROUD:ENG:QUAN BLACK STYLE 3£22.77 Add to
04H710-1256SCR:HL:#8-18:1.250:PANPHI£8.53 Add to
21A731-04653REAR FLAP 731-1822668£47.73 Add to
36A720-04047WING NUT£8.32 Add to
