MTD009335

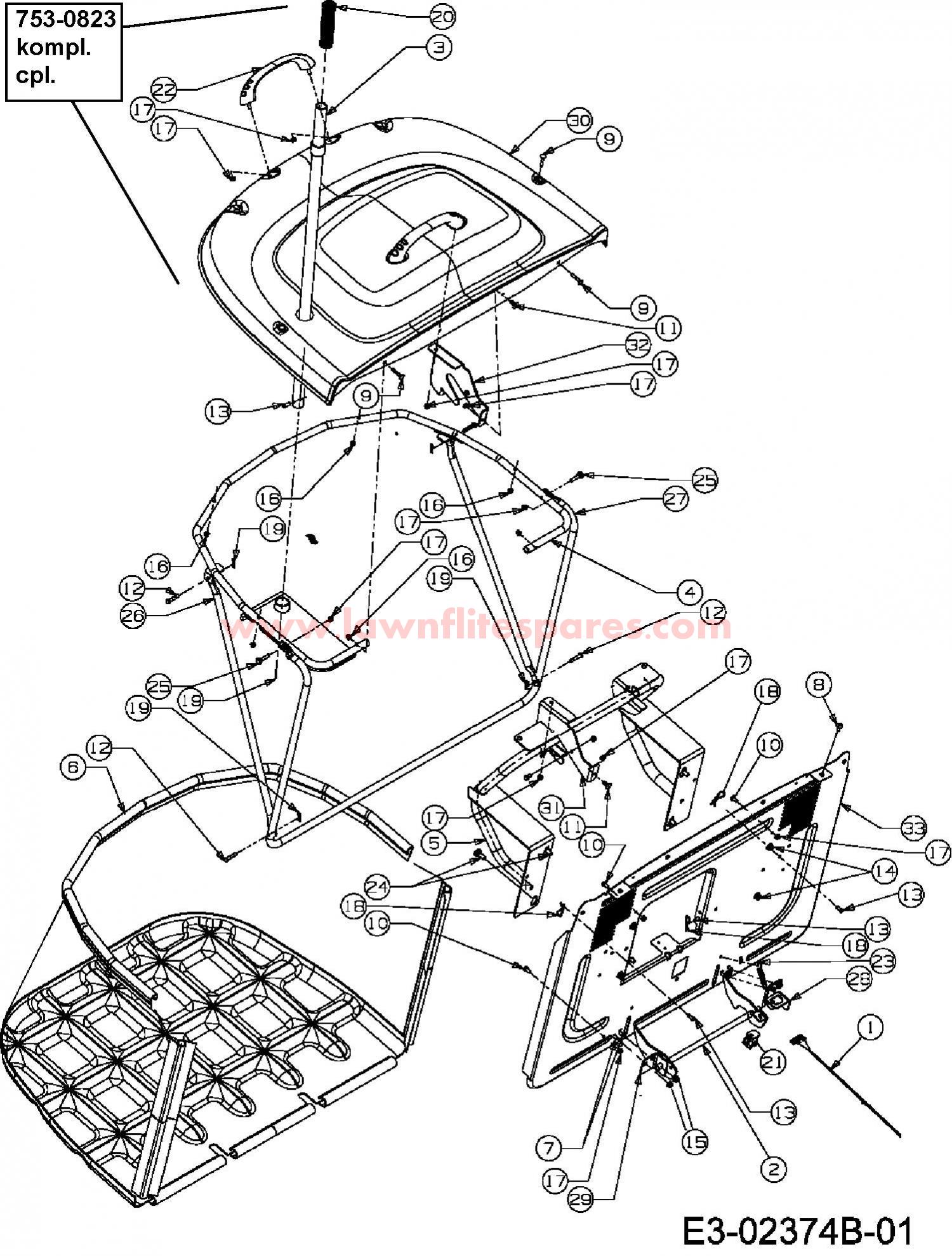

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	629-1101B	HARN ASM:500:BAG PRESENT	£25.91	Add to
002	647-0063B	LATCH ASM:BAG 250L/300L	£31.44	Add to
003	649-04052637	TUBE LEVER BLACK	£26.48	Add to
004	649-04028	FRM ASM:TOP:BAG 250L 500	N/A	POA
005	649-04036	TUBE ASM:FRM:250L 500 MR/500	N/A	POA
006	664-0114A	NO LONGER AVAILABLE	N/A	POA
007	710-0134	BOLT	£3.03	Add to
008	710-1017	TAP SCREW	£2.97	Add to
009	710-1612	BOLT:CRG:5mm x 30.0 LG	£5.69	Add to
010	710-1691	HEX. SCREW:M6X12 DIN 933 8.8	£4.11	Add to
011	710-1765	SCR:TORX:M6-1 x 15.00	£2.93	Add to
012	711-04138	PIN	£4.11	Add to
013	711-0701	CLEVIS PIN	£4.89	Add to
014	712-04063	FLANGED NUT	£4.20	Add to
015	712-04064	NUT FLGLK 1/4 20 GRF NYLON	£6.63	Add to
016	712-0642	NUT FLGLK M5 0.8	£2.68	Add to
017	712-0691	HEX NUT M6 DIN 985	£2.66	Add to
018	714-0145	R CLIP	£2.78	Add to
019	714-04033	PIN:COT:INT .072 x.92 LG	£2.77	Add to
020	720-0204	GRIP:1.0 ID x 4.7 LG	£12.60	Add to
021	725-3167	SW:MT:SNAP NO	£24.68	Add to
022	731-04578	HANDLE	£9.37	Add to
023	732-0264	EXTENSION SPRING	£10.47	Add to
024	738-0140	SHLD SCREW	£6.03	Add to
025	738-1183	SCR:SHLDR:9.5mmX5mm:M6-1X24 LG	£3.85	Add to
026	749-04010637	TUBE:SUPT:CROSS GRSBG 250/300 749-04010	£33.38	Add to
027	749-1412637	TUBE:FRM:FRT:BAG 250L/300L 749-1412	£82.12	Add to
028	783-04622	BRKT:LATCH:MT:SW BAG 450/500	N/A	POA
029	783-04623	BRKT:MT:LATCH BAG 450/500	N/A	POA
030	783-04627	CVR:BAG:HT:250L	N/A	POA
031	783-04642A	BRKT:HOOK:RH:BAG 250L 500	N/A	POA
032	783-04643A	BRKT:HOOK:LH:BAG 250L 500	N/A	POA
033	783-04834	PLT:END:RR DIS:500	N/A	POA
