MTD009293

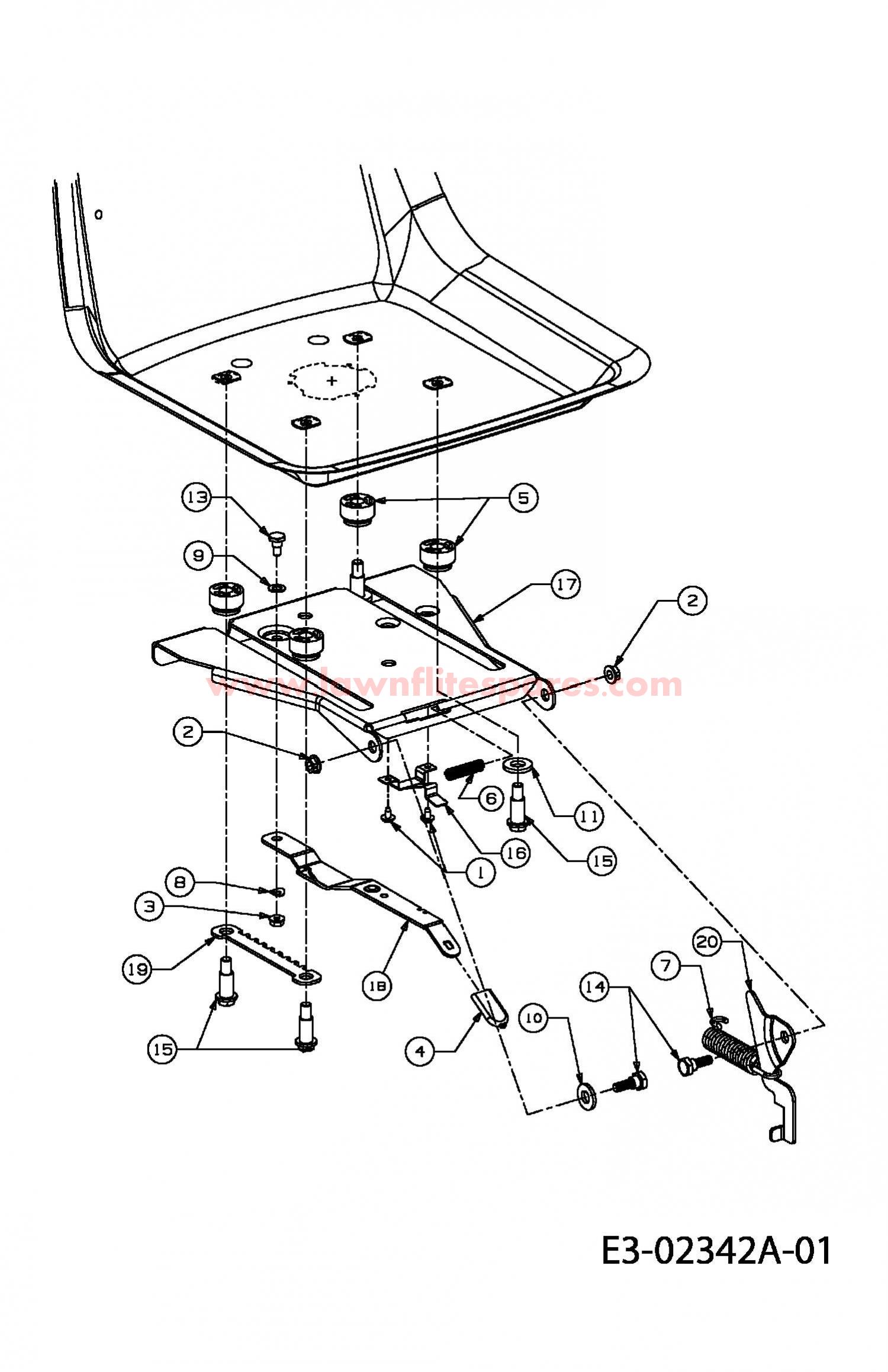

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	710-1268	SCREW HEX WASHER HD TAPP	£3.26	Add to
002	712-3004A	HEX FLANGE NUT	£2.97	Add to
003	712-3027	LOCK NUT	£2.79	Add to
004	720-0309A	GRIP SEAT ADJUSTER	£5.00	Add to
005	731-04074	SPACER	£4.38	Add to
006	732-0499	COMPRESSION SPRING	£4.38	Add to
007	732-1184	SEAT SPRING	£13.74	Add to
008	736-0175	SPRING WASHER	£3.39	Add to
009	736-0204	F.I. WASHER	£3.59	Add to
010	736-0696	WASHER	£4.00	Add to
011	736-3019	WASHER FLAT	£5.39	Add to
013	738-0137A	BOLT	£8.58	Add to
014	738-3024	NO LONGER AVAILABLE	N/A	POA
015	738-0966	THREADED BOLT	£5.08	Add to
016	783-0611637	STOP:SEAT:ADJ 783-0611	£13.04	Add to
017	783-0738B	BRACKET PIVOT SEAT	N/A	POA
018	783-0739A637	SEAT LEVER ADJUSTER	£22.19	Add to
019	783-0753	TOOTHED BRACKET	£21.27	Add to
020	783-1366B	SEAT LIFT BRACKET	£10.74	Add to
