MTD009230

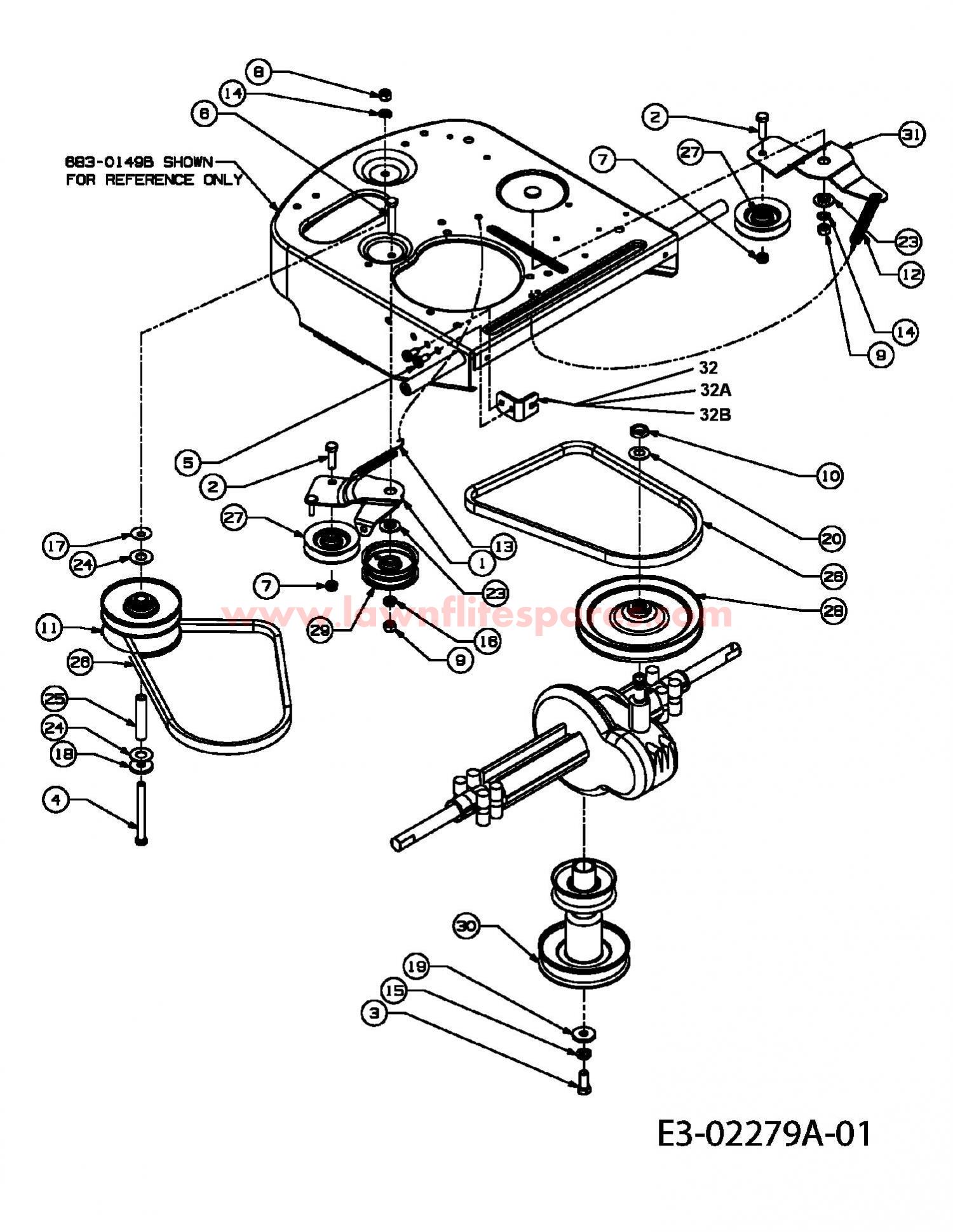

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	683-0147C-Z	BRACKET ASSY- IDLER 683-0147	N/A	POA
002	710-0191	HEX BOLT (RED)	£7.13	Add to
003	710-0314	HEX BOLT	£5.49	Add to
004	710-0902	SCREW HHCS:3/8-24:3.75:GR5:STD	£15.40	Add to
005	710-1611B	SCREW SELF TAP	£5.88	Add to
006	710-3096	NO LONGER AVAILABLE	N/A	POA
007	712-0116	HEX NUT	£3.96	Add to
008	712-0241	HEX NUT 3/8-24	£2.79	Add to
009	712-3017	NUT:JAM:3/8-16:GR5	£2.97	Add to
010	712-3035	NUT:JAM:9/16-18:GRADE 5	£3.59	Add to
011	717-0884	NO LONGER AVAILABLE	N/A	POA
012	732-0814	SPRING 56 DIA x 5.52 LG	£11.51	Add to
013	732-0815A	SPRING	£15.73	Add to
014	736-0169	L. WASHER	£2.89	Add to
015	736-0171	WASHER	£2.93	Add to
016	736-0217	H.L. WASHER (RED)	£4.89	Add to
017	736-0219	BELL WASHER (RED)	£3.58	Add to
018	736-0247	F.I. WASH	£8.70	Add to
019	736-0322	FI-WASH	£8.68	Add to
020	736-0427	BELL:WASH:.567 x 1.125 x .06	£3.31	Add to
023	738-0968	SPACER	£11.79	Add to
024	741-0405	NO LONGER AVAILABLE	N/A	POA
025	750-0705	SLV:SPCR:.56:2.71	£18.27	Add to
026	754-0453	V BELT	£53.72	Add to
027	756-04213	PULLEY	£19.77	Add to
028	756-0650	PUL:TRANS:7.0x5/8-36	£84.67	Add to
029	756-0981B	PUL:IDLR:FLAT 2.75 OD	N/A	POA
030	756-1189	PULLEY 756-0658	£169.83	Add to
031	783-0528	BRKT:IDLR:VARI SPEED TRANS	£19.17	Add to
032	783-0529637	783-0529 / SCHWARZ LACKIERT	£17.46	Add to
32A	783-0529637	783-0529 / SCHWARZ LACKIERT	£17.46	Add to
32B	783-0529665	783-0529 / YM GREEN LACKIERT	£17.46	Add to
