MTD008908

Parts list

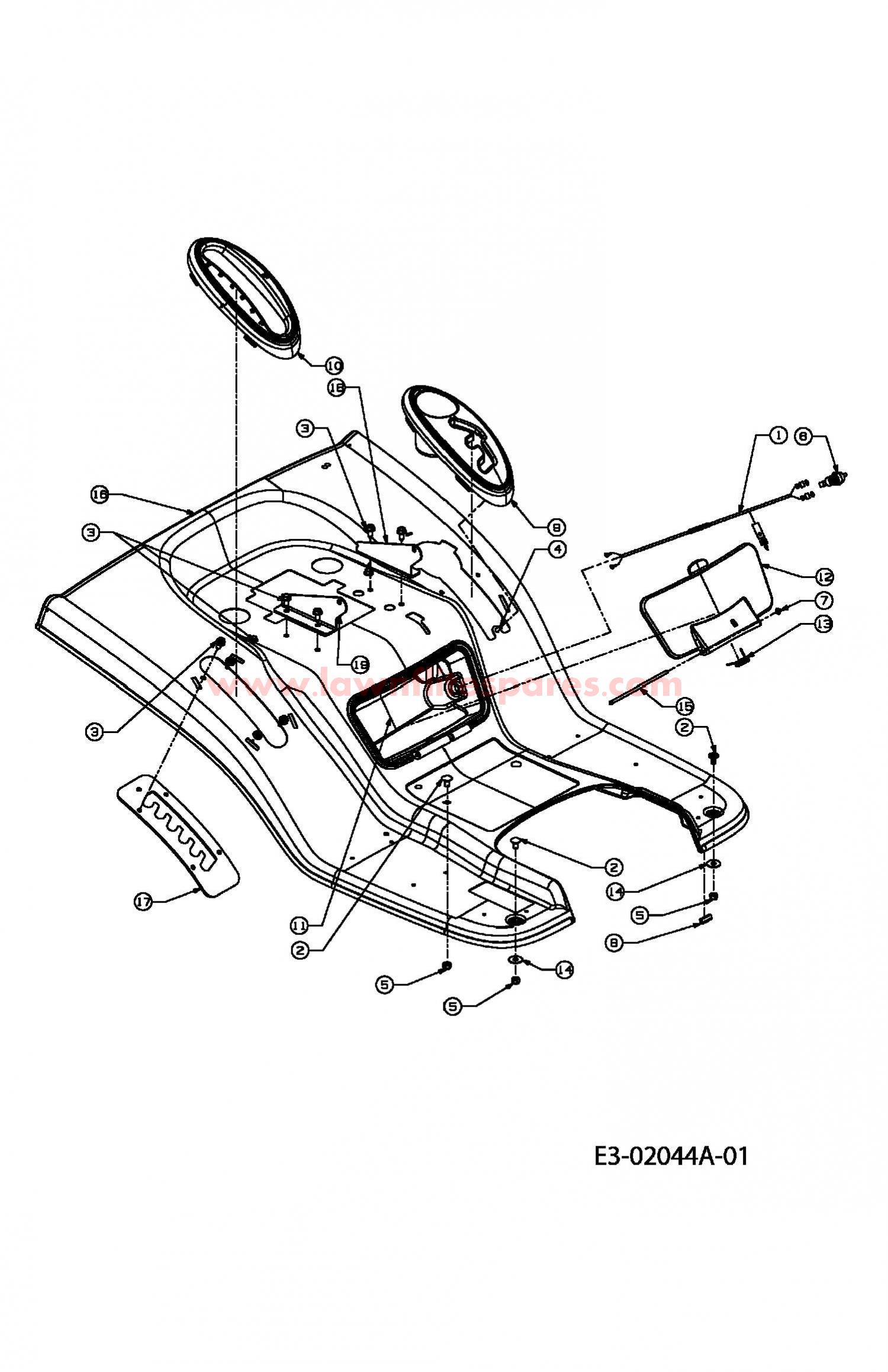

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001629-1102AHARN ASM:500:POWER OUTLET£15.67 Add to
002710-0260ABOLT:CRG: 5/16-18:.62 GR5£2.93 Add to
003710-0726HEX SCREW AB 5/16-12:0.750£3.19 Add to
004710-1394SREW:PLASTITE:KB 60X16 WN 1451£2.98 Add to
005712-0429NUT HEX.INS L NUT£4.92 Add to
006725-2015ELEC:POWER OUTLET£26.06 Add to
007726-0111CAP£3.59 Add to
008731-051181EDGE GUARD 731-0511£32.27 Add to
009731-2545COVER:SHF:W/CUP HOLDER£19.38 Add to
010731-2546ACOVER:LIFT:LEVER£15.05 Add to
011731-2547TOOL BOX£20.49 Add to
012731-2561TOOLBOX COVER£12.84 Add to
013732-3150ASPRING£3.59 Add to
014736-3078WASH:FLAT:.344 x 1.00 x 063:HD£4.23 Add to
015747-1307ROD:PIVOT:TOOLBOX£3.80 Add to
016783-1399FDR:500 RD W/TOOLBOXN/A POA
017783-1404ABRKT:LIFT:ADJ:E/N/J-Deck£30.35 Add to
018783-1496637BRKT:SEAT:MOUNT:LH 783-1496£8.01 Add to
019783-1500637BRKT:SEAT:MOUNT:RH 783-1500£8.01 Add to
