MTD008876

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

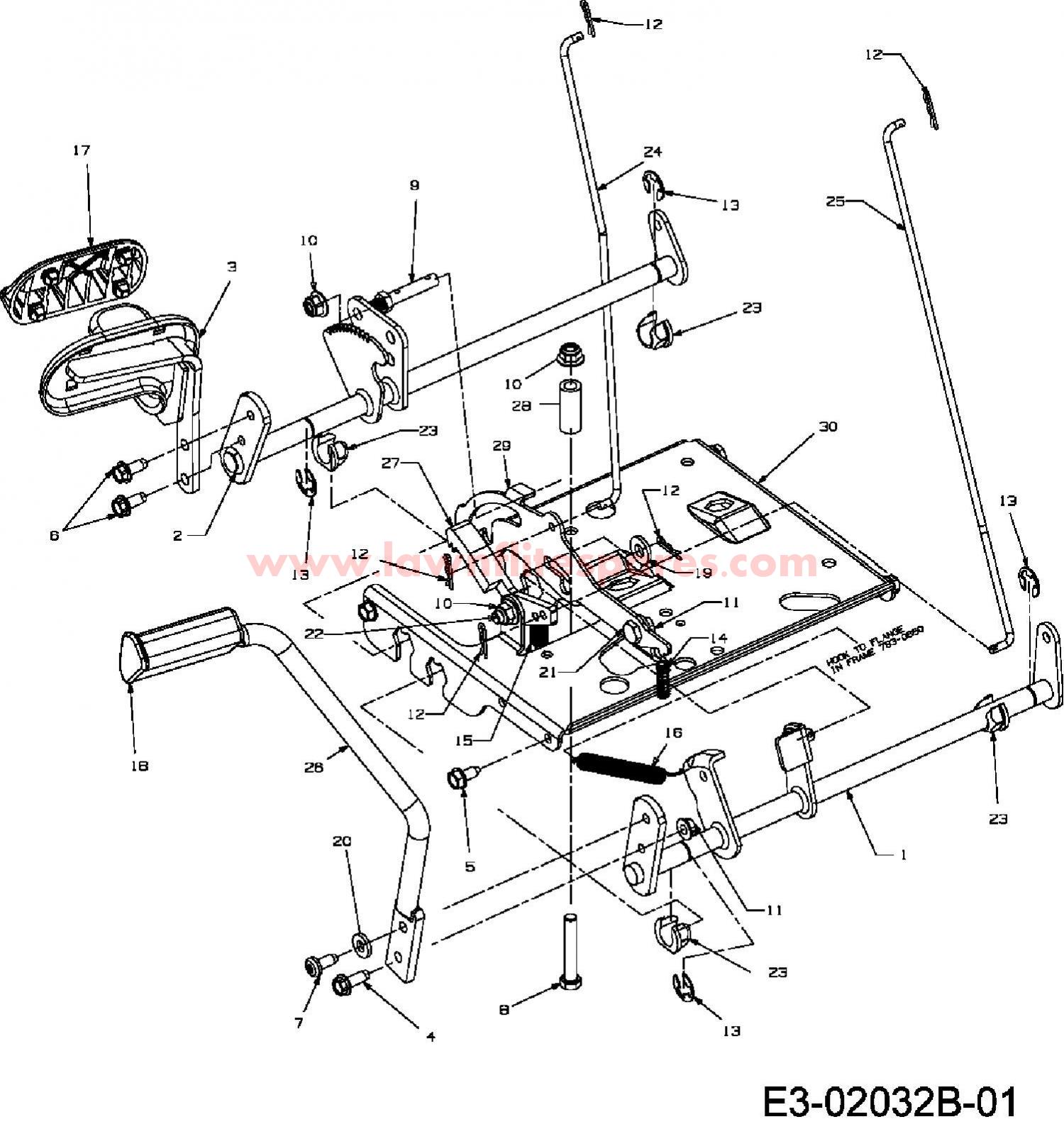

Ref	No	Description	Price
001	647-0057C	CONT ASM:BRAKE:500	N/A	POA
002	647-0062C	CONT ASM:HYDRO:500 LONG	N/A	POA
003	683-0267C637	PED ASM:CONT:HYDRO 683-0267C	£54.44	Add to
004	710-0650	SCREW	£3.58	Add to
005	710-0726	HEX SCREW AB 5/16-12:0.750	£3.19	Add to
006	710-1260A	SCREW	£4.00	Add to
007	710-1611B	SCREW SELF TAP	£5.88	Add to
008	710-3011	BOLT 3/8 X 2-1/4 TYPE 5	£5.52	Add to
009	711-04159A	PIN:3/8-16 x 2.68 LG (OBSOLETE) (OBSOLETE) (OBSOLETE)	N/A
010	712-04065	NUT	£4.02	Add to
011	712-3004A	HEX FLANGE NUT	£2.97	Add to
012	714-0104	PIN INTERNAL COTTER	£2.78	Add to
013	716-0106A	RING E TYPE .625 DIA SHAFT	£3.33	Add to
014	732-0335	SPRING	£3.51	Add to
015	732-0955	SPR:EXTN:.50 OD x 1.41 LG	£3.20	Add to
016	732-0963	SPRING	£9.72	Add to
017	735-0662	PAD:CONT	£19.91	Add to
018	735-3049A	FOOTBRAKE PAD	£20.22	Add to
019	736-3004	FLAT WASHER	£2.77	Add to
020	736-3008	WASH:FL:.344 X.750 X.120	£3.49	Add to
021	738-0155	BOLT:SHLDR:.435 x.160:5/16-18	£7.50	Add to
022	738-0380	SCR:SHLDR:.500x.270:3/8-16	£10.48	Add to
023	741-3065B	BRG HEX FLG .628 ID SPLIT	£6.54	Add to
024	747-04093	ROD-BRAKE	£16.16	Add to
025	747-04096	ROD:CONT:CRUISE:8&9 STYLE	£14.06	Add to
026	747-04641A-S	BRAKE PEDAL 747-04641637	£25.91	Add to
027	748-04039B	LATCH:CRUS	£32.45	Add to
028	748-0415B	SPACER	£7.72	Add to
029	783-0663E	BRKT:LKOUT:HYDRO	£15.67	Add to
030	783-1335C	BRKT:SUPT:STRG:500	N/A	POA
