MTD008716

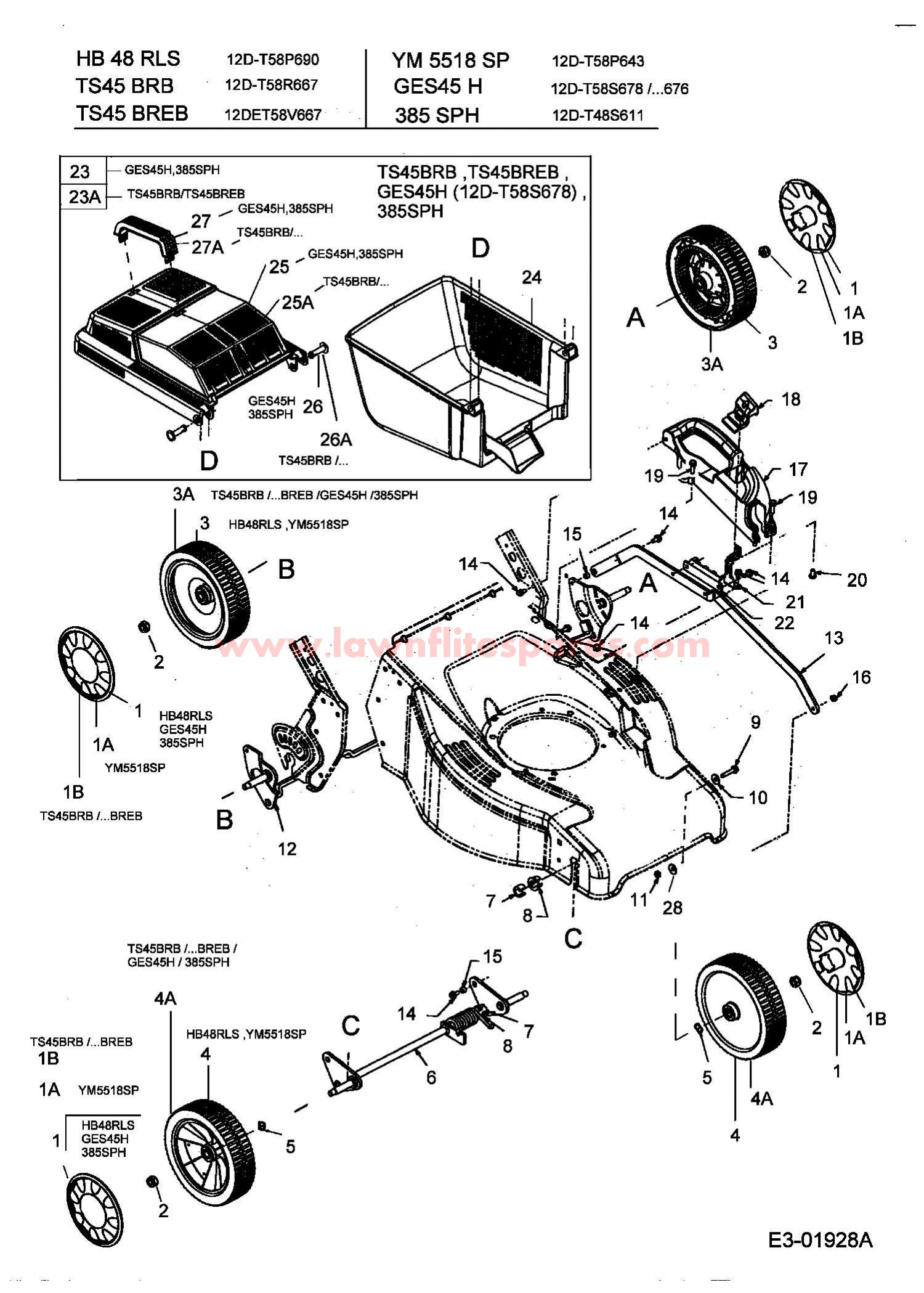

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001731-04750HUBCP:WHL:T-DECK:OYSTER GRAY£5.50 Add to
002712-04074NUT:HEX:M10x1.25 DIN 985£2.79 Add to
003734-04084WHL:COMP:200x50 GEAR ELLIPSE£45.93 Add to
004734-04083WHL:COMP:500x50 IDLE ELLIPSE£41.59 Add to
005736-0504WAVE WASHER£2.84 Add to
006687-02081AXLE ASM:WHL£39.66 Add to
007750-04268SPCR:CLIP:12.5mm ID x 13 LG (OBSOLETE)£4.70 Add to
008741-0708BRG:FLG:HEX SPLIT .500 ID£13.90 Add to
009710-1733HEX. SCREW M8x35 DIN 933-8.8£4.25 Add to
010736-0702WASHER£2.40 Add to
011712-0692HEX NUT£3.10 Add to
012687-02110BRKT ASM:PIVOT SP CENT HGT ADJ£47.22 Add to
013787-01157LINK:HGT:ADJ:33CM DECK£30.02 Add to
014710-04203ASCR:M6x1:12 MM:DIN 7500£5.19 Add to
015750-04305SPACER:6.60mm ID x9mm OD x5.69£3.59 Add to
016712-0691HEX NUT M6 DIN 985£2.66 Add to
017731-04592AHNDL:HGT ADJ:"T" 731-04592£27.42 Add to
018731-04596AHEIGHT ADJUST BUTTON£9.38 Add to
019710-04210SCR:M6x1:20mm:DIN 7500£3.59 Add to
01A731-04618HUBCP:WHL:"T" YARDMAN W/SPRIG£7.92 Add to
01B731-04751HUBCP:WHL:T-DECK:OYSTER GRAY£5.50 Add to
020710-04030SCR:HL:1/4-20:.5:PANPHI£3.61 Add to
021787-01156BBRACKET£18.66 Add to
022787-01155AHEIGHT ADJUSTER BRACKET£17.18 Add to
023811-000161E-TEIL-SETN/A POA
024731-04637LOWER GRASS BAG£61.59 Add to
025731-04654GRASS CATCHER HALF-ABOVE 731-1955637£62.29 Add to
026731-04659NO LONGER AVAILABLEN/A POA
027731-04664GRIP 731-1956637£10.65 Add to
028736-0695AWASHER£3.20 Add to
03A734-04078WHL ASM:200mm:RWD ELP SLV£39.89 Add to
04A734-04079WHL:COMP:500x50 IDLE ELLIPSE£40.89 Add to
23A811-000163GRASFANGKORB: T-DECK MOOSGRÛN£62.38 Add to
25A731-04656GRASS CATCHER HALF-ABOVE 731-1955668£62.38 Add to
26A731-04657BEARING BOLT ( GRASS BOX ) 731-1817668£6.91 Add to
27A731-04666GRIP 731-1956668£10.65 Add to
