MTD008707

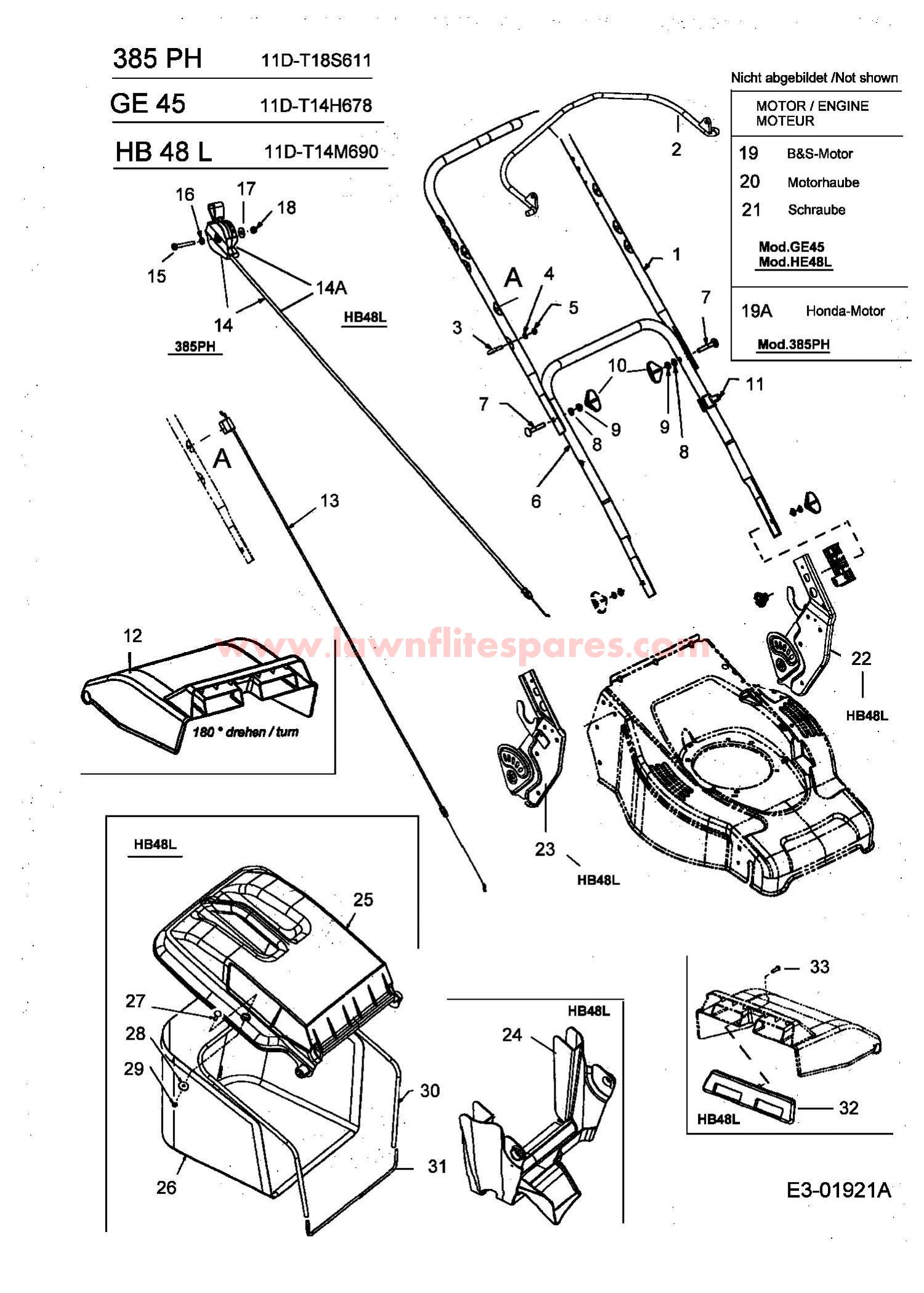

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	749-1217637	NO LONGER AVAILABLE	N/A	POA
002	747-04118637	BRAKE BAIL 747-1050637	£21.89	Add to
003	782-7627A	EYE BOLT	£6.28	Add to
004	736-0668	WASHER	£2.23	Add to
005	712-0691	HEX NUT M6 DIN 985	£2.66	Add to
006	749-1196A637	NO LONGER AVAILABLE	N/A	POA
007	710-1719	BOLT	£4.89	Add to
008	736-0700	FLAT WASHER	£2.63	Add to
009	736-0689	L-WASHER	£3.26	Add to
010	720-0368	WING NUT	£5.19	Add to
011	731-1820	CBL:GDE	£3.20	Add to
012	731-04650	DOOR BLACK	£73.87	Add to
013	746-1053	BRAKE CABLE	£26.10	Add to
014	746-04144	NO LONGER AVAILABLE	N/A	POA
015	710-04603	SCR:M6x50mm:DIN 7985	£3.66	Add to
016	736-0668	WASHER	£2.23	Add to
017	736-0685	WASHER	£3.26	Add to
018	712-0691	HEX NUT M6 DIN 985	£2.66	Add to
019	752B0248B1	B&S ENGINE	N/A	POA
020	731-1587A	SHRD:ENG:QUATRO S2 MTD BLACK	£25.11	Add to
021	710-1184	SCR:MACH:#10-32:2.000:PANPHI	£2.90	Add to
022	687-02115637		N/A	POA
023	687-02117637		N/A	POA
024	631-04162	GRSBG:FRT:T-DECK 731-04611	£28.72	Add to
025	731-04632A	GRSBG:HRDTP:T-DECK 731-04632	N/A	POA
026	764-04025	GRSBG:CLOTH:T-DECK	£45.00	Add to
027	710-04220	BOLT:CRG:M6-1 x 25 mm LG	£3.31	Add to
028	736-0176	WASHER:FLAT:.265 x .938 x .120	£5.70	Add to
029	712-0691	HEX NUT M6 DIN 985	£2.66	Add to
030	749-04130	TUBE:FRM:GRSBG:T-DECK	£21.14	Add to
031	747-04212	ROD:FRM:GRSBG:T-DECK	£13.36	Add to
032	731-04661	COVER:DOOR:T-DECK BLACK	£36.37	Add to
033	710-1704	SCR:TORX:M6x20 WN 1452	£4.62	Add to
14A	746-04138	THROTTLE CONTROL	£36.87	Add to
19A	752H636760	MOTOR HONDA GCV 160 5.5 HP	£535.00	Add to
