MTD008706

Parts list

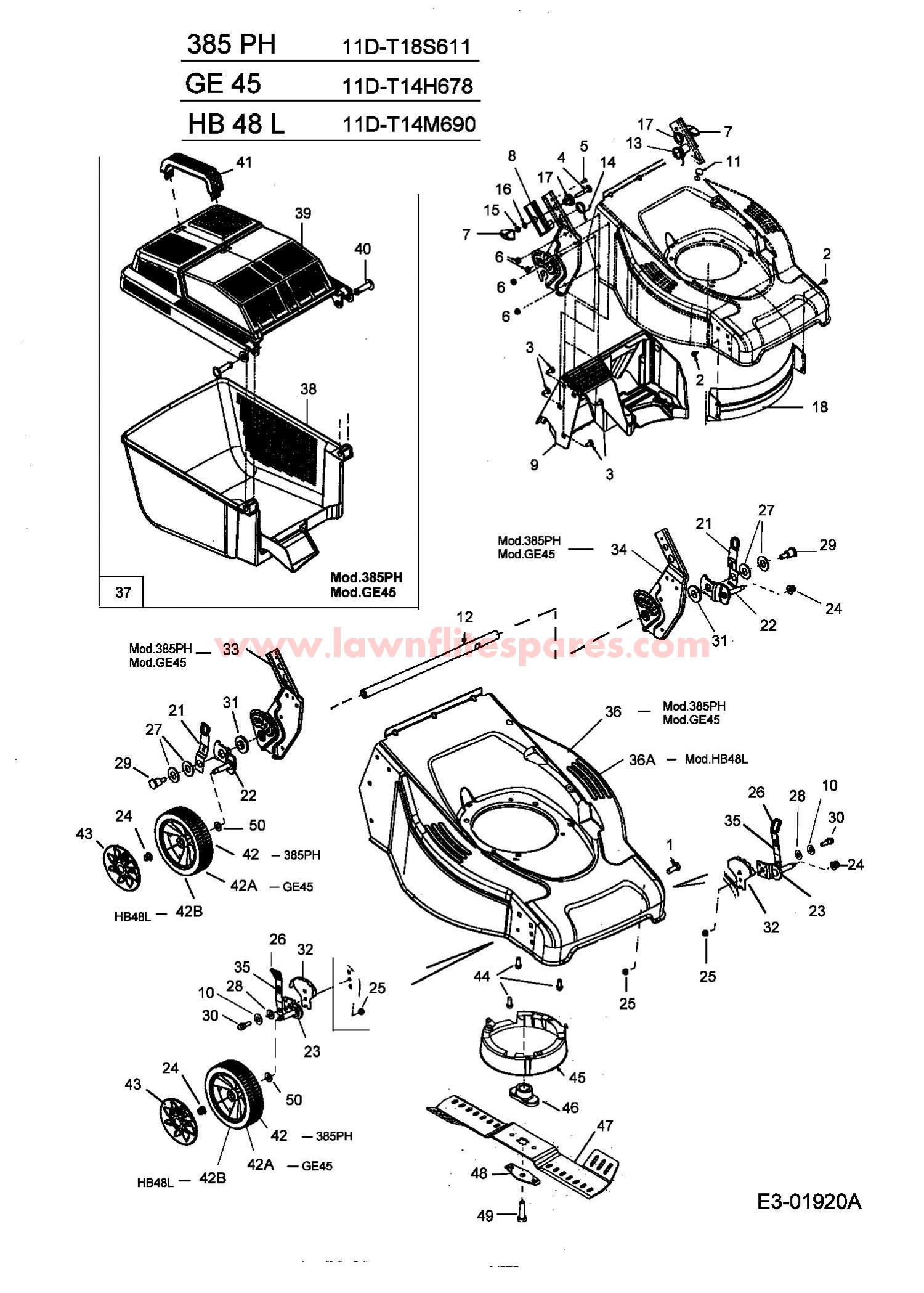

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001710-1681HEX BOLT M8 X 20 DIN 933 (RED)£3.24 Add to
002710-04203ASCR:M6x1:12 MM:DIN 7500£5.19 Add to
003710-04217SCR:SHLDR:12mm SQ:M8 CUSTOM£4.50 Add to
004710-1719BOLT£4.89 Add to
005710-1777SCR:TORX:50x14:WN 1451£3.20 Add to
006712-0365NUT:HEXLK:M8 x 1.25:GR.9£4.76 Add to
007720-0368WING NUT£5.19 Add to
008731-04587ANO LONGER AVAILABLEN/A POA
009731-04630BFL:RR:T-DECK£41.18 Add to
010736-3013WASHER-FL£2.98 Add to
011731-04660CAP£4.11 Add to
012747-04264ROD:T-DECK£31.09 Add to
013732-04193SPR:TORSN:27mm ID x 8mm LG£10.31 Add to
014732-04194SPR:TORSN:27mm ID x 8mm LG£10.31 Add to
015736-0698Spring washer 24.8191.09£4.11 Add to
016736-0700FLAT WASHER£2.63 Add to
017748-04036INSULATING WASHER 079.06.307£4.50 Add to
018787-01173637BFL:DECK:FRT T-DECK 787-01173£25.70 Add to
021687-02051LVR ASM:HGT:L0-WHL£12.50 Add to
022687-02084BRKT ASM:PIVOT:IND HA£15.06 Add to
023687-02112NO LONGER AVAILABLEN/A POA
024712-04074NUT:HEX:M10x1.25 DIN 985£2.79 Add to
025712-0692HEX NUT£3.10 Add to
026720-0426KNOB:ADJ:HEIGHT£5.46 Add to
027736-04116WASH:FLAT:19mm x 40mm x 2.5mm£3.80 Add to
028736-0651NO LONGER AVAILABLEN/A POA
029738-04085AM10x1.25£5.10 Add to
030738-1030AScrew 079.29.178£9.23 Add to
031741-0751HEIGHT ADJUSTMENT BEARING£5.81 Add to
032787-01196NO LONGER AVAILABLEN/A POA
033787-01163637BRKT:HNDL:RH "T" REAR DIS RWD£26.57 Add to
034787-01164637BRKT:HNDL:LH: "T" PUSH£27.37 Add to
035787-01171NO LONGER AVAILABLEN/A POA
036787-01145638DECK 18"£103.14 Add to
037811-000161E-TEIL-SETN/A POA
038731-04637LOWER GRASS BAG£61.59 Add to
039731-04654GRASS CATCHER HALF-ABOVE 731-1955637£62.29 Add to
040731-04659NO LONGER AVAILABLEN/A POA
041731-04664GRIP 731-1956637£10.65 Add to
042734-04079WHL:COMP:500x50 IDLE ELLIPSE£40.89 Add to
043731-04750HUBCP:WHL:T-DECK:OYSTER GRAY£5.50 Add to
044710-0654ASCR:TTSEMS:3/8-16:1.000:HXLWSH£5.10 Add to
045731-05487BFL DECK CNTR£27.17 Add to
046748-0376EBLADE ADAPTOR£26.64 Add to
047742-04060BLADE:45cm:T-DECK W/STAR£36.92 Add to
048736-0524BSPR BLADE BELL£8.61 Add to
049710-1044HEX BLOT 3/8-24 X 1.5 INCHS LONG£4.74 Add to
050736-0504WAVE WASHER£2.84 Add to
36A787-01145650DECK 18"£105.46 Add to
42A734-04090WHL:COMP:200x50:NON-BB IDLE£21.37 Add to
42B734-04083WHL:COMP:500x50 IDLE ELLIPSE£41.59 Add to
