MTD008566

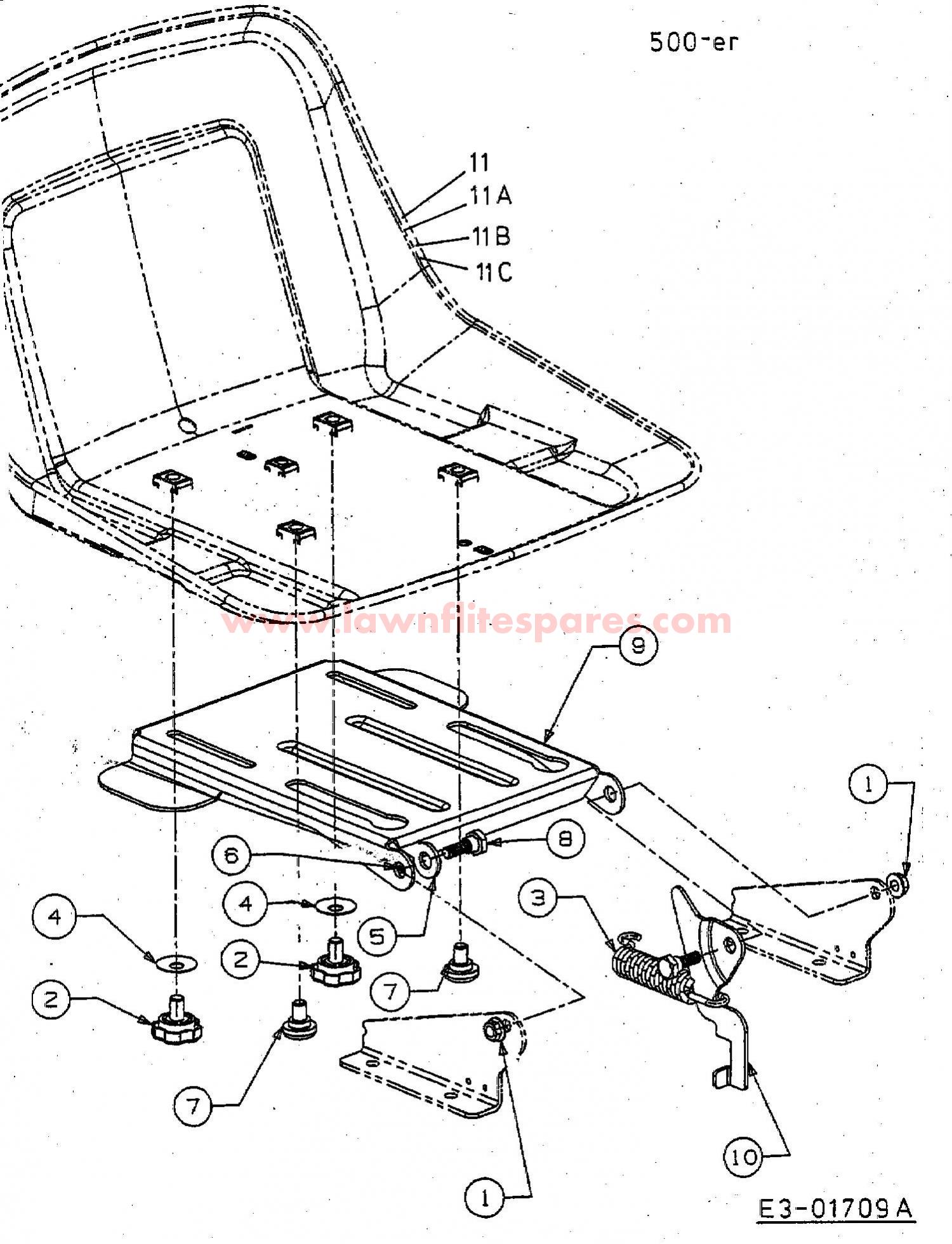

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	712-3004A	HEX FLANGE NUT	£2.97	Add to
002	720-04009	KNOB: 3/8"-16: .625	£7.26	Add to
003	732-1184	SEAT SPRING	£13.74	Add to
004	736-0219	BELL WASHER (RED)	£3.58	Add to
005	736-0696	WASHER	£4.00	Add to
006	001.51.052	LUBRICATING GREASE	£38.02	Add to
007	738-04012	SCR:SHLDR: .625x.175:3/8-16	N/A	POA
008	738-3024	NO LONGER AVAILABLE	N/A	POA
009	783-04081A	SEAT PLATE	£25.60	Add to
010	783-1366B	SEAT LIFT BRACKET	£10.74	Add to
011	757-04107	SEAT	£187.38	Add to
11A	757-0365A	SEAT:V-480:MED BACK YELLOW	£225.27	Add to
11B	757-0372	SEAT:V560 RAD YELLOW	£209.01	Add to
11C	757-04109	SEAT BLACK HIGH BACK	£220.11	Add to
