MTD008521

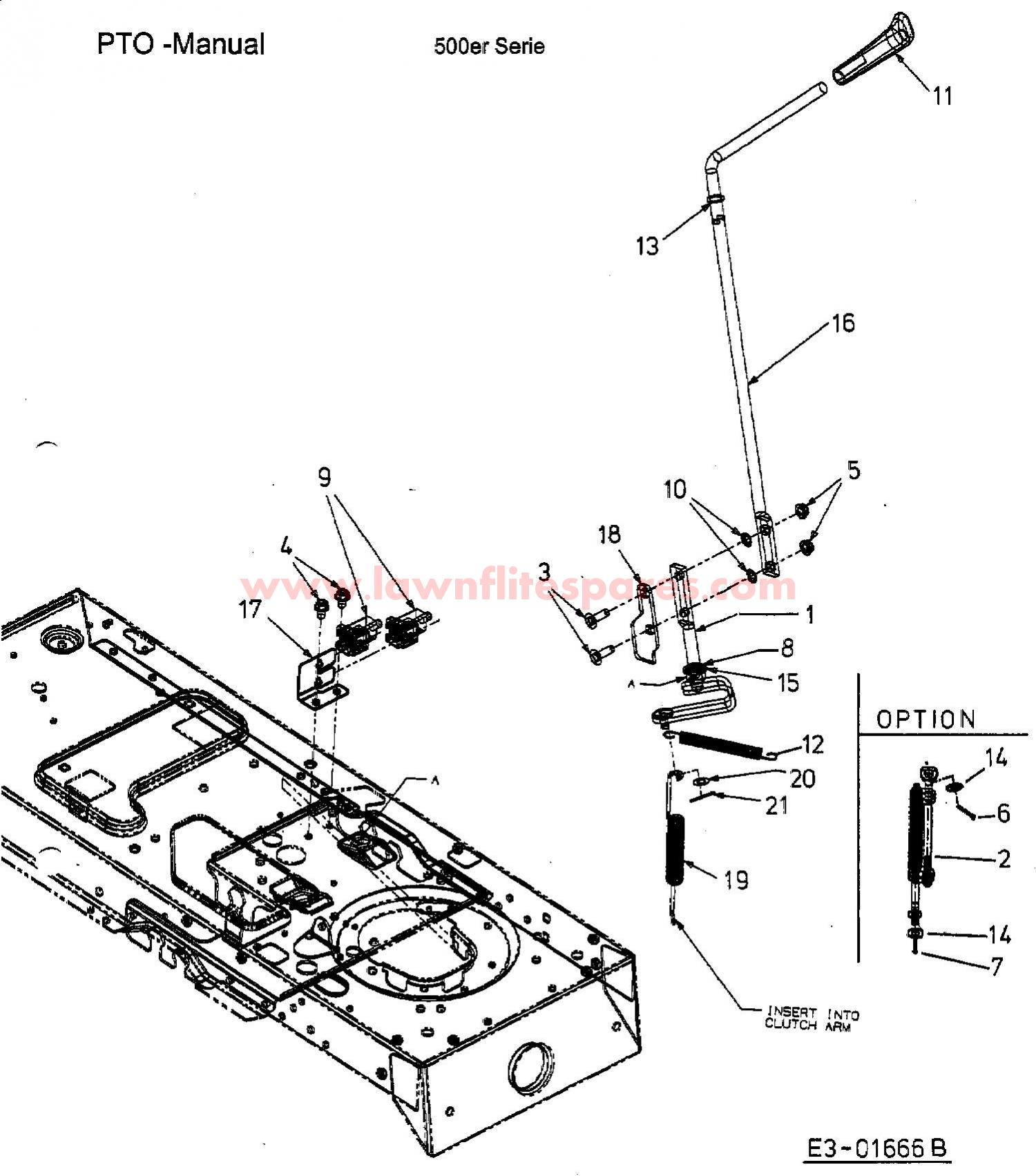

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	647-0066A637	LVR ASM:ENGAGE 500 647-0066	£38.66	Add to
002	111.11.114	NO LONGER AVAILABLE	N/A	POA
003	710-0276	SCREW:CRG:SPL:5/16-18:1.00	£3.69	Add to
004	710-0604A	SCREW	£3.62	Add to
005	712-3004A	HEX FLANGE NUT	£2.97	Add to
006	714-0470	COTTER PIN	£5.07	Add to
007	714-0507	COTTER PIN 3/32 DIA	£3.13	Add to
008	716-0104	RETAINING RING 1650-001	£3.58	Add to
009	725-1657A	SAFETY SWITCH	£14.15	Add to
010	726-0201	SPEED NUT	£3.10	Add to
011	631-04247	KNOB ASM:PTO:500	£7.92	Add to
013	736-0108	WASH-FLAT:.510 x.750 x.033	£3.59	Add to
014	736-0275	WASH:FLAT:.344 x .688 x.065	£3.07	Add to
015	741-0708	BRG:FLG:HEX SPLIT .500 ID	£13.90	Add to
016	747-1112D	HNDL:DECK:ENGAGE	£62.51	Add to
017	783-1438	BRKT:SW:PTO 500	£5.26	Add to
018	783-1497-Z	BRKT:ENGAG:STOP	£6.01	Add to
019	732-04000B	SPRING	£8.30	Add to
020	736-0314	WASHER-THRUST	£2.97	Add to
021	714-0111	COTTER PIN	£3.20	Add to
