MTD008321

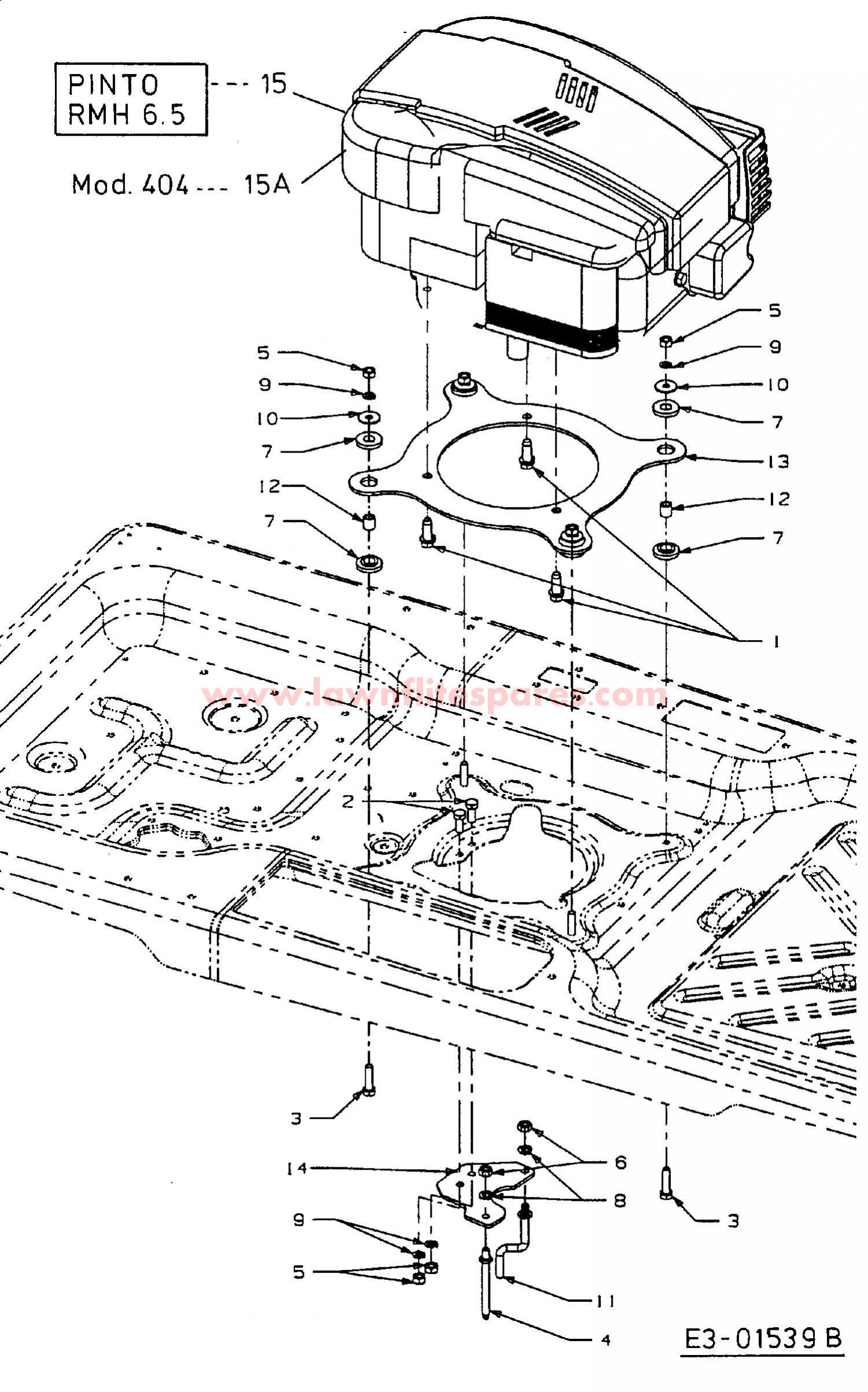

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	710-0654A	SCR:TTSEMS:3/8-16:1.000:HXLWSH	£5.10	Add to
002	710-1681	HEX BOLT M8 X 20 DIN 933 (RED)	£3.24	Add to
003	710-1683	SCR:M8-1:30.00 LG:DIN 933	£3.20	Add to
004	711-1065	PIN:BELT GUARD:.31 x 3.06 LG	£8.10	Add to
005	712-0690	NUT:HEX:M8-1.25 DIN 934	£2.72	Add to
006	712-3010	NUT 5/16 x 18	£2.77	Add to
007	722-0153	MOUNTING	£5.41	Add to
008	736-0119	LOCK WASHER 5/16	£3.33	Add to
009	736-0649A	WASHER:LOCK:B8:DIN 12 736-0649	£2.70	Add to
010	736-0701	WASH:FLAT:8.4x24x2.00 DIN 9021	£3.80	Add to
011	747-1292	ROD, BELT KEEPER	£53.15	Add to
012	750-0539	SPACER (OBSOLETE) (OBSOLETE)	N/A
013	783-1120637	PLT:MT:ISO 783-1120	£35.75	Add to
014	783-1294637	BRACKET-BELT GUARD 783-1294	£18.32	Add to
015	752B0275E1	B&S ENGINE	N/A	POA
15A	752B0324E1	12607-0324-E1 B&S 6.75HP	N/A	POA
