MTD008320

Parts list

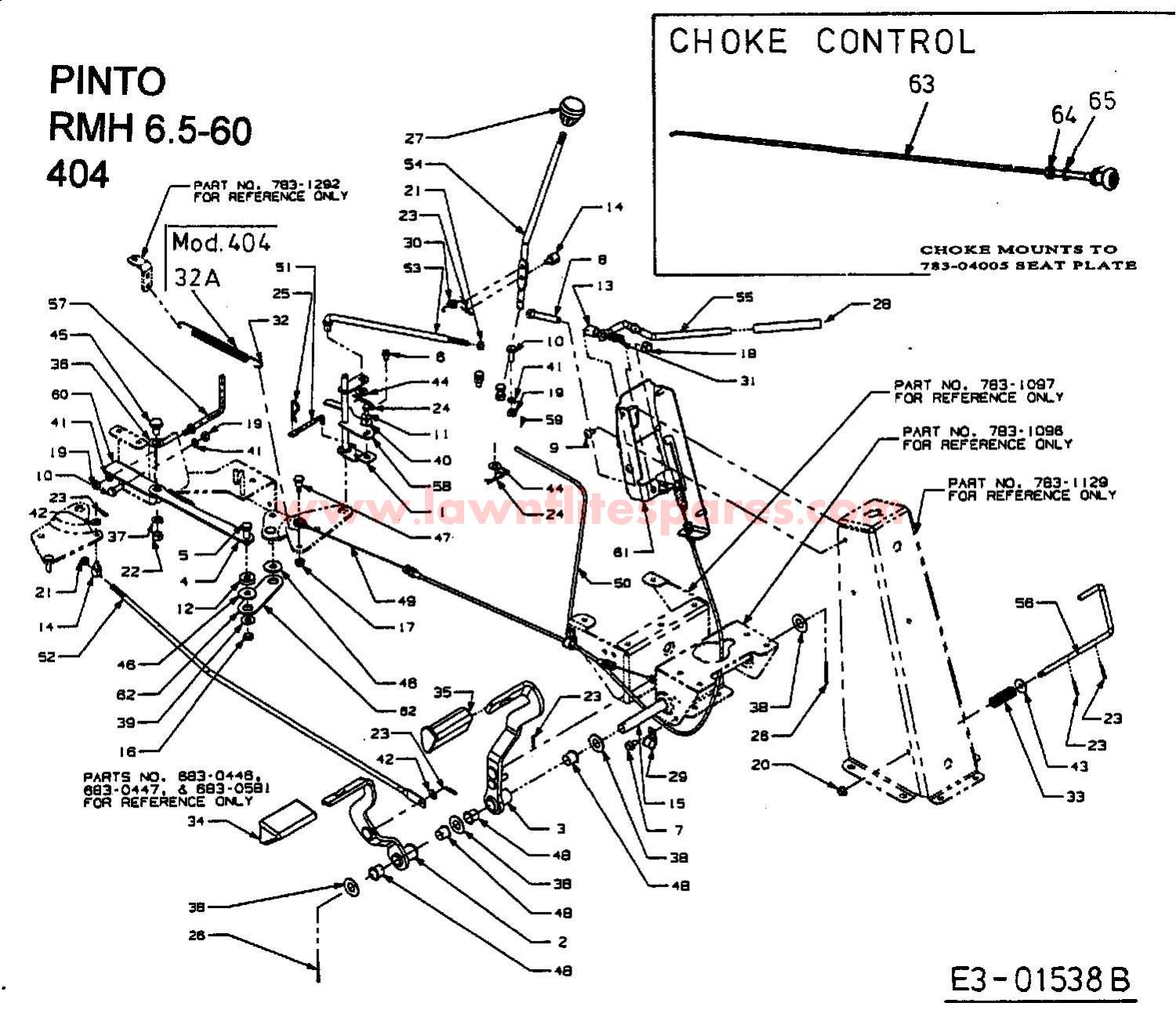

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	647-0055-Z	SHFT ASM:PIVOT	£30.63	Add to
002	683-0432	PED ASM:VARI	£43.41	Add to
003	683-0433	PLATE-ASSY. MOUNTING	£48.43	Add to
004	683-0592	BRAKE ASM: IDLER (OBSOLETE)	N/A
005	710-0191	HEX BOLT (RED)	£7.13	Add to
006	710-0599	HEX TT SCREW 1/4-20	£4.95	Add to
007	710-0604A	SCREW	£3.62	Add to
008	710-0859	SCREW HHCS:3/8-16:2.50:GR5:STD	£5.96	Add to
009	710-1017	TAP SCREW	£2.97	Add to
010	710-1681	HEX BOLT M8 X 20 DIN 933 (RED)	£3.24	Add to
011	710-3013	SCREW HEX CAP	£3.39	Add to
012	711-0242	SPACER	£7.37	Add to
013	711-0396	SPACER	£8.79	Add to
014	711-1155	FRL:5/16-18X.312:HT.TR.	£10.93	Add to
015	711-1531	SHFT:.623 x 11.36 LG	£28.07	Add to
016	712-0296	NUT:JAMLK:3/8-24	£3.59	Add to
017	712-0380	NUT:FLGLK:1/4-28:GRF	£3.20	Add to
018	712-0431	NUT	£3.20	Add to
019	712-0690	NUT:HEX:M8-1.25 DIN 934	£2.72	Add to
020	712-3004A	HEX FLANGE NUT	£2.97	Add to
021	712-3007	HEX JAM NUT	£3.07	Add to
022	712-3017	NUT:JAM:3/8-16:GR5	£2.97	Add to
023	714-0104	PIN INTERNAL COTTER	£2.78	Add to
024	714-0145	R CLIP	£2.78	Add to
025	714-0149B	COTTER PIN	£3.58	Add to
026	714-0470	COTTER PIN	£5.07	Add to
027	720-0232	KNOB:SHFT:1.60 OD X 1.56	£6.72	Add to
028	720-0269	NO LONGER AVAILABLE	N/A	POA
029	726-0272	CLAMP	£2.98	Add to
030	732-0445	SPRING-EXTENSION	£9.23	Add to
031	732-1167	COMPRESSION SPRING	£3.20	Add to
032	732-1168	Spring	£6.70	Add to
033	732-3091	COMP.SPRING .570 ID X 2.09 LG	£6.32	Add to
034	735-0283	FLAP-LIFT HANDLE	£13.38	Add to
035	735-3049A	FOOTBRAKE PAD	£20.22	Add to
036	736-0160	WASH:FLAT:.530x.930x.050	£3.39	Add to
037	736-0169	L. WASHER	£2.89	Add to
038	736-0187	FLAT WASHER	£3.19	Add to
039	736-0267	WASH:FLAT:.385 x.87 x.06:HT	£3.80	Add to
040	736-0270	BELL WASHER	£3.91	Add to
041	736-0649A	WASHER:LOCK:B8:DIN 12 736-0649	£2.70	Add to
042	736-0700	FLAT WASHER	£2.63	Add to
043	736-0701	WASH:FLAT:8.4x24x2.00 DIN 9021	£3.80	Add to
044	736-0692	Flat Washer, 3/8" 43070	£3.20	Add to
045	738-0183	NO LONGER AVAILABLE	N/A	POA
046	738-0347	SPACER	£4.16	Add to
047	738-0826	SHOULDER BOLT	£6.70	Add to
048	741-0495	FLANGED BRG.	£8.22	Add to
049	746-1127	CABLE ASSY	£47.24	Add to
050	746-1129	BRAKE CABLE 42,5"	£55.66	Add to
051	747-1228A-Z	ROD:SHFT:400 747-1228A	£19.74	Add to
052	747-1240	ROD:CONT:VARI	£31.04	Add to
053	747-1249	SHAFT CONTROL	£25.11	Add to
054	747-1254	ROD:SHFT 747-1254-Z	£52.24	Add to
055	747-1255	HANDLE-PTO ENGAGEMENT	£24.51	Add to
056	747-1258	ROD-BRAKE	£32.64	Add to
057	747-1262	ROD:KEEPER:BELT	£16.73	Add to
058	783-1142	BRKT:SHFT:SW	£9.12	Add to
059	783-1253	BRKT:SHFT:INDX	£21.60	Add to
060	783-1287	BRKT:BRAKE:MTR	£18.77	Add to
061	783-1293638	BRKT:CONT:PTO 783-1293	£49.21	Add to
062	783-1307-Z	CONTROL ROD	£16.26	Add to
063	746-1089	CHOKE CABLE	£27.76	Add to
064	712-3017	NUT:JAM:3/8-16:GR5	£2.97	Add to
065	736-0148	OBSOLETE	N/A
32A	732-0594A	EXTENSION SPRING	£25.17	Add to
