MTD008311

Parts list

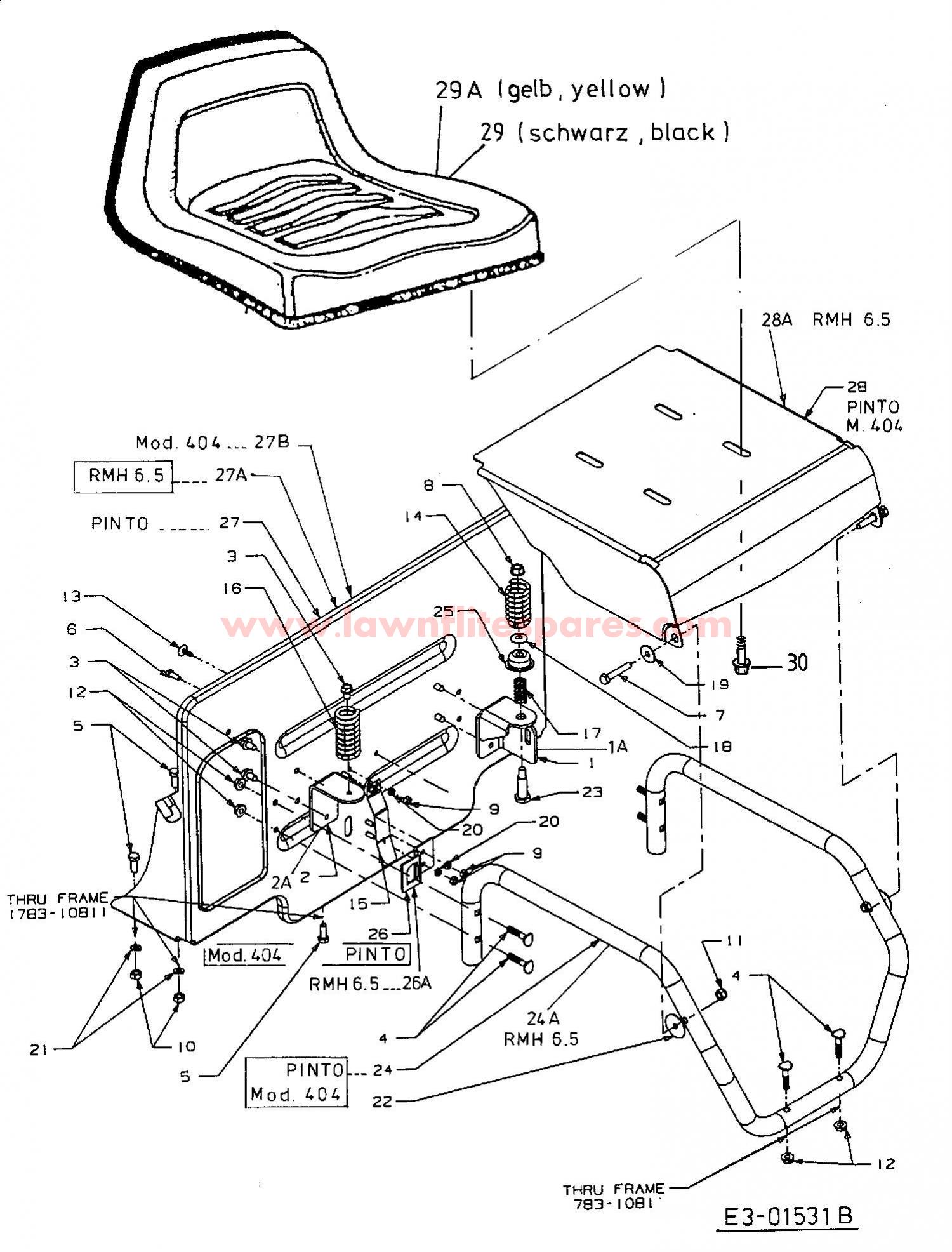

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001683-0575638SUPPORT L.H. (Y.M. GREEN)£25.57 Add to
002683-0576638SUPPORT R.H. (Y.M. GREEN)£13.53 Add to
003710-0604ASCREW£3.62 Add to
004710-1250BOLT:CRG:5/16-18:1.5:CRVD£2.77 Add to
005710-1681HEX BOLT M8 X 20 DIN 933 (RED)£3.24 Add to
006710-1690HHCS:M6-1:16.00£3.39 Add to
007710-1703Screw 21.1443.77£3.39 Add to
008712-0431NUT£3.20 Add to
009712-0689NUT:HEX:M6-1:DIN 934£2.33 Add to
010712-0690NUT:HEX:M8-1.25 DIN 934£2.72 Add to
011712-0692HEX NUT£3.10 Add to
012712-3004AHEX FLANGE NUT£2.97 Add to
013726-3046RATCHET£3.11 Add to
014732-0735SPR:COMPRS:1.314 OD x 2.55 LG£18.48 Add to
015732-0750ASPACER: SWITCH ACTUATOR£24.75 Add to
016732-0996SPR:COMPRS:.233 ODX1.00 LG£7.13 Add to
017732-0997SPRING:CMPRS:.66 OD X 1.5 LG£3.58 Add to
018736-0105BELL WASHER£3.33 Add to
019736-0289Washer£5.50 Add to
01A683-0575665SUPPORT L.H. (Y.M. GREEN)£25.57 Add to
020736-0648WASHER:LOCK:B6:DIN 127£2.44 Add to
021736-0649AWASHER:LOCK:B8:DIN 12 736-0649£2.70 Add to
022736-0743WASH:FLAT:8.4 x 35 x 1,5£3.76 Add to
023738-1014SCREW-SHOULDER£5.81 Add to
024749-1264638SEAT SUPPORT TUBE (Y.M. GREEN) (OBSOLETE) (OBSOLETE)N/A
025783-0733SPACER£16.56 Add to
026783-0931638SWITCH BRACKET, BAG PRESENT£21.05 Add to
027783-1118638SEAT:PIVOT:BRACKET£103.70 Add to
028783-1144638SEAT BRACKET (Y.M. GREEN)£62.64 Add to
029757-0378SEAT:V-380:BLACK PR 757-0363A£317.61 Add to
02A683-0576665SUPPORT R.H. (Y.M. GREEN)£13.53 Add to
030710-0870HHWSH:3/8-16:.625:GR5:STD£13.79 Add to
24A749-1264665SEAT SUPPORT TUBE (Y.M. GREEN)£36.69 Add to
26A783-0931665ANGLE:BRKT:SAFETY SWITCH£19.74 Add to
27A783-1118665SEAT BASE£103.70 Add to
27B783-04005SEAT BASE£47.57 Add to
28A783-1144665SEAT BRACKET (Y.M. GREEN)£62.64 Add to
29A757-0365ASEAT:V-480:MED BACK YELLOW£225.27 Add to
