MTD008264

Parts list

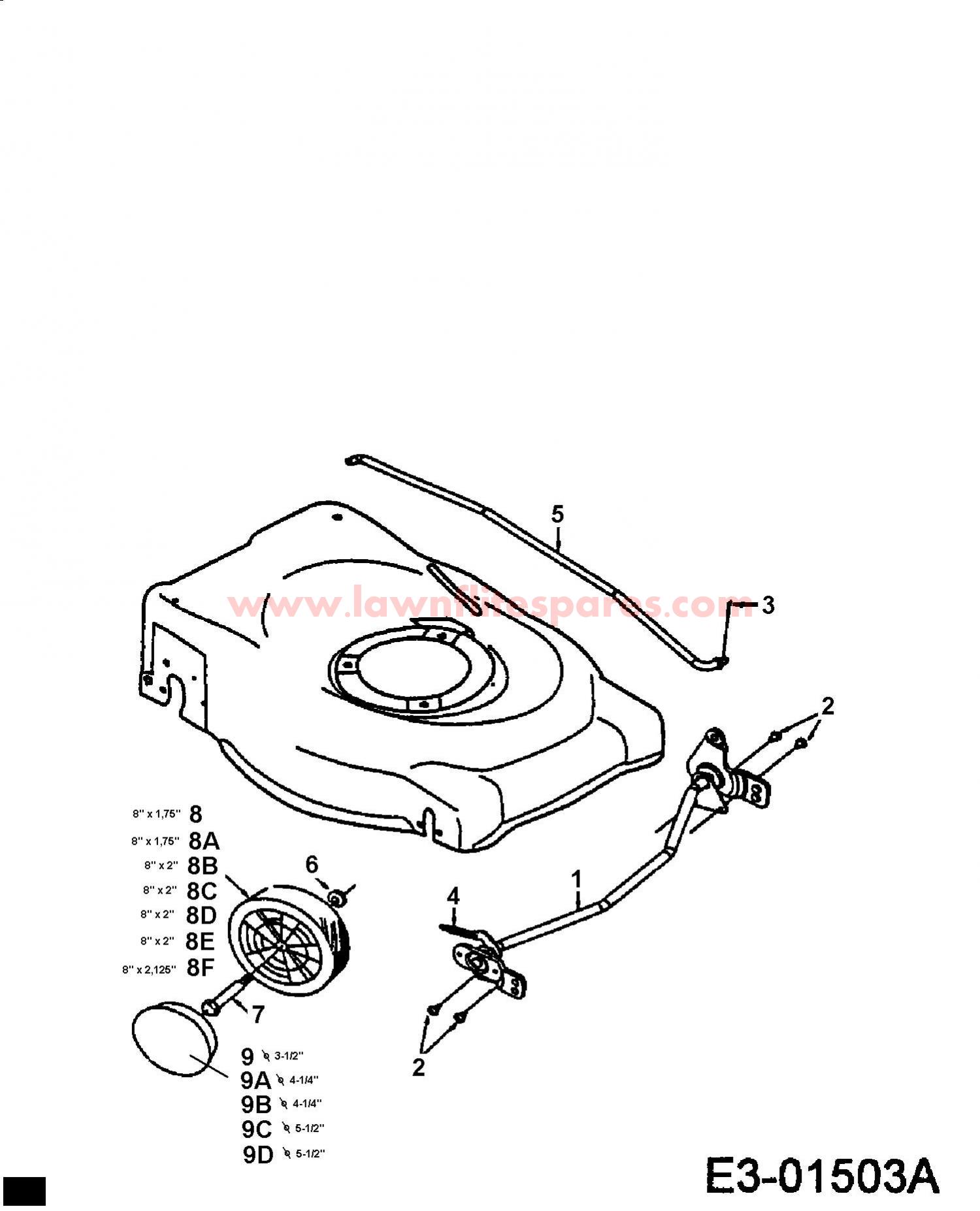

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001611-0060637GEPULVERT£121.60 Add to
002710-1348SCR:AB:1/4-14:0.500:TRUSTRXI£3.07 Add to
003714-0104PIN INTERNAL COTTER£2.78 Add to
004732-0820SPRING-BRAKE TENSION (OBSOLETE) (OBSOLETE)N/A
005747-0920ALINK-DRAG£30.95 Add to
006736-0105BELL WASHER£3.33 Add to
007738-0102SHOULDER BOLT£7.13 Add to
008634-0020WHEEL ASSY W/TIRE£36.13 Add to
009720-0249HUB CAP£4.89 Add to
010741-04317NO LONGER AVAILABLEN/A POA
08A734-1268WHEEL ASSY W/TIRE£90.24 Add to
08B734-1790ASS'Y, WHEEL & TIRE (A-F)£68.26 Add to
08C734-1821WHL:COMPL:8x2 SWAV GRAY BB£48.52 Add to
08D734-1826WHEEL ASSY W/TIRE 734-1510B£50.98 Add to
08E734-1819WHL:COMPL:8.0X2.0 LINK GRAY£30.14 Add to
08F753-08093WHEEL ASSY. 734-2004£48.52 Add to
09A731-0354AHUB CAP BLACK 731-0354£11.00 Add to
09B731-0355ACAP-HUB GRAY£11.73 Add to
09C731-0981CHUBCP:WHL:RADIAL SPOKE GREY 731-0981A£9.70 Add to
09D731-1426AHUBCP:WHL:RADIAL SPOKE YELLOW 731-1426N/A POA
