MTD007909

Parts list

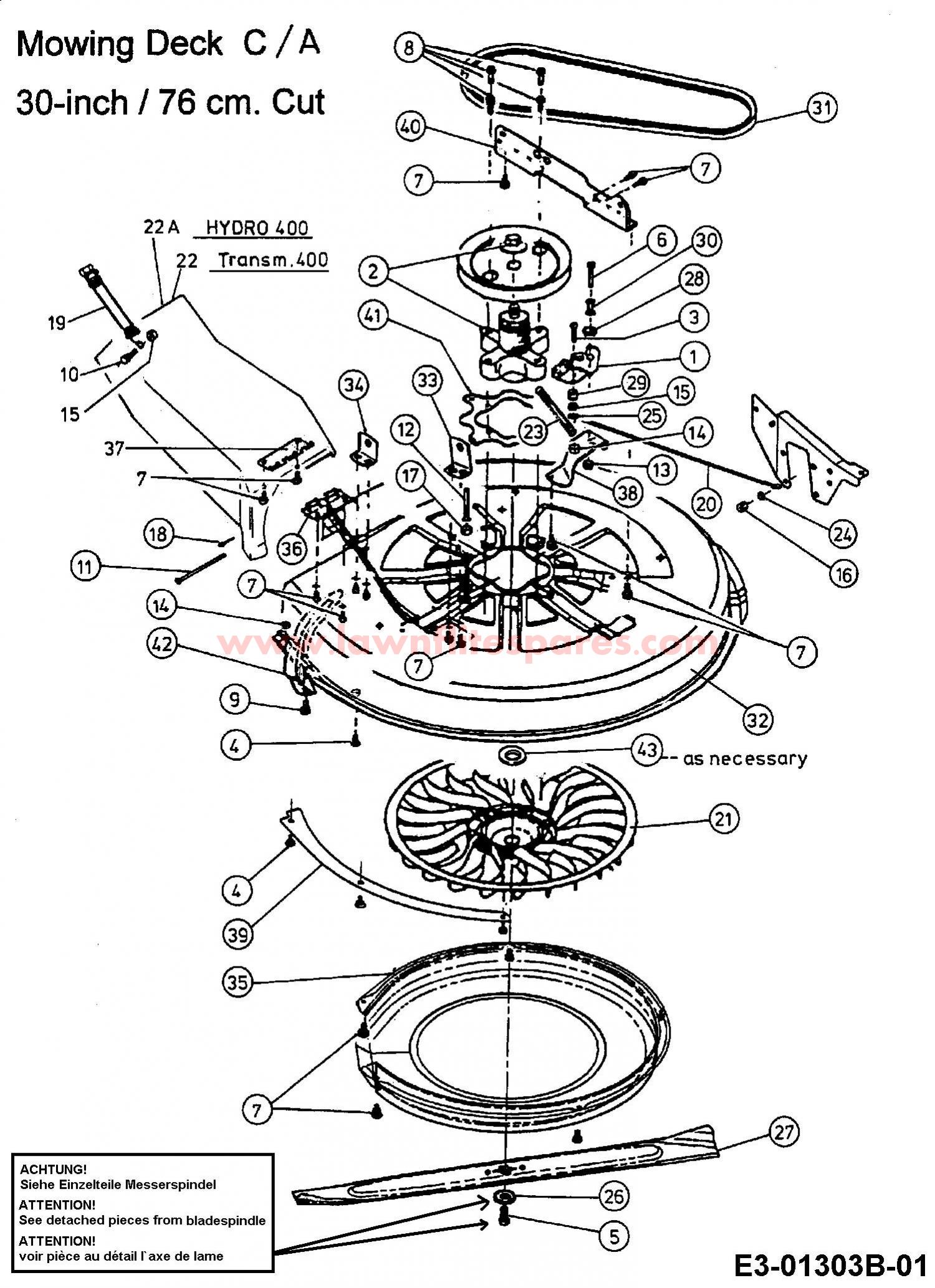

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	97116-MTD	BRAKE BRACKET	£35.85	Add to
002	918-0139B	SPINDLE ASSY	£190.32	Add to
003	710-0106	HHCS:1/4-20:1.25:GR5:SPEC	£3.95	Add to
004	710-1687	BOLT	£3.26	Add to
005	710-1382	SCREW	£3.51	Add to
006	710-3180	SCREW HEX CAP	£5.00	Add to
007	710-0599	HEX TT SCREW 1/4-20	£4.95	Add to
008	710-0602	SCREW:TT:5/16-18:1.00:HXINDWSH	£5.64	Add to
009	710-1759	SCREW	£3.95	Add to
010	710-3015	SCREW HEX CAP	£3.33	Add to
011	711-1054	PIN	£7.09	Add to
012	711-1065	PIN:BELT GUARD:.31 x 3.06 LG	£8.10	Add to
013	712-04063	FLANGED NUT	£4.20	Add to
014	712-0691	HEX NUT M6 DIN 985	£2.66	Add to
015	712-3006	NUT	£2.77	Add to
016	712-3010	NUT 5/16 x 18	£2.77	Add to
017	712-3046	Nut, Hex Jam 5/16-18 Thd.	£3.33	Add to
018	714-0507	COTTER PIN 3/32 DIA	£3.13	Add to
019	723-0383	STRAP ASSY-RETAINER	£9.93	Add to
020	727-0470	BRAKE CABLE	£14.67	Add to
021	731-1583	DECK FAN	£95.83	Add to
022	731-1605F	CHUT:RR:DIS	£116.84	Add to
023	732-0604A	SPR:EXT: .56 DIA x 5.52 LG	£17.65	Add to
024	736-0204	F.I. WASHER	£3.59	Add to
025	736-0342	FLAT WASHER	£2.97	Add to
026	736-0684	WASH:BELL:10.5 DIN 6340	£2.86	Add to
027	742-04058	BLADE 30 INCHES	£64.49	Add to
028	748-0234	SHOULDER SPACER	£5.43	Add to
029	750-0555	SPACER .254 ID X .50 OD X .390 (OBSOLETE) (OBSOLETE)	N/A
030	750-0755	SPACER	£13.25	Add to
031	754-0445	BELT	£70.95	Add to
032	783-0247E637	30 INCH DECK PAN BLACK	£347.89	Add to
033	783-0248637	NO LONGER AVAILABLE	N/A	POA
034	783-0249637	BRACKET:DECK HANGER 783-0249	£12.98	Add to
035	783-0289637	SHROUD FAN 30 INCH DECK BLACK	£83.93	Add to
036	783-0291ZW	TOP HINGE (BLUE)	£12.43	Add to
037	783-0292	BRKT:DECK CHUTE PIVOT	£8.47	Add to
038	783-02950637	BRACKET-CABLE 783-0295 (OBSOLETE) (OBSOLETE)	N/A
039	783-0301637	SKIRT-DECK 30 INCH RD	£43.96	Add to
040	783-0304B	NO LONGER AVAILABLE	N/A	POA
041	753-0571637	PLT:REINF:30" RD DECK (OBSOLETE) (OBSOLETE)	N/A
042	683-0215A637	BRKT ASM DIS CHUTE BLACK	£23.09	Add to
043	736-0693	SHIM WASHER	£4.85	Add to
044	813-04198637	NO LONGER AVAILABLE	N/A	POA
22A	731-2235	NO LONGER AVAILABLE	N/A	POA
