MTD007874

Parts list

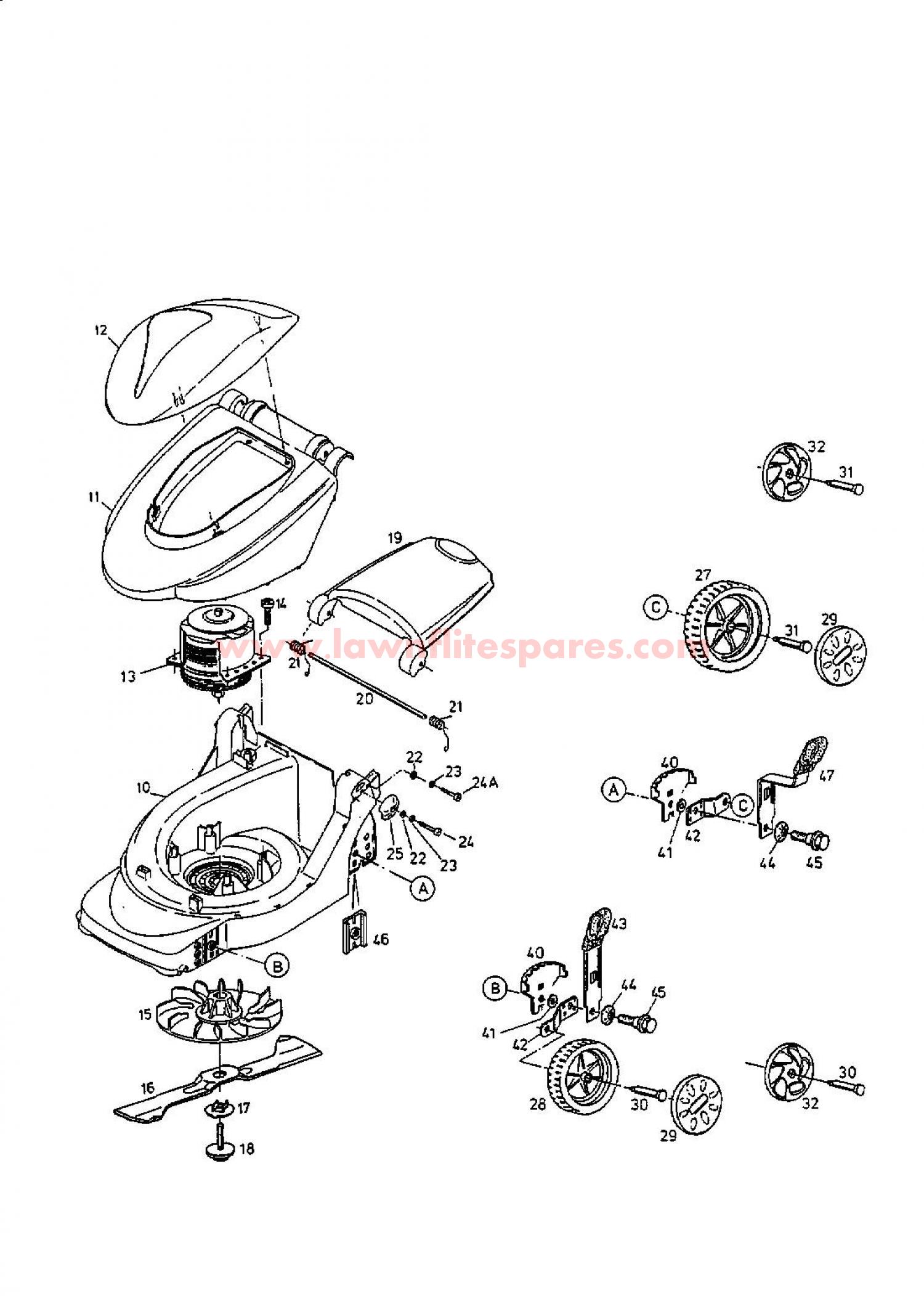

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
010731-2085638MOWER HOUSING£98.79 Add to
010731-2085668MOWER HOUSING£65.78 Add to
010731-2085662MOWER HOUSING£65.78 Add to
011731-2086638PROTECTION COVER£26.52 Add to
011731-2086662PROTECTION COVER£26.52 Add to
012731-1792637E-MOTOR SHROUD MTD BLACK 637£17.48 Add to
012731-1792704E-MOTOR SHROUD MTD BLACK 637£16.91 Add to
012731-1792674E-MOTOR SHROUD MTD BLACK 637£19.27 Add to
013724-0299ELECTRIC ENGINE 724-0275A£167.02 Add to
014710-1756SCREW-TORX HD 5/16-18 000.02.498£6.25 Add to
015631-0115BFAN ASM:ELEC:T-DECK£33.75 Add to
015631-0101BLADE HUB ASM£26.91 Add to
016742-0811MOWER BLADE£23.89 Add to
017782-7050LOCK PLATE£8.22 Add to
018624-0075BOLT ASM:BLADE:T-DECK:ELEC£10.13 Add to
019731-1791668REAR FLAP - MELON YELLOW -£17.19 Add to
019731-1791637REAR FLAP - MELON YELLOW -£17.90 Add to
019731-1791638REAR FLAP - MELON YELLOW -£17.19 Add to
020747-1003ROD£3.48 Add to
021732-0876SPRING£3.39 Add to
022736-0697Washer 24.6486.13£2.79 Add to
023736-0698Spring washer 24.8191.09£4.11 Add to
024710-1350NO LONGER AVAILABLEN/A POA
025731-1789668CAP MELON YELLOW£4.76 Add to
025731-1789638CAP MELON YELLOW£3.48 Add to
025731-1789662CAP MELON YELLOW£3.49 Add to
027734-1877637WHEEL DIA 185 mm£16.26 Add to
028734-04202WHL:COMPL:160mm£21.68 Add to
029720-0333638HUB CAP£4.55 Add to
029720-0330674HUB CAP£5.63 Add to
030738-1026NO LONGER AVAILABLEN/A POA
031738-1027NO LONGER AVAILABLEN/A POA
032720-0343HUB CAP, WITHOUT LOGO, BLACK 720-0343637£6.11 Add to
040782-0607PLT:ADJ:HGT T-DECK£5.42 Add to
041736-0701WASH:FLAT:8.4x24x2.00 DIN 9021£3.80 Add to
042782-0617APIVOT ARM£15.40 Add to
043682-0271ALVR ASM:HGT:L0-WHL 079.29.735£10.83 Add to
044736-0651NO LONGER AVAILABLEN/A POA
045738-1030AScrew 079.29.178£9.23 Add to
046782-0616HOLDER PLATE, WHEEL£4.11 Add to
047682-0231AADJUSTING LEVER-REAR£9.80 Add to
24A22.6417.90Screw£4.85 Add to
