MTD007804

Parts list

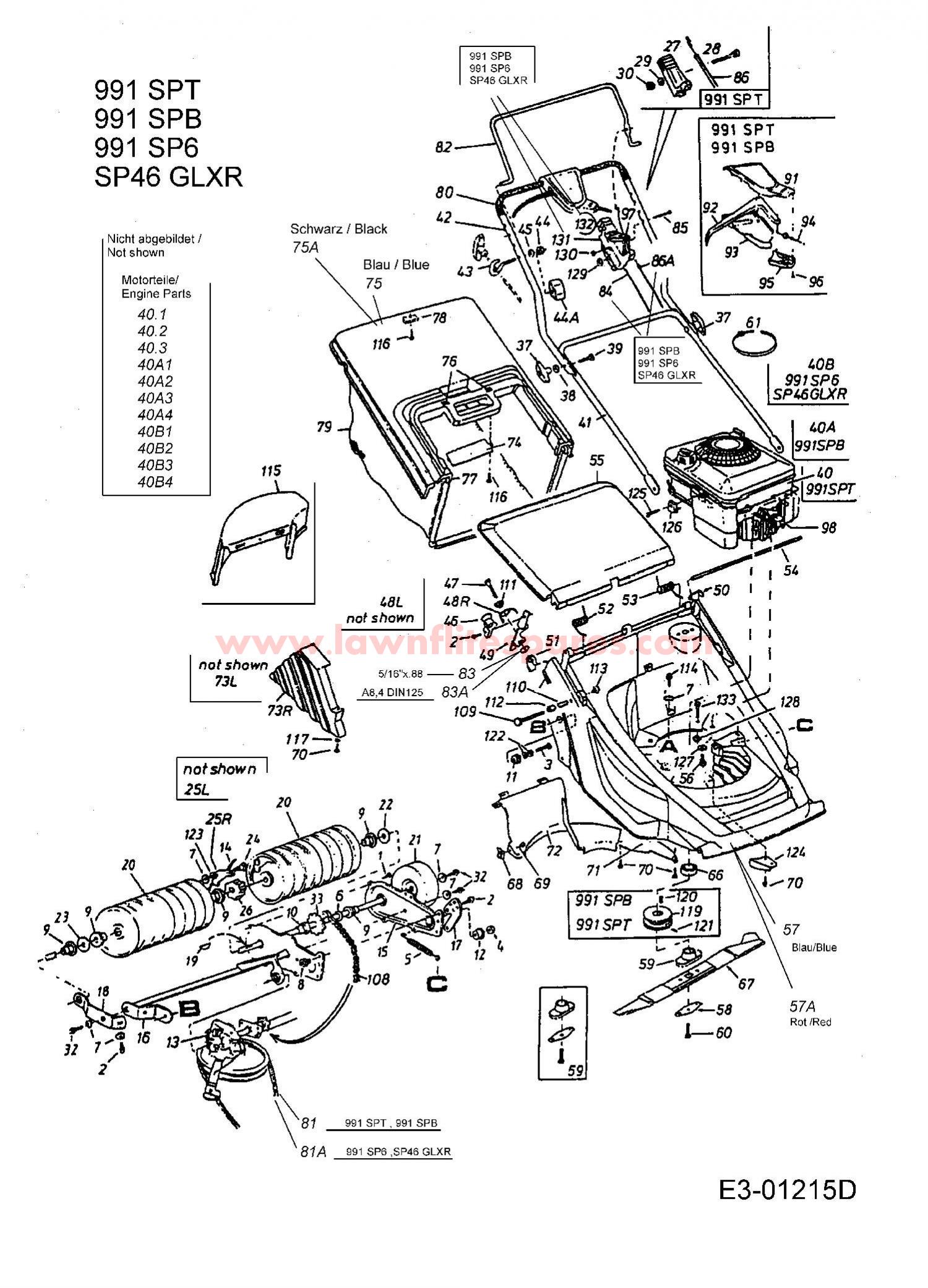

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	710-0653	HEX SCREW, 1/4-20 X 3/8"	£4.22	Add to
002	710-0599	HEX TT SCREW 1/4-20	£4.95	Add to
003	710-0623	SCR:TT:3/8-16:.750 HXINDWSH	£6.30	Add to
004	712-0296	NUT:JAMLK:3/8-24	£3.59	Add to
005	732-0478	EXT. SPRING DECK CONTROL	£16.63	Add to
006	736-0160	WASH:FLAT:.530x.930x.050	£3.39	Add to
007	736-0270	BELL WASHER	£3.91	Add to
008	738-0561	NUT:SHOULDER 1/4-20"	£6.11	Add to
009	741-0324A	BEARING	£5.54	Add to
010	741-0522	HEX FLANGE BEARING	£4.65	Add to
011	750-0812	NO LONGER AVAILABLE	N/A	POA
012	750-0813	NO LONGER AVAILABLE	N/A	POA
013	618-0056	TRANSMISSION 717-1029	£201.73	Add to
014	10622B	NYLON SPRING	£5.07	Add to
015	17530637	CHAIN COVER	£36.96	Add to
016	17532637	AXLE ASSY-ROLLER 17532	£66.65	Add to
017	17538637	BRACKET-CABLE 17538	£6.81	Add to
018	17539637	NO LONGER AVAILABLE	N/A	POA
019	714-0131	NO LONGER AVAILABLE	N/A	POA
020	631-0091A	NO LONGER AVAILABLE	N/A	POA
021	731-1118	ROLLER-SMALL	£14.69	Add to
022	736-0272	WASHER:FL:.510 X 1.000 X .060	£3.16	Add to
023	736-0326	FLAT WASHER :5101.00125	£3.69	Add to
024	738-0137A	BOLT	£8.58	Add to
026	748-0330	WHEEL RATCHET	£15.71	Add to
027	746-0883	BODY CABLE	£10.73	Add to
028	710-1722	SLOTTED CHEESE HEAD SCREWS	£3.59	Add to
029	736-0668	WASHER	£2.23	Add to
030	712-0691	HEX NUT M6 DIN 985	£2.66	Add to
032	710-0642	SCREW-HEX HD TAP 4-20 x 7.5	£3.68	Add to
033	738-0809	NO LONGER AVAILABLE	N/A	POA
037	720-0368	WING NUT	£5.19	Add to
038	736-0689	L-WASHER	£3.26	Add to
039	710-1719	BOLT	£4.89	Add to
040	752T36154D	ENGINE TEC VANTAGE 35	N/A	POA
041	749-0817637	NO LONGER AVAILABLE	N/A	POA
042	749-0816	NO LONGER AVAILABLE	N/A	POA
043	710-1205	ROPE GUIDE	£3.26	Add to
044	712-0324	HEX. INS L NUT	£3.69	Add to
045	736-0119	LOCK WASHER 5/16	£3.33	Add to
046	719-0279	GUIDE STARTER ROPE	£9.50	Add to
047	710-0874	HHCS:5/16-18:1.25:GR5:SPEC	£3.20	Add to
049	17748A637	NO LONGER AVAILABLE	N/A	POA
050	17749637	LOCK-HANDLE-LH 17749	£20.99	Add to
051	726-0211	U NUT	£3.96	Add to
052	732-0654	SPRING RH	£7.75	Add to
053	732-0653	NO LONGER AVAILABLE	N/A	POA
054	747-0773	NO LONGER AVAILABLE	N/A	POA
055	731-1105	DOOR-CHUTE EURO	£62.38	Add to
056	710-1008	NO LONGER AVAILABLE	N/A	POA
057	731-1547*	NO LONGER AVAILABLE	N/A	POA
058	736-0524B	SPR BLADE BELL	£8.61	Add to
059	811-00248	BLADE LOCK ADAPTER-KIT	£40.38	Add to
060	710-1044	HEX BLOT 3/8-24 X 1.5 INCHS LONG	£4.74	Add to
061	726-0240	TIE:CBL:3/16:7.0 LG	£4.13	Add to
066	750-0968	NO LONGER AVAILABLE	N/A	POA
067	742-0638	18 INCH BLADE	£26.40	Add to
068	712-0400	U NUT	£5.75	Add to
069	710-1388	SCREW	£3.23	Add to
070	710-1220	SCREW	£2.81	Add to
071	17740637	SPIRAL BAFFLE	£53.34	Add to
072	731-1109	PANEL HANDLE	£29.01	Add to
074	731-1113	DRAWBAR	£8.32	Add to
075	731-1549	COVER-HARDTOP 18"RD	£80.18	Add to
076	720-0272	CATCH-MAGNETIC	£13.24	Add to
077	747-0538637	chassis 747-0538	£34.74	Add to
078	17801-Z	NO LONGER AVAILABLE	N/A	POA
079	764-0273	BAG GRASS	£115.29	Add to
080	720-0387	SHRINKABLE TUBE PHTALAT FREE	£12.60	Add to
081	754-0327	V-BELT	£24.28	Add to
082	747-0824637	BRAKE BAIL	£19.77	Add to
083	736-0242	BELL WASHER	£3.72	Add to
084	746-1009	THROTTLE CONTROL WIRE	£14.70	Add to
085	710-0605	SCR:MACH:1/4-20:1.825:OVALCSK	£3.44	Add to
086	746-1066	CONTROL CABLE	£23.17	Add to
091	731-1057	NO LONGER AVAILABLE	N/A	POA
092	731-0620A	LEVER	£13.21	Add to
093	731-1058	NO LONGER AVAILABLE	N/A	POA
094	746-1006	6SPD ADJUSTING CABLE	£23.87	Add to
095	731-1059	CABLE MOUNTING CAP	£8.97	Add to
096	710-0841	SCREW	£4.89	Add to
097	746-0876	LEVER-THROTTLE	£12.97	Add to
098	735-0639	NO LONGER AVAILABLE	N/A	POA
108	713-0144	#48CHAIN.5"PITCHX32 713-0256	£20.99	Add to
109	710-1131	SCREW	£5.70	Add to
110	750-0816	NO LONGER AVAILABLE	N/A	POA
110A	750-0817	spacer	£9.01	Add to
111	738-0839	bush oilite	£6.01	Add to
112	750-0503	SPACER	£3.33	Add to
113	712-0399	NUT-PROPEL	£6.73	Add to
114	710-0642	SCREW-HEX HD TAP 4-20 x 7.5	£3.68	Add to
115	731-1112	NO LONGER AVAILABLE	N/A	POA
116	710-1220	SCREW	£2.81	Add to
117	736-3034	NO LONGER AVAILABLE	N/A	POA
119	756-0554A	2.62 DIA PULLEY	£70.01	Add to
120	714-3009	SQUARE KEY	£3.33	Add to
121	710-0497	THREADED PIN	£3.70	Add to
122	736-0169	L. WASHER	£2.89	Add to
123	736-0329	L. WASHER	£3.26	Add to
124	17513637	BRACKET-BELT KEEPER 17513	£11.55	Add to
125	710-1237	SCREW SELF TAP	£3.00	Add to
126	751B213146	CASING CLAMP (OBSOLETE) (OBSOLETE)	N/A
127	736-0105	BELL WASHER	£3.33	Add to
128	712-3027	LOCK NUT	£2.79	Add to
129	736-0501	SPRING WASHER (RED)	£4.00	Add to
130	712-0324	HEX. INS L NUT	£3.69	Add to
131	746-0875	THROTTLE BOX BODY	£17.98	Add to
132	811-0185	CONTROL-THROTTLE	£29.81	Add to
133	710-0578	NO LONGER AVAILABLE	N/A	POA
25L	748-0188B	PAWL LH	£11.45	Add to
25R	748-0381	PAWL RH	£10.30	Add to
40.1	751-0675	MUFFLER GUARD	£14.62	Add to
40.2	710-1729	SCREW (MUFFLER GUARD)	£2.93	Add to
40.3	710-1730	SCREW (MUFFLER GUARD)	£2.45	Add to
40A	752B2171B1	ENGINE B&S QUATTRO 4.0 HP	£514.77	Add to
40A1	751B281857	ENGINE HOOD QUATTRO	£45.35	Add to
40A2	751B095225	SCREW 10-32:2. 320 HXWSH	£4.00	Add to
40A3	751B225250	MUFFLER PROTECTION	£46.34	Add to
40A4	710-1268	SCREW HEX WASHER HD TAPP	£3.26	Add to
40B	752B1753B1	ENGINE B&S QTM 4.5	N/A	POA
40B1	731-1396A	ENGINE HOOD	£62.98	Add to
40B2	710-1256	SCR:HL:#8-18:1.250:PANPHI	£8.53	Add to
40B3	751B224437	EXHAUST PROTECTION	£39.98	Add to
40B4	710-1268	SCREW HEX WASHER HD TAPP	£3.26	Add to
44A	720-0279	WING NUT	£2.99	Add to
48L	732-0647	SPRING-HDLE LATCH LH	£7.82	Add to
48R	732-0646	SPRING-HDLE LATCH RH	£8.32	Add to
57A	731-1103*	NO LONGER AVAILABLE	N/A	POA
73L	731-1111	NO LONGER AVAILABLE	N/A	POA
73R	731-1110	NO LONGER AVAILABLE	N/A	POA
75A	731-1107	COVER-HARDTOP EURO	£78.26	Add to
81A	754-0436	BELT-V	£36.89	Add to
83A	736-0700	FLAT WASHER	£2.63	Add to
86A	746-1069	BRAKE CABLE (OBSOLETE) (OBSOLETE)	N/A
