MTD007763

Parts list

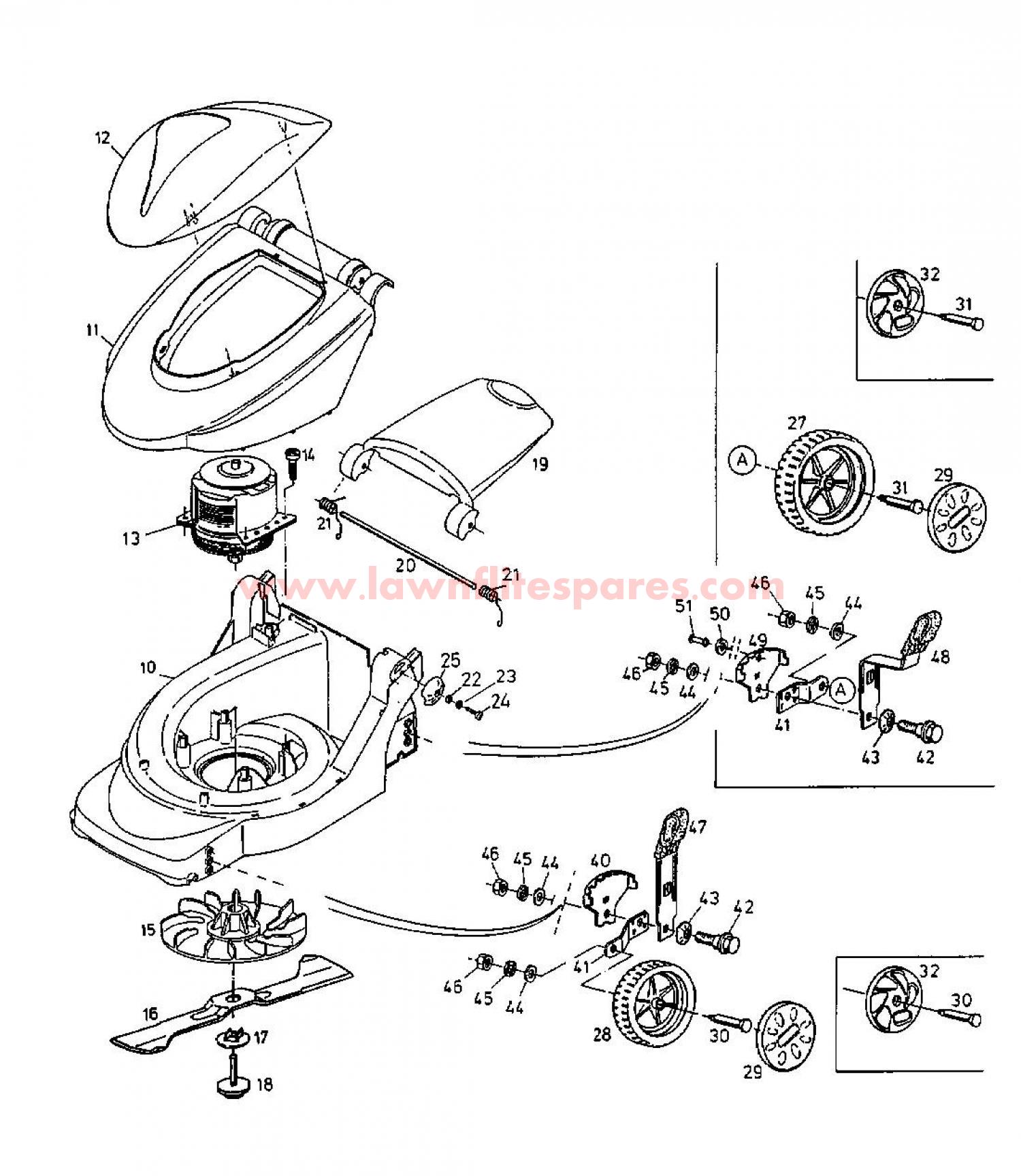

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
009710-1757NO LONGER AVAILABLEN/A POA
010731-1788638NO LONGER AVAILABLEN/A POA
011731-1790638PROTECTION COVER£31.99 Add to
012731-1792637E-MOTOR SHROUD MTD BLACK 637£17.48 Add to
013724-0299ELECTRIC ENGINE 724-0275A£167.02 Add to
014710-1756SCREW-TORX HD 5/16-18 000.02.498£6.25 Add to
015631-0101BLADE HUB ASM£26.91 Add to
016742-0800MOWER BLADE£29.61 Add to
017782-7050LOCK PLATE£8.22 Add to
018624-0075BOLT ASM:BLADE:T-DECK:ELEC£10.13 Add to
020747-1003ROD£3.48 Add to
021732-0876SPRING£3.39 Add to
022736-0697Washer 24.6486.13£2.79 Add to
023736-0698Spring washer 24.8191.09£4.11 Add to
024710-1350NO LONGER AVAILABLEN/A POA
025731-1789638CAP MELON YELLOW£3.48 Add to
027734-1877637WHEEL DIA 185 mm£16.26 Add to
028734-04202WHL:COMPL:160mm£21.68 Add to
029720-0330674HUB CAP£5.63 Add to
029720-0330662HUB CAP£4.02 Add to
030738-1026NO LONGER AVAILABLEN/A POA
031738-1027NO LONGER AVAILABLEN/A POA
032720-0343HUB CAP, WITHOUT LOGO, BLACK 720-0343637£6.11 Add to
040782-0607PLT:ADJ:HGT T-DECK£5.42 Add to
041782-0617APIVOT ARM£15.40 Add to
042738-1030AScrew 079.29.178£9.23 Add to
043736-0651NO LONGER AVAILABLEN/A POA
044736-0701WASH:FLAT:8.4x24x2.00 DIN 9021£3.80 Add to
045736-0708Lockwasher 24.8190.18£2.72 Add to
046712-0690NUT:HEX:M8-1.25 DIN 934£2.72 Add to
047682-0271ALVR ASM:HGT:L0-WHL 079.29.735£10.83 Add to
048682-0231ADJUSTING LEVER-REAR£9.93 Add to
049782-0614INDEX PLATE£6.94 Add to
050736-0691NO LONGER AVAILABLEN/A POA
051000.05.009SCREW£3.05 Add to
